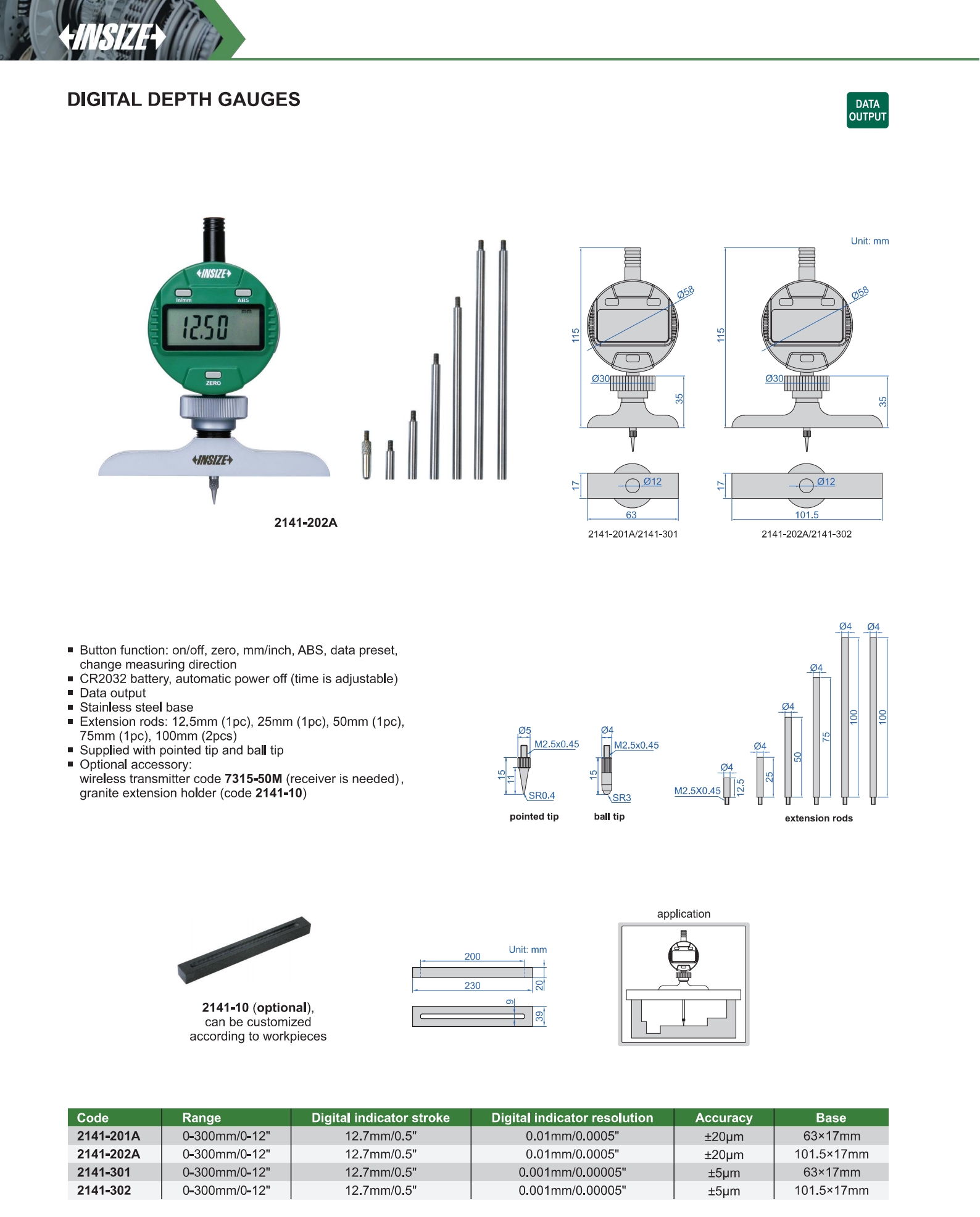

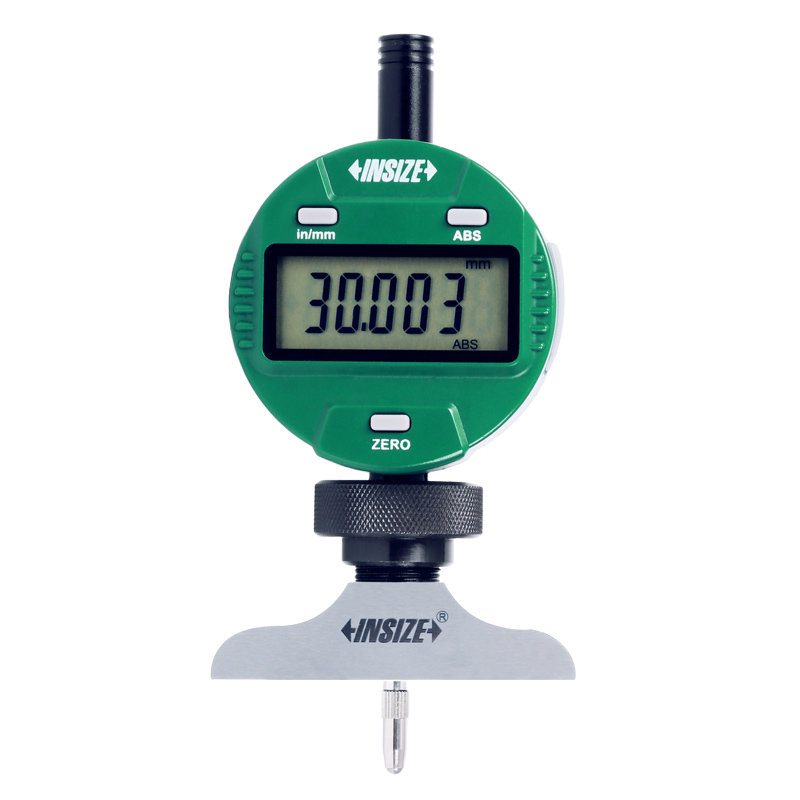

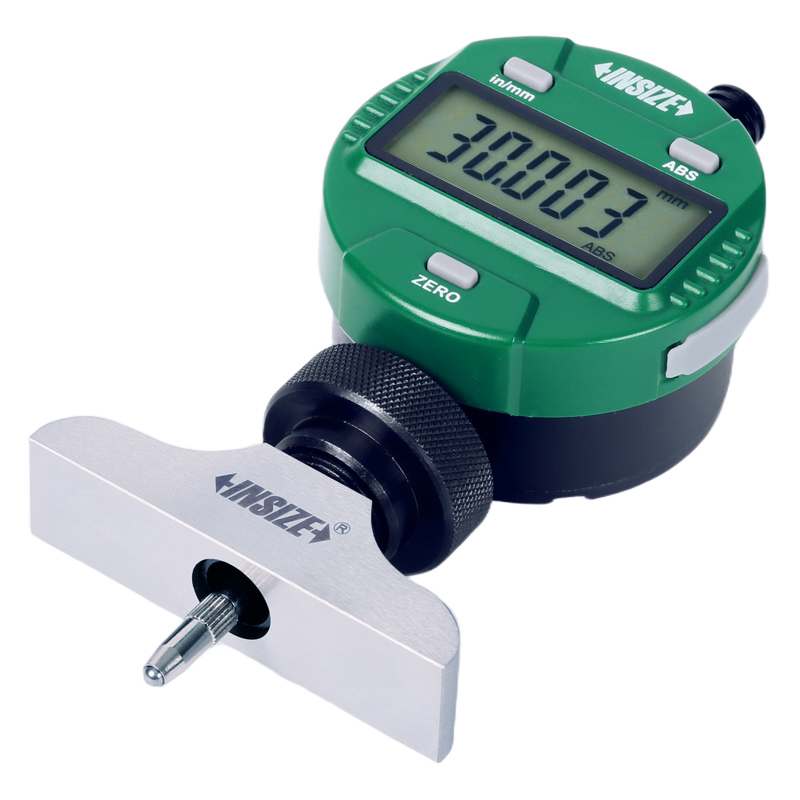

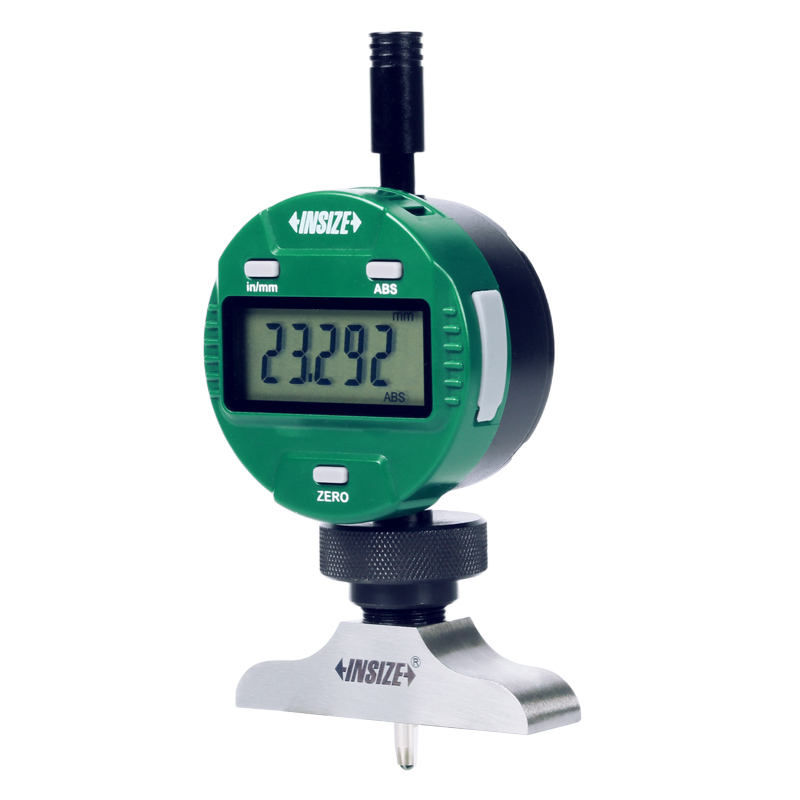

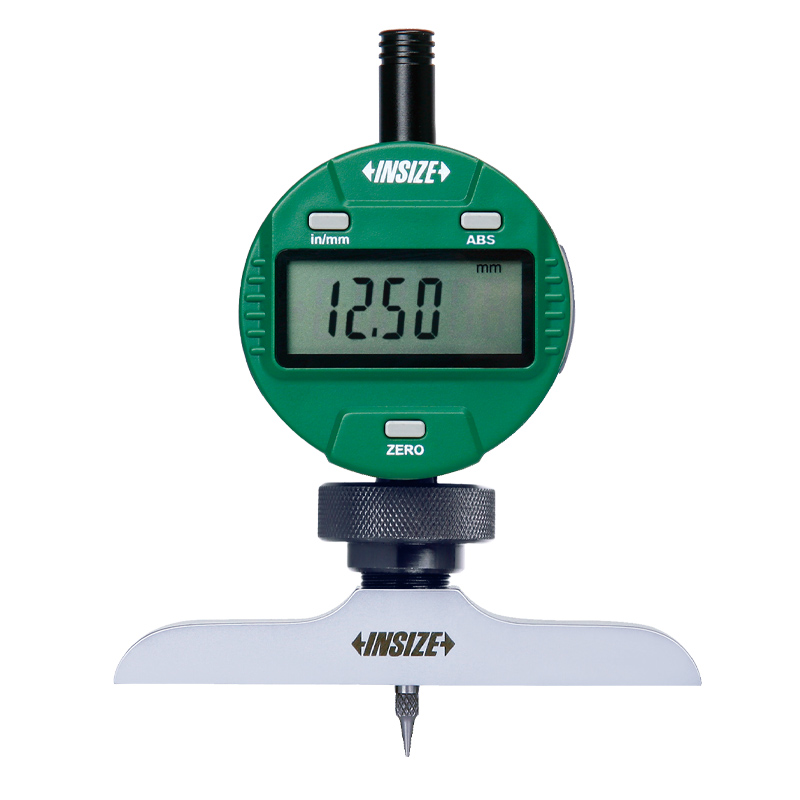

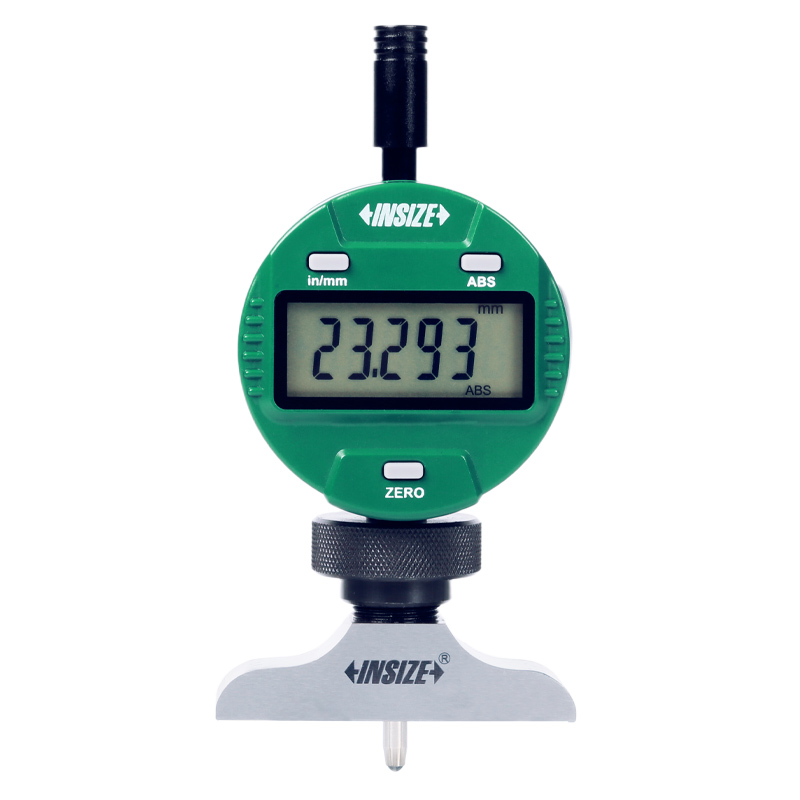

Digital Depth Gauges
Code: 2141
Button function: on/off, zero, mm/inch, ABS, data preset, change measuring direction
CR2032 battery, automatic power off (time is adjustable)
Data output
Stainless steel base
Extension rods: 12.5mm (1pc), 25mm (1pc), 50mm (1pc), 75mm (1pc), 100mm (2pcs)
Supplied with pointed tip and ball tip
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 2141-201A | 0-300mm/0-12" | ±20µm | 0.01mm/0.0005" | with data interface |
| 2141-202A | 0-300mm/0-12" | ±20µm | 0.01mm/0.0005" | with data interface |
| 2141-301 | 0-300mm/0-12" | ±5µm | 0.001mm/0.00005" | with data interface |
| 2141-302 | 0-300mm/0-12" | ±5µm | 0.001mm/0.00005" | with data interface |
