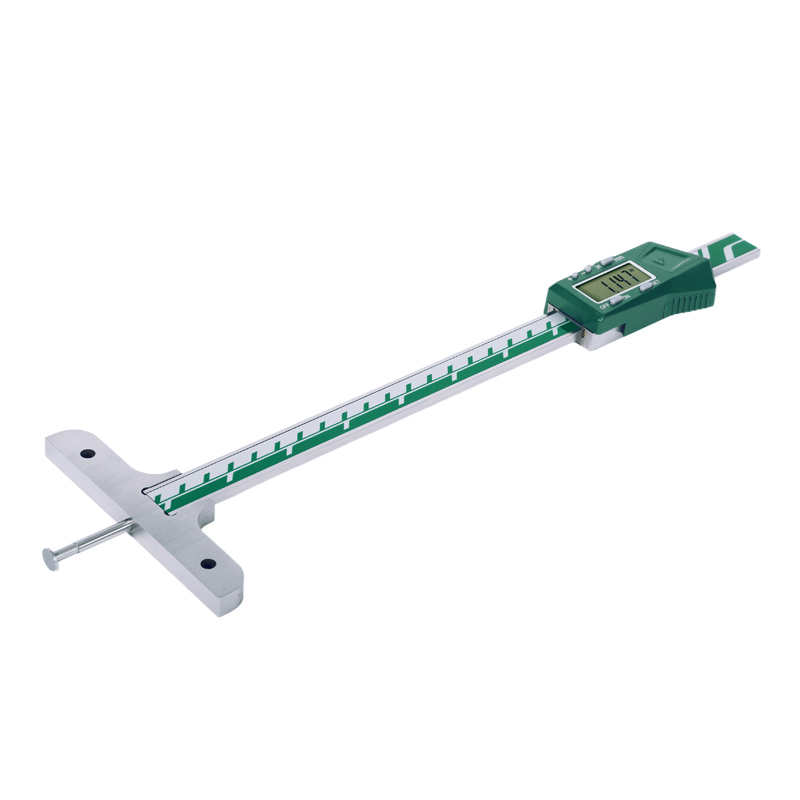

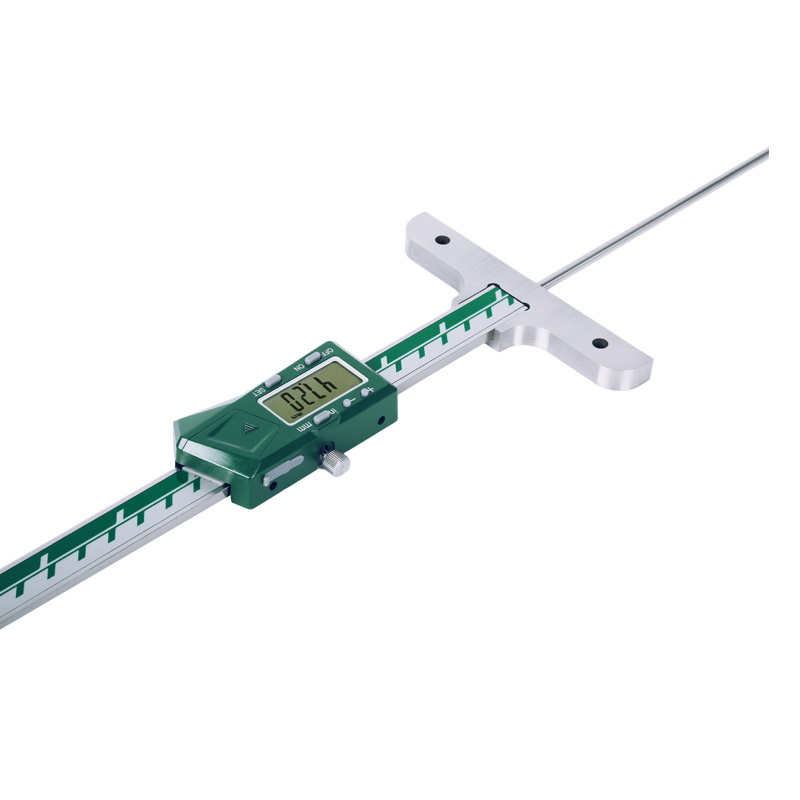

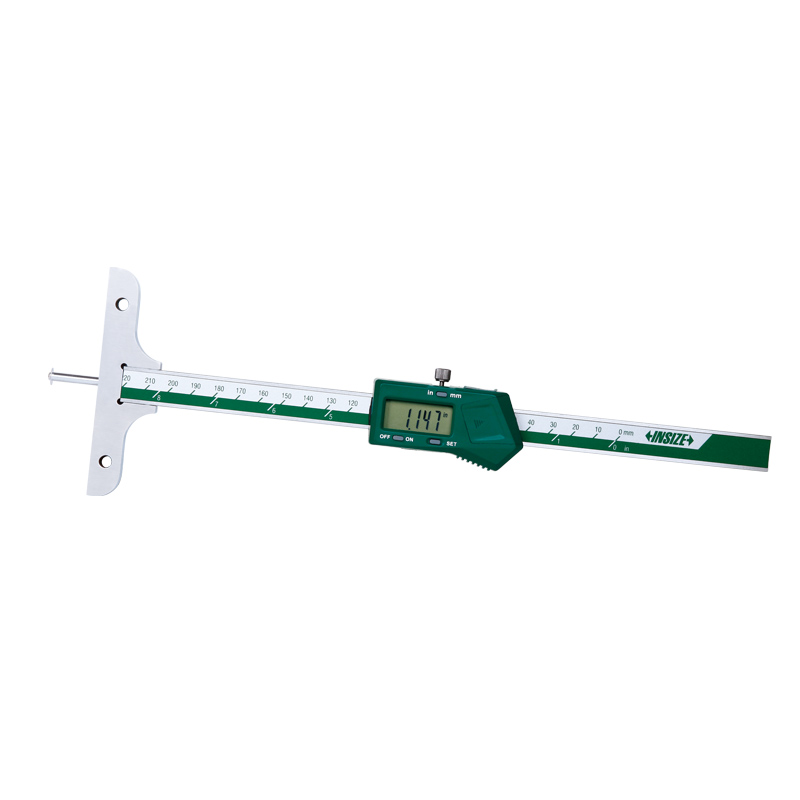

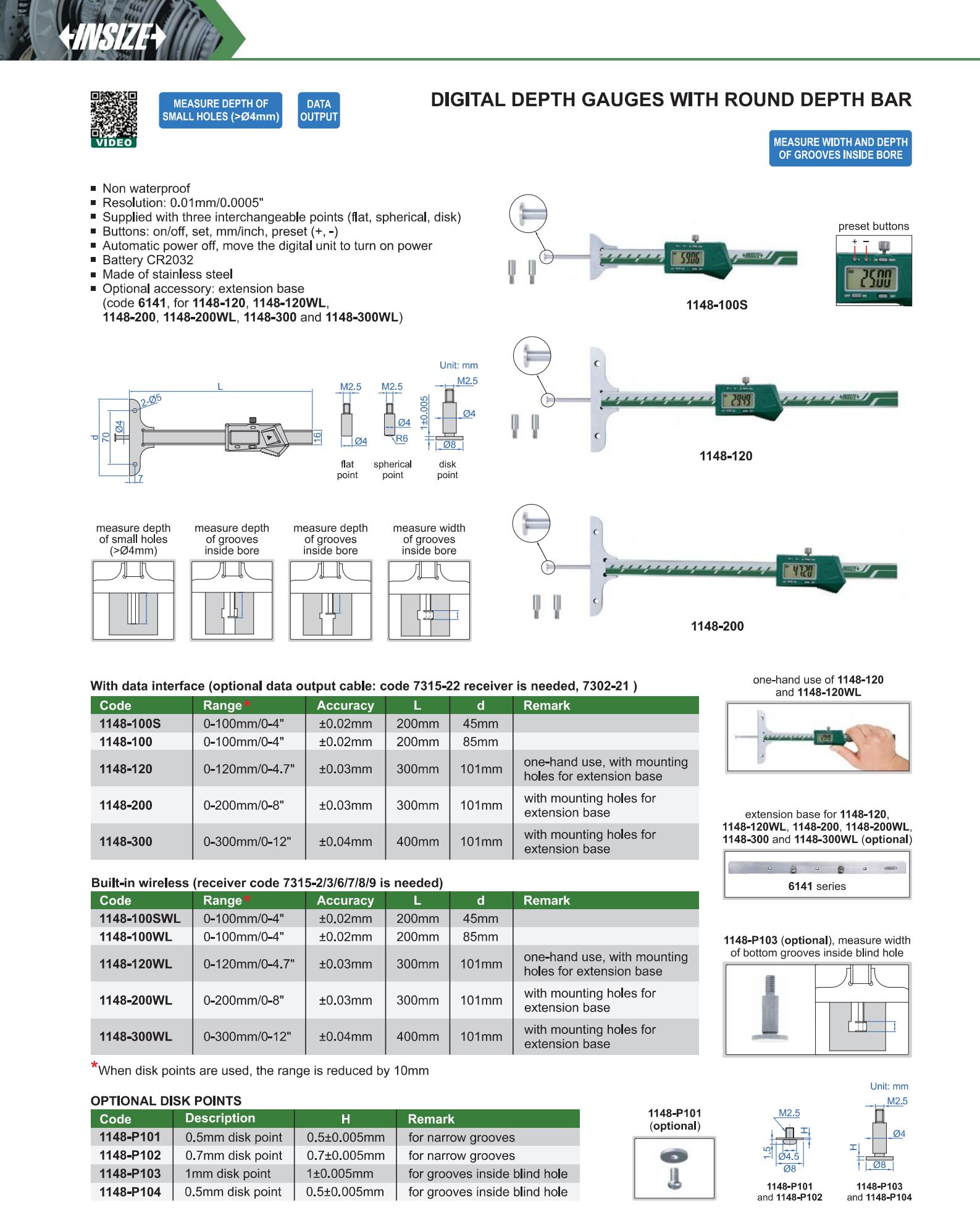

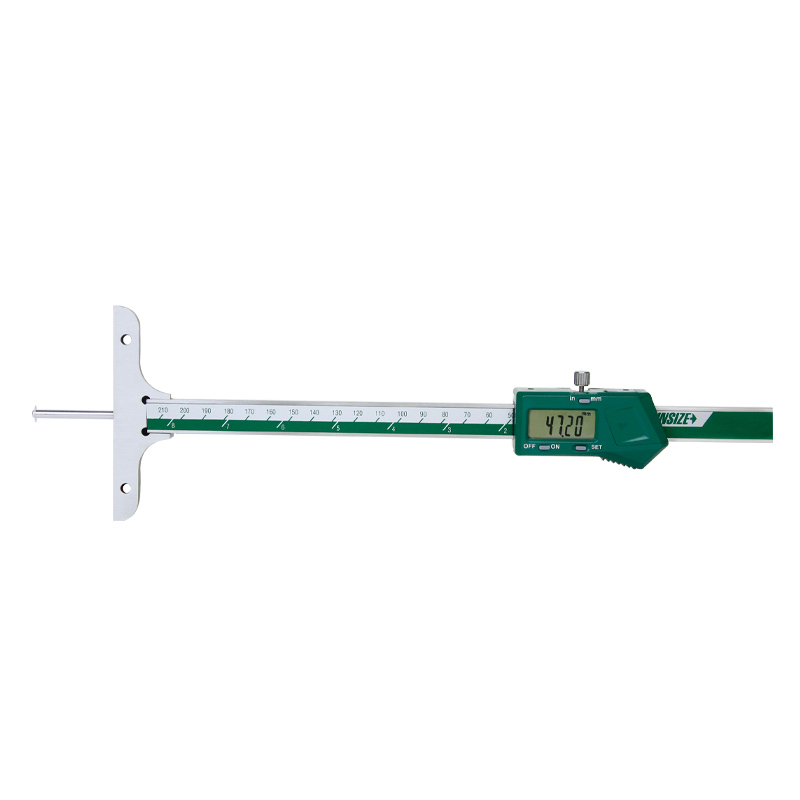

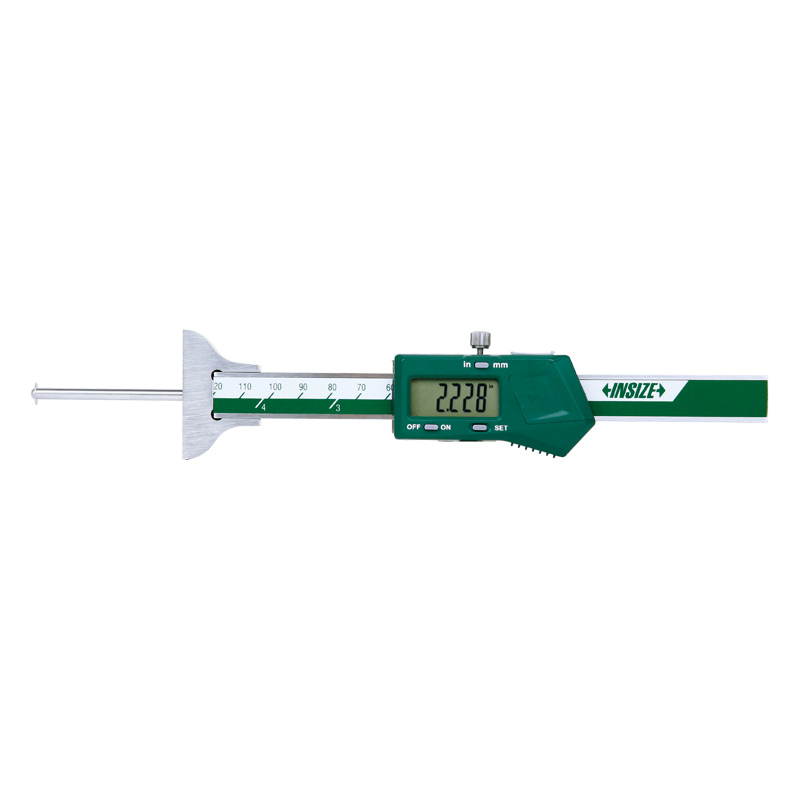

Digital Depth Gauges With Round Depth Bar
Code: 1148
Non waterproof
Supplied with three interchangeable points (flat, spherical, disk)
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1148-100S | 0-100mm/0-4" | ±0.02mm | 0.01mm/0.0005" | with data interface |
| 1148-100 | 0-100mm/0-4" | ±0.02mm | 0.01mm/0.0005" | with data interface |
| 1148-120 | 0-120mm/0-4.7" | ±0.03mm | 0.01mm/0.0005" | with data interface |
| 1148-200 | 0-200mm/0-8" | ±0.03mm | 0.01mm/0.0005" | with data interface |
| 1148-300 | 0-300mm/0-12" | ±0.04mm | 0.01mm/0.0005" | with data interface |
| 1148-100SWL | 0-100mm/0-4" | ±0.02mm | 0.01mm/0.0005" | built-in wireless |
| 1148-100WL | 0-100mm/0-4" | ±0.02mm | 0.01mm/0.0005" | built-in wireless |
| 1148-120WL | 0-120mm/0-4.7" | ±0.03mm | 0.01mm/0.0005" | built-in wireless |
| 1148-200WL | 0-200mm/0-8" | ±0.03mm | 0.01mm/0.0005" | built-in wireless |
| 1148-300WL | 0-300mm/0-12" | ±0.04mm | 0.01mm/0.0005" | built-in wireless |
