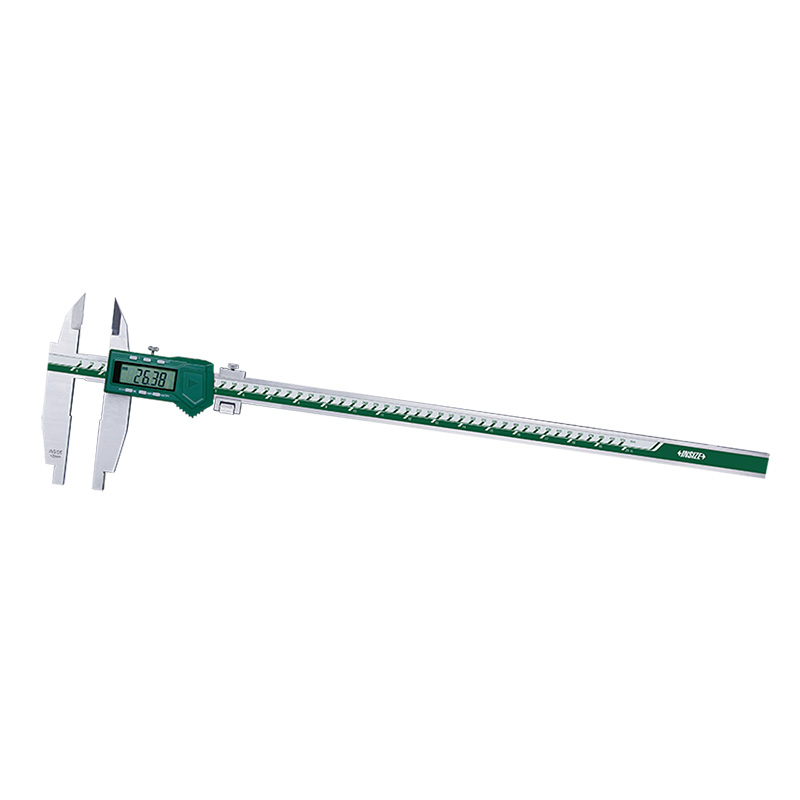

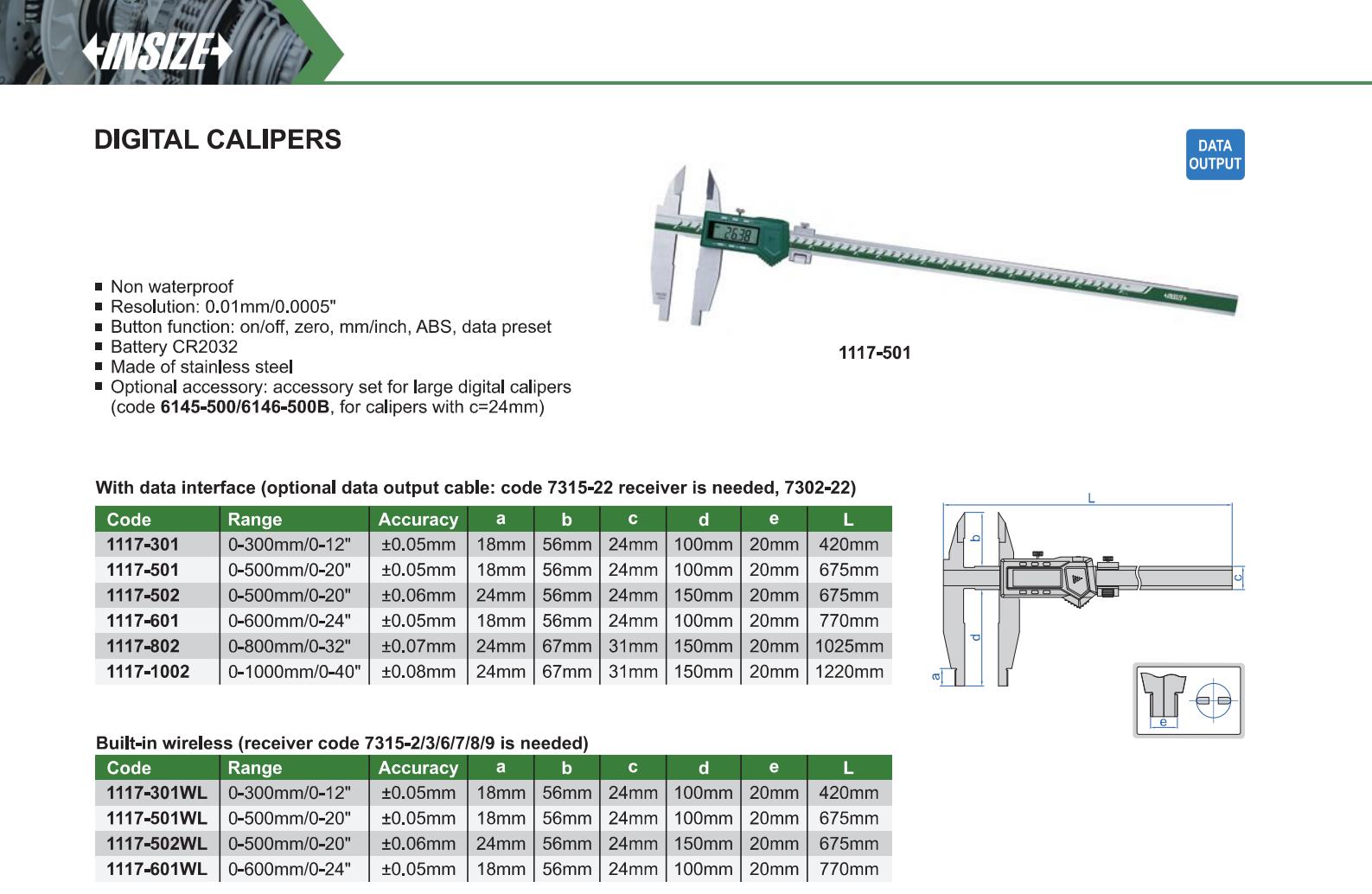

Digital Calipers
Code: 1117
Non waterproof
Button function: on/off, zero, mm/inch, ABS, data preset
Battery CR2032
Made of stainless steel
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1117-301 | 0-300mm/0-12" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1117-501 | 0-500mm/0-20" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1117-502 | 0-500mm/0-20" | ±0.06mm | 0.01mm/0.0005" | with data interface |
| 1117-601 | 0-600mm/0-24" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1117-802 | 0-800mm/0-32" | ±0.07mm | 0.01mm/0.0005" | with data interface |
| 1117-1002 | 0-1000mm/0-40" | ±0.08mm | 0.01mm/0.0005" | with data interface |
| 1117-301WL | 0-300mm/0-12" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
| 1117-501WL | 0-500mm/0-20" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
| 1117-502WL | 0-500mm/0-20" | ±0.06mm | 0.01mm/0.0005" | built-in wireless |
| 1117-601WL | 0-600mm/0-24" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
