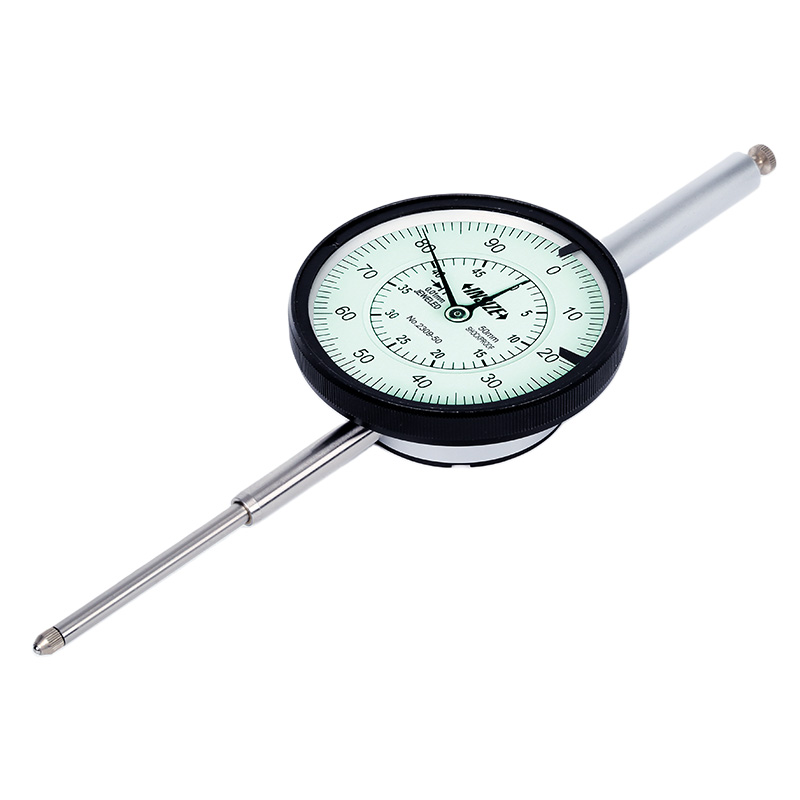

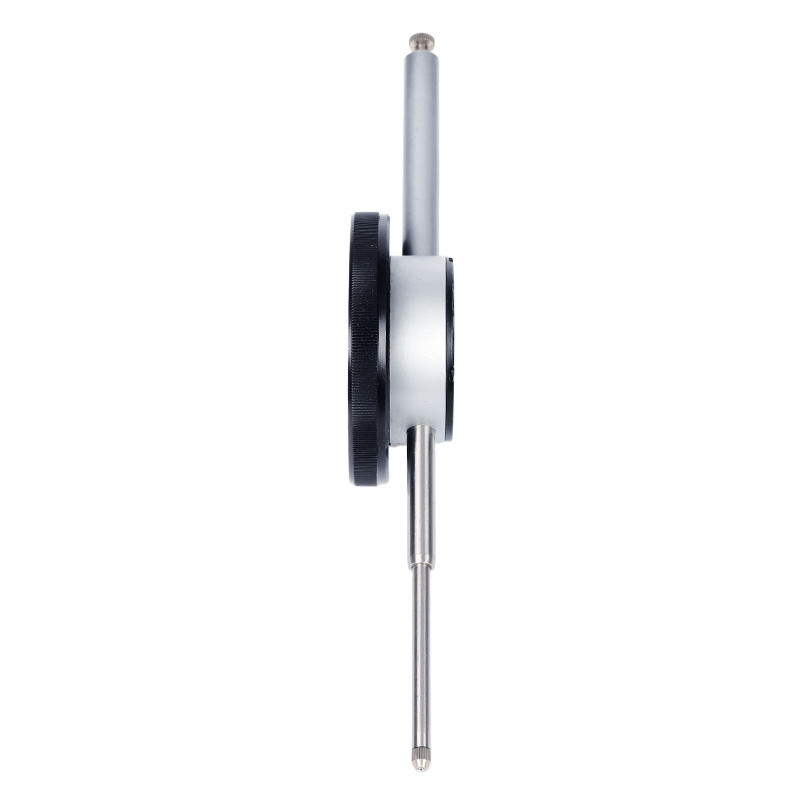

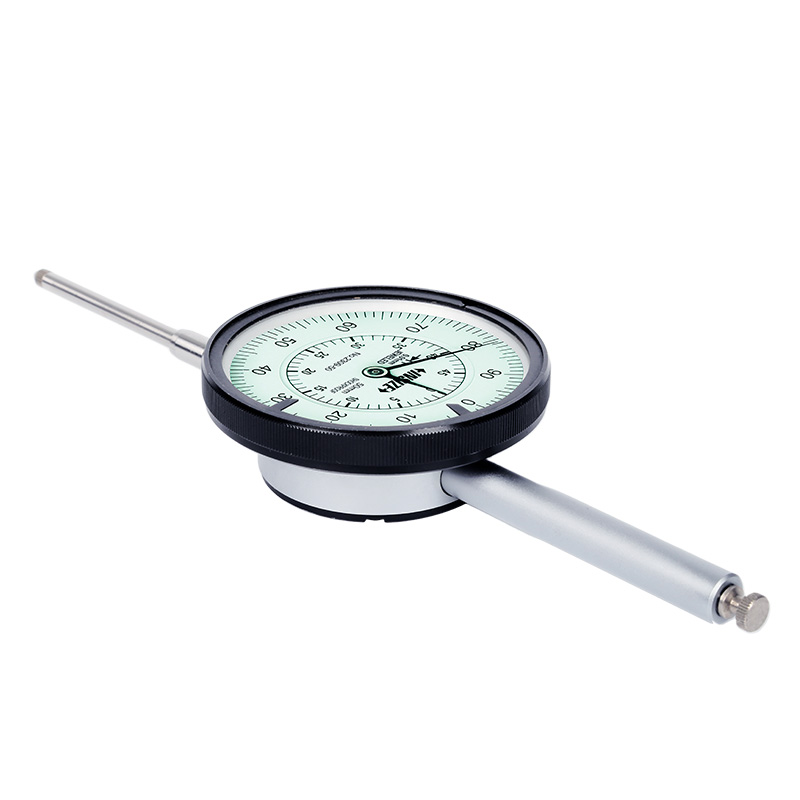

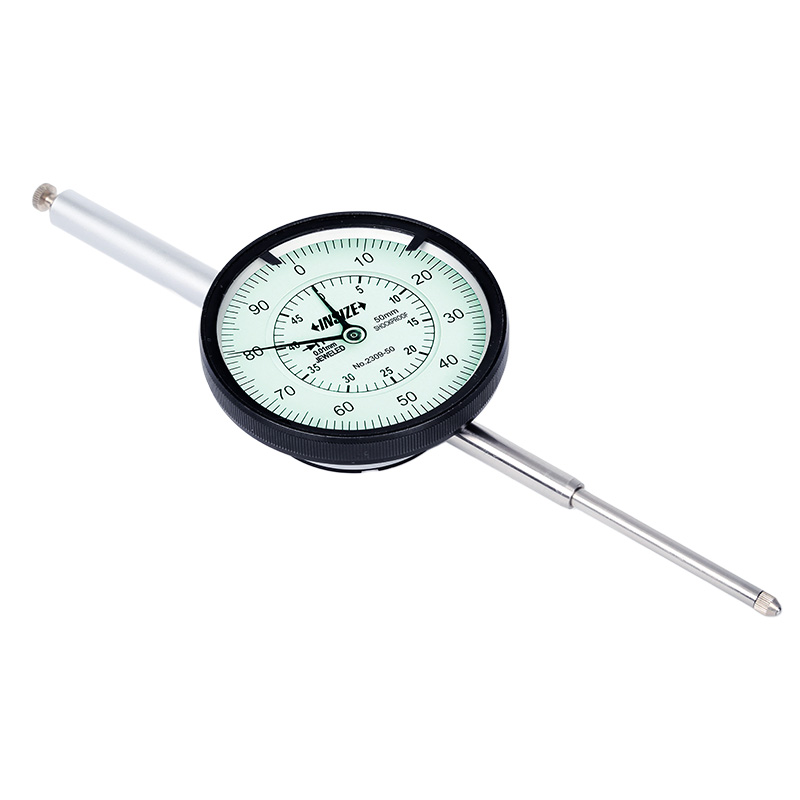

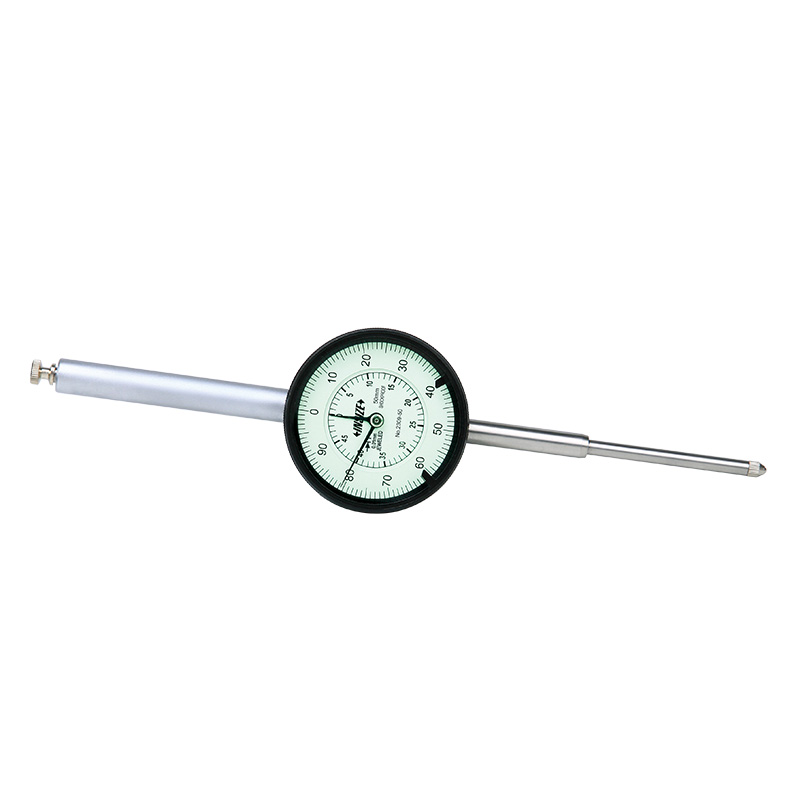

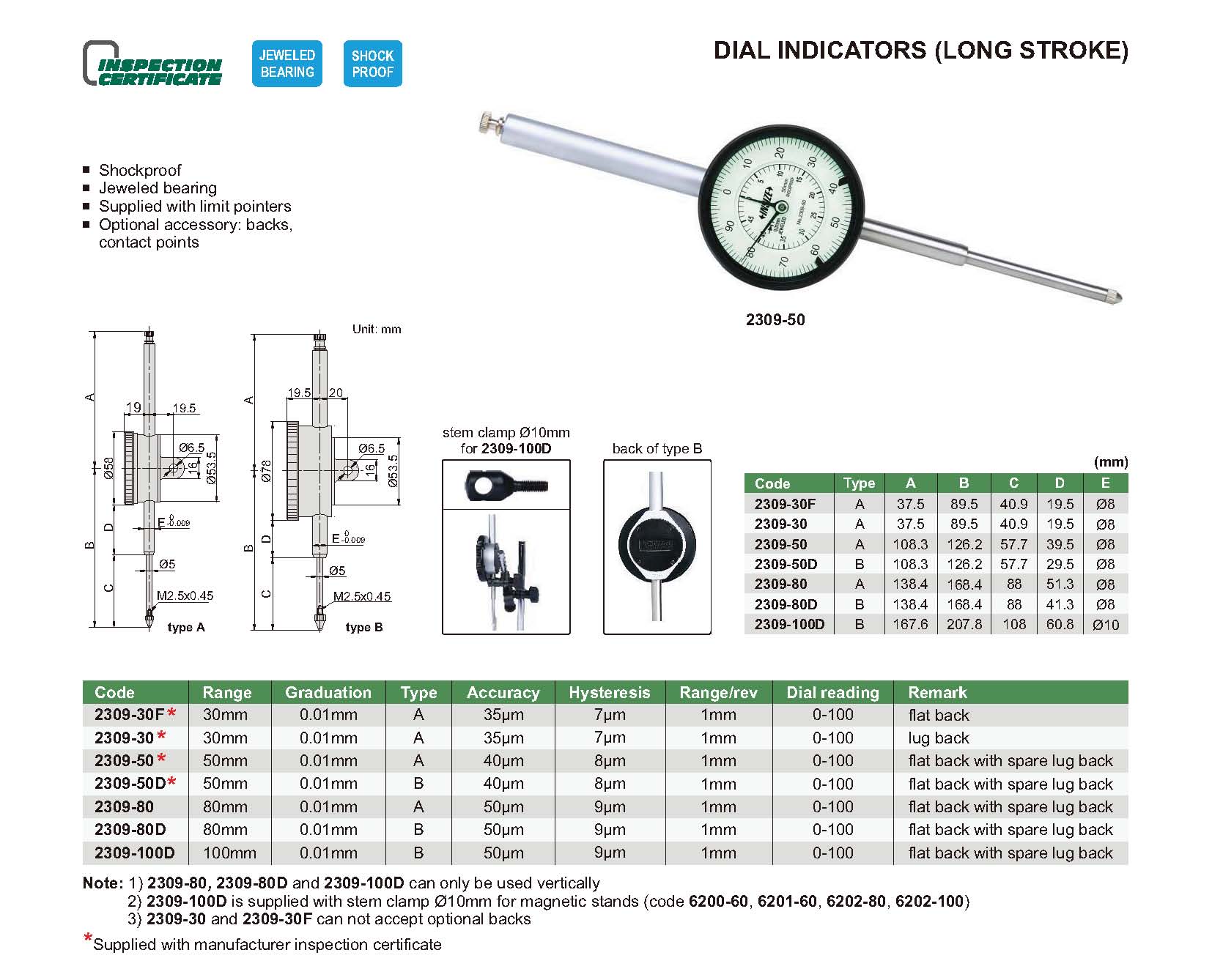

Dial Indicators (Long Stroke)
Code: 2309
Dial reading: 0-100
Shockproof
Jeweled bearing
Supplied with limit pointers
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 2309-30F | 30mm | 35µm | 0.01mm |
| 2309-30 | 30mm | 35µm | 0.01mm |
| 2309-50 | 50mm | 40µm | 0.01mm |
| 2309-50D | 50mm | 40µm | 0.01mm |
| 2309-80 | 80mm | 50µm | 0.01mm |
| 2309-80D | 80mm | 50µm | 0.01mm |
| 2309-100D | 100mm | 50µm | 0.01mm |
