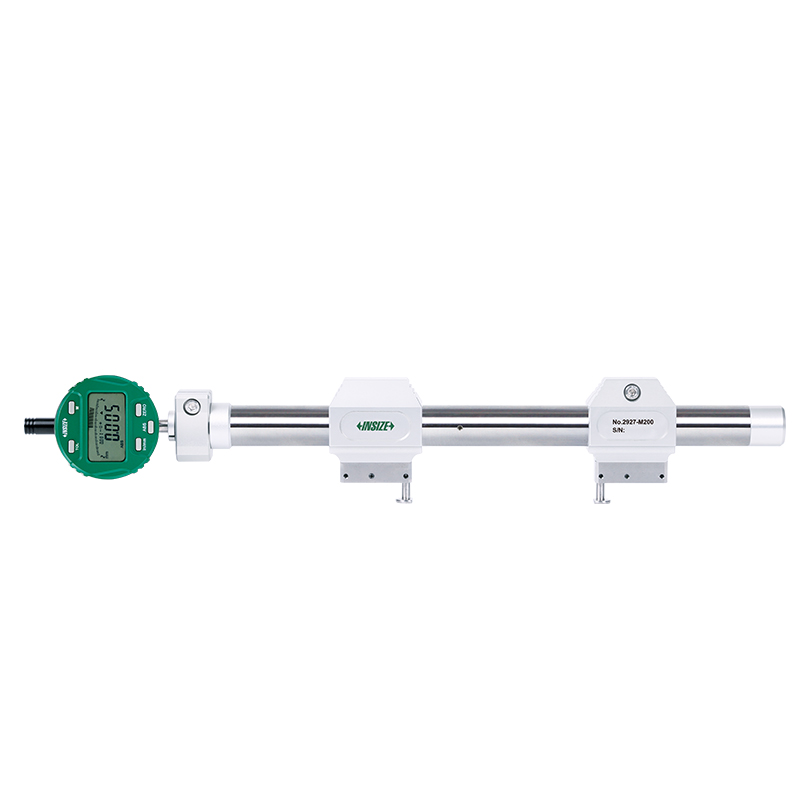

Universal Comparison Gauge
Code: 2927
Measure outer diameter, inside diameter and hole center distance
Total range of movable point: 10mm, effective range of movable point: ±2mm
Optional accessory: gauge block accessory (code 6881), gauge block holder (code 6886)
| Code | Accuracy | Repeatability | Range of external diameter | Range of internal diameter |
|---|---|---|---|---|
| 2927-M200 | ±5µm | 2µm | 0-200mm/0-8" | 30-250mm/1.2"-10" |

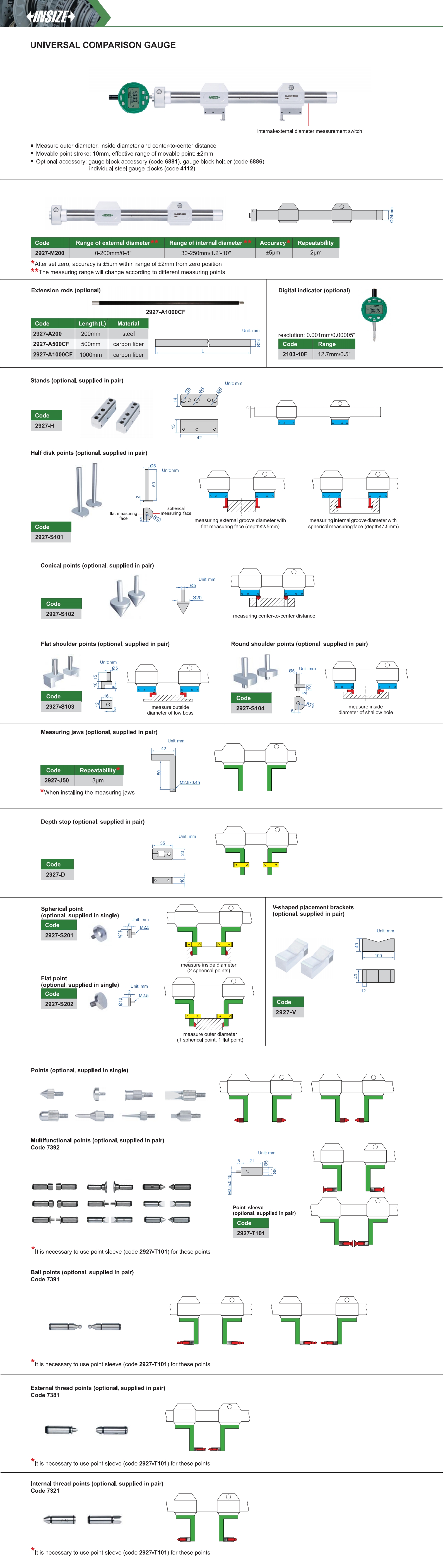

View the complete
product specifications
