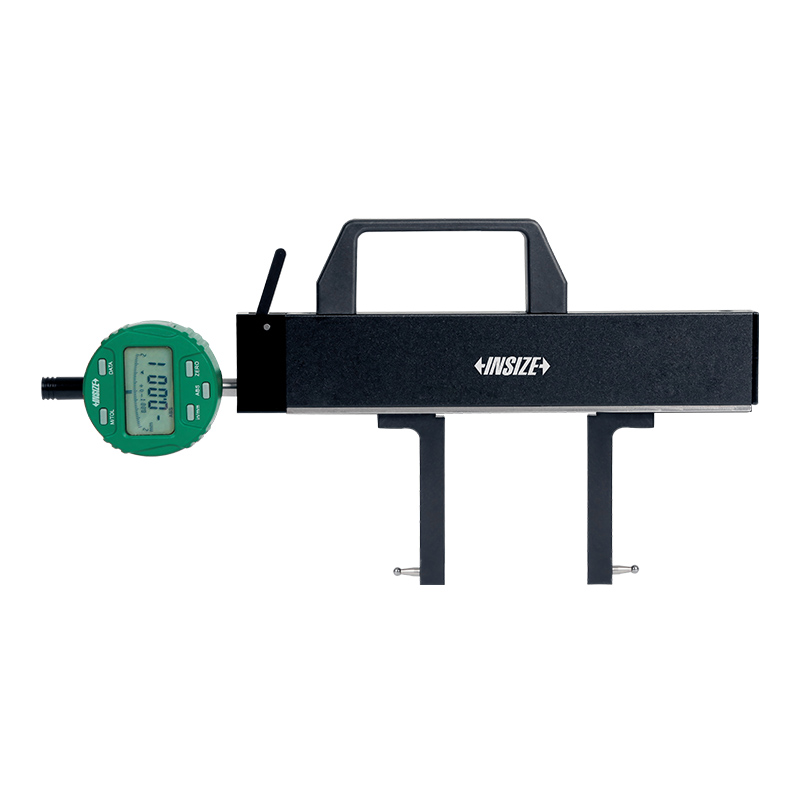

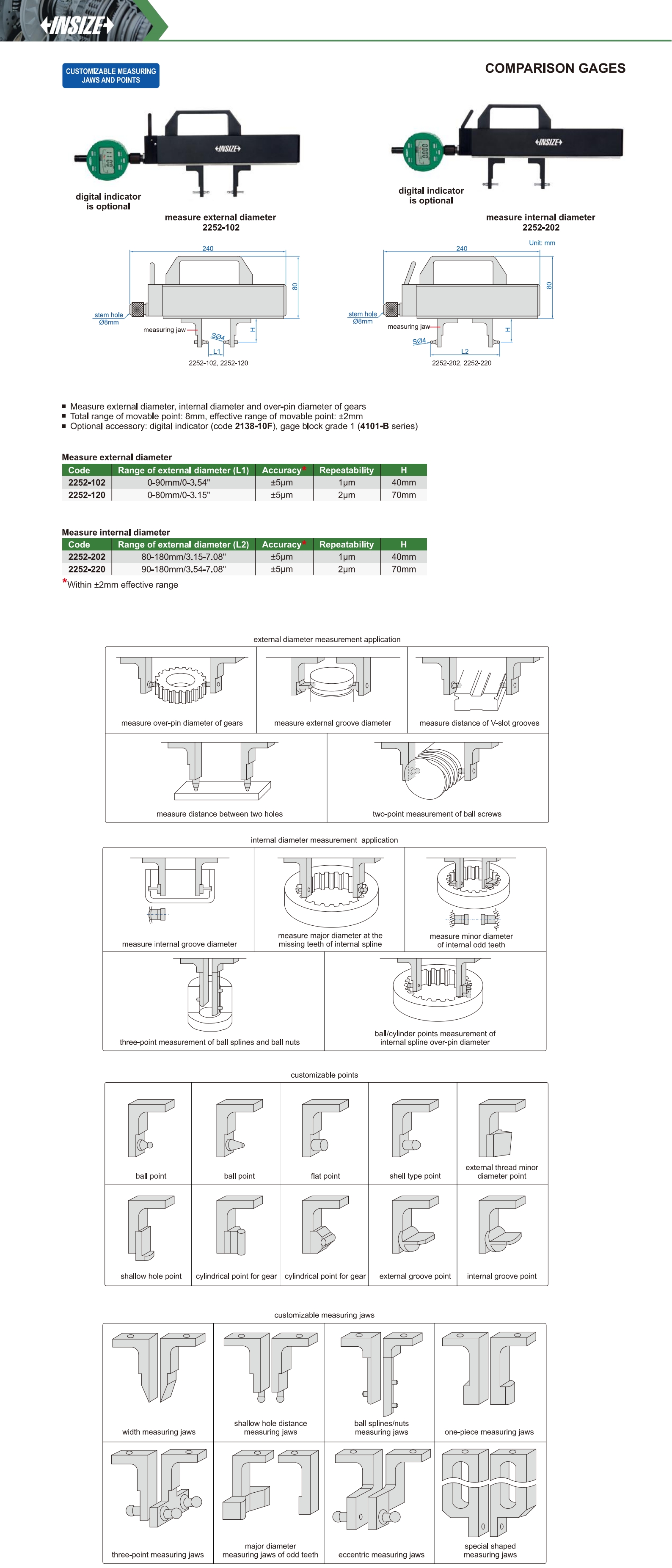

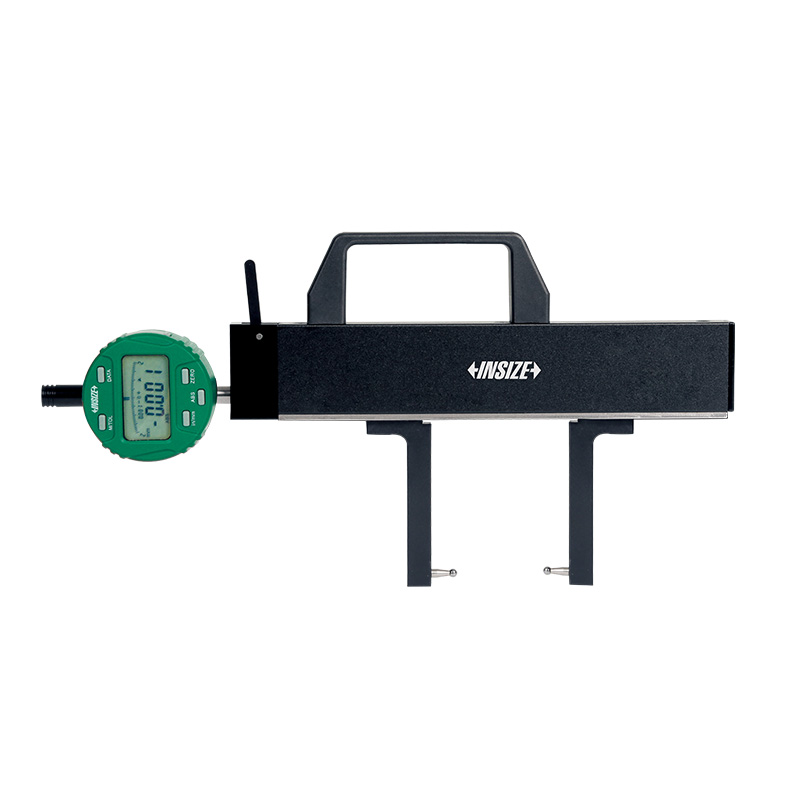

Comparison Gauges
Code: 2252
Measure external diameter, internal diameter and over-pin diameter of gears
Total range of movable point: 8mm, effective range of movable point: ±1mm
Optional accessory: digital indicator (code 2138-10F), gauge block grade 1 (4101-B series)
| Code | Accuracy | Repeatability | Range of external diameter | Range of internal diameter |
|---|---|---|---|---|
| 2252-102 | ±5μm | 2μm | 0-90mm/0-3.54" | — |
| 2252-120 | ±5μm | 2μm | 0-80mm/0-3.15" | — |
| 2252-202 | ±5μm | 2μm | — | 40-145mm/1.58-5.71" |
| 2252-220 | ±5μm | 2μm | — | 55-150mm/2.17-5.91" |
