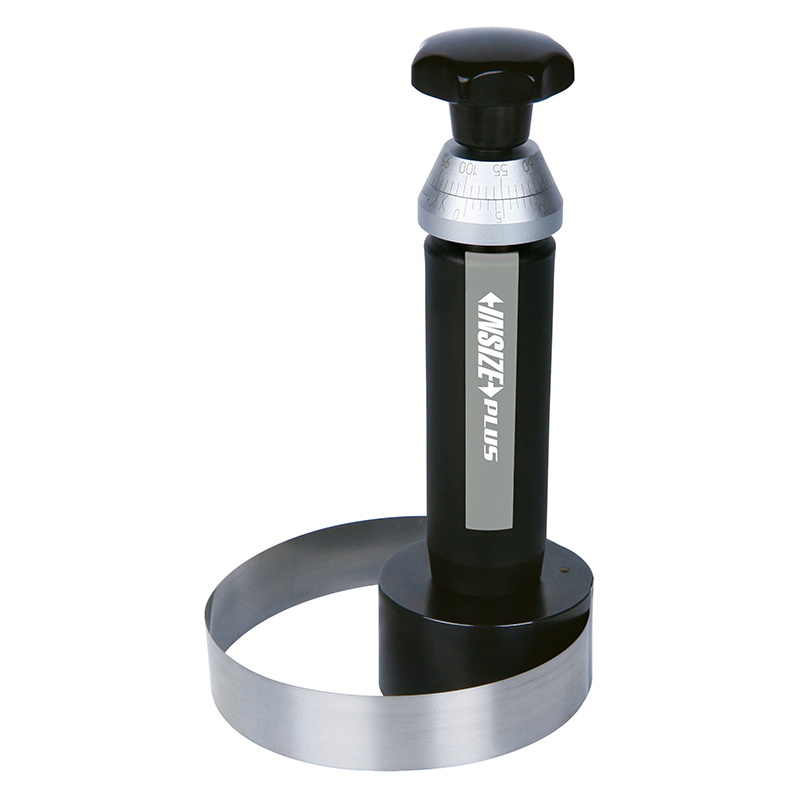

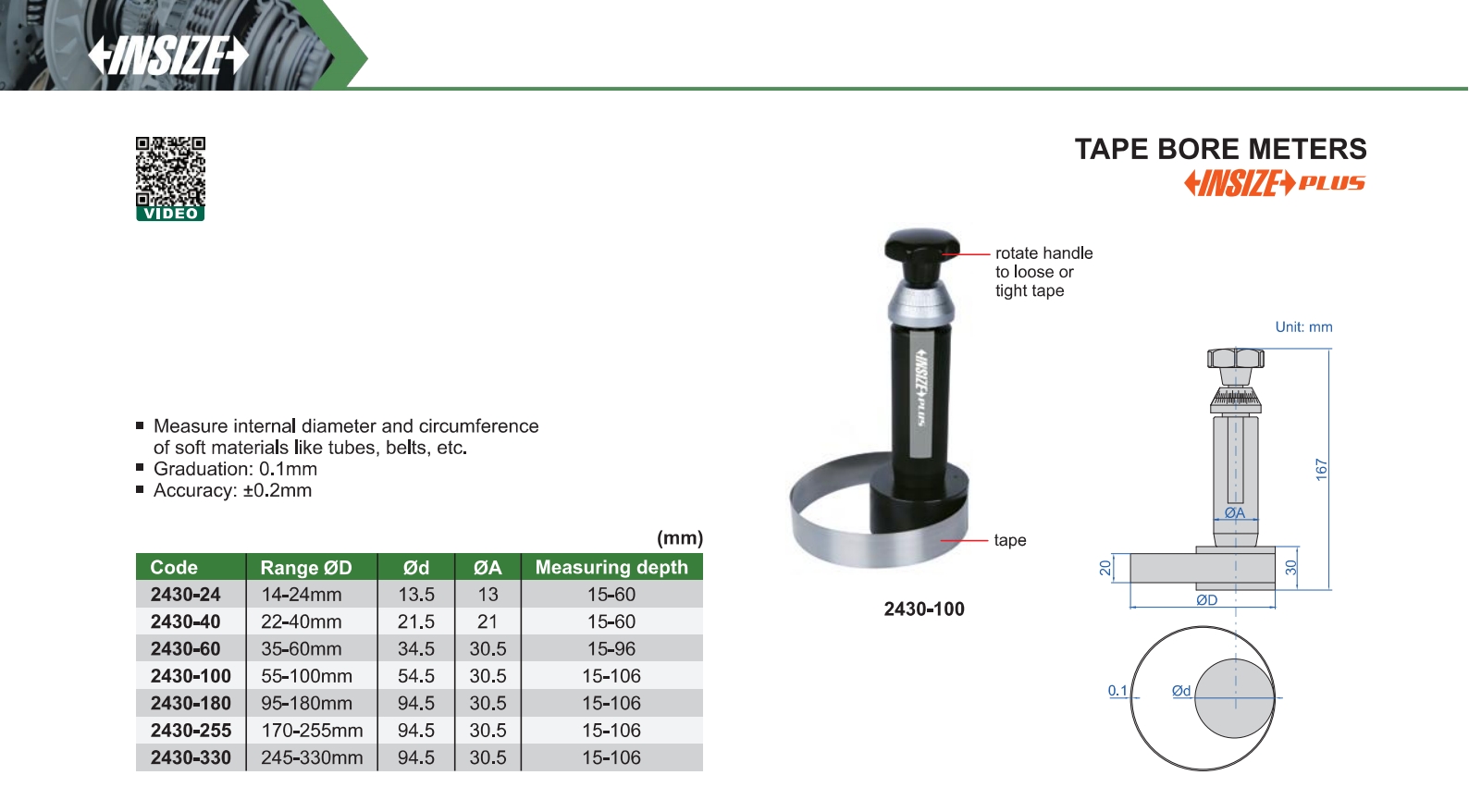

Tape Bore Meters
Code: 2430
Measure internal diameter and circumference of soft materials like tubes, belts, etc.
| Code | Accuracy | Graduation | Diameter range |
|---|---|---|---|
| 2430-24 | ±0.2mm | 0.1mm | Ø14-24mm |
| 2430-40 | ±0.2mm | 0.1mm | Ø22-40mm |
| 2430-60 | ±0.2mm | 0.1mm | Ø35-60mm |
| 2430-100 | ±0.2mm | 0.1mm | Ø55-100mm |
| 2430-180 | ±0.2mm | 0.1mm | Ø95-180mm |
| 2430-255 | ±0.2mm | 0.1mm | Ø170-255mm |
| 2430-330 | ±0.2mm | 0.1mm | Ø245-330mm |
