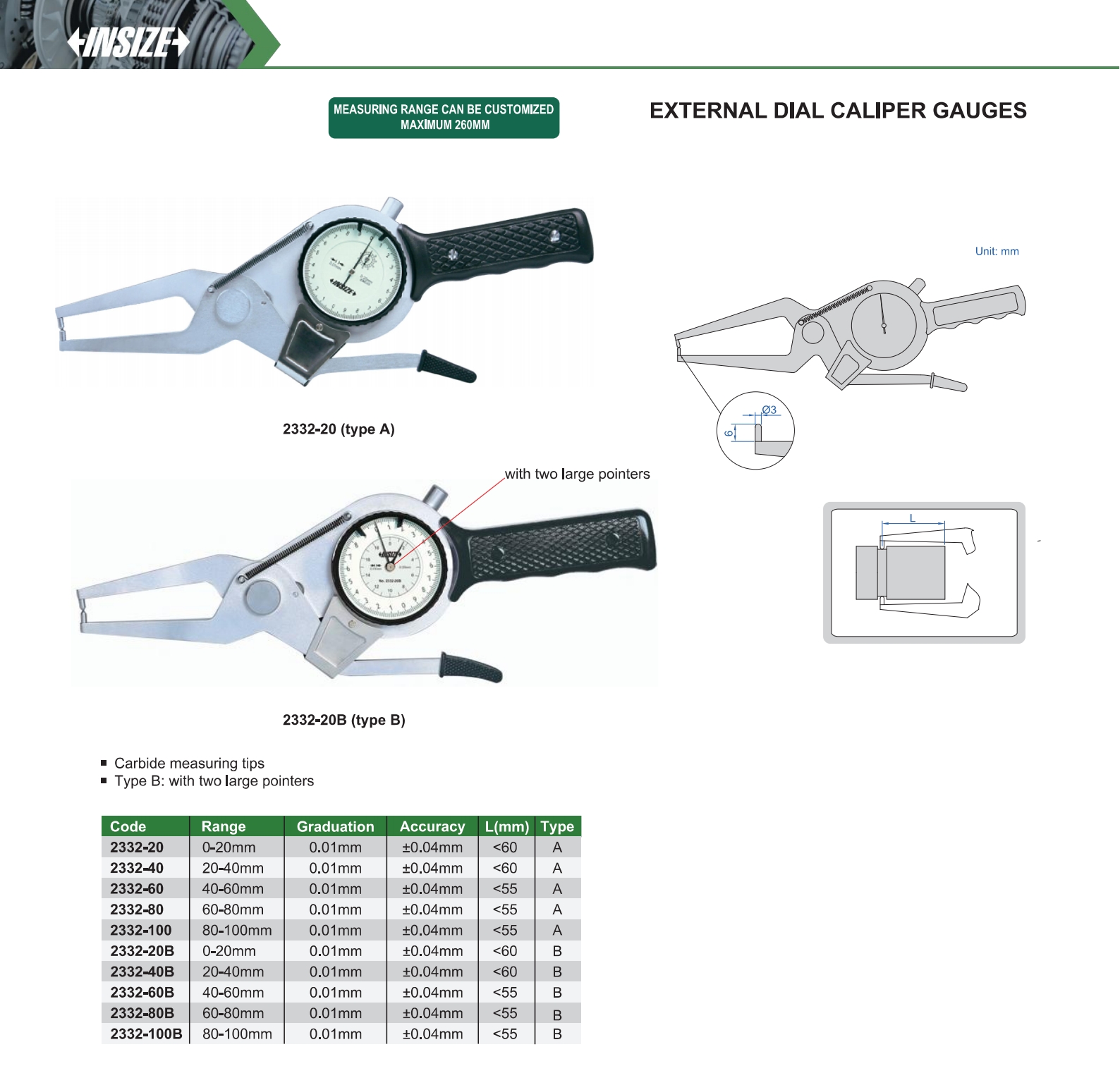

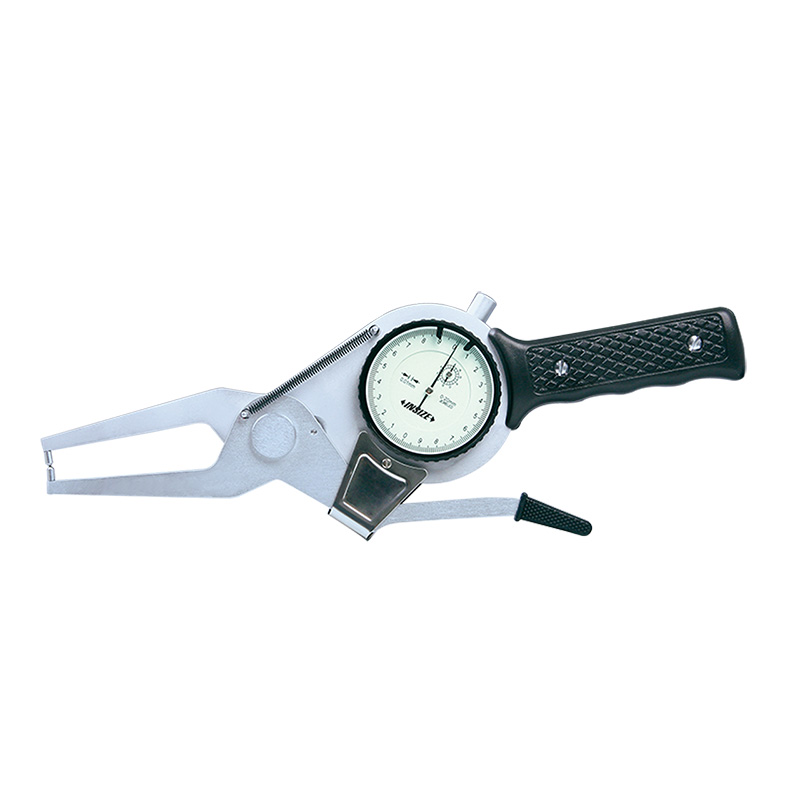

External Dial Caliper Gauges
Code: 2332
Carbide measuring tips
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 2332-20 | 0-20mm | ±0.04mm | 0.01mm |
| 2332-40 | 20-40mm | ±0.04mm | 0.01mm |
| 2332-60 | 40-60mm | ±0.04mm | 0.01mm |
| 2332-80 | 60-80mm | ±0.04mm | 0.01mm |
| 2332-100 | 80-100mm | ±0.04mm | 0.01mm |
| 2332-20B | 0-20mm | ±0.04mm | 0.01mm |
| 2332-40B | 20-40mm | ±0.04mm | 0.01mm |
| 2332-60B | 40-60mm | ±0.04mm | 0.01mm |
| 2332-80B | 60-80mm | ±0.04mm | 0.01mm |
| 2332-100B | 80-100mm | ±0.04mm | 0.01mm |
