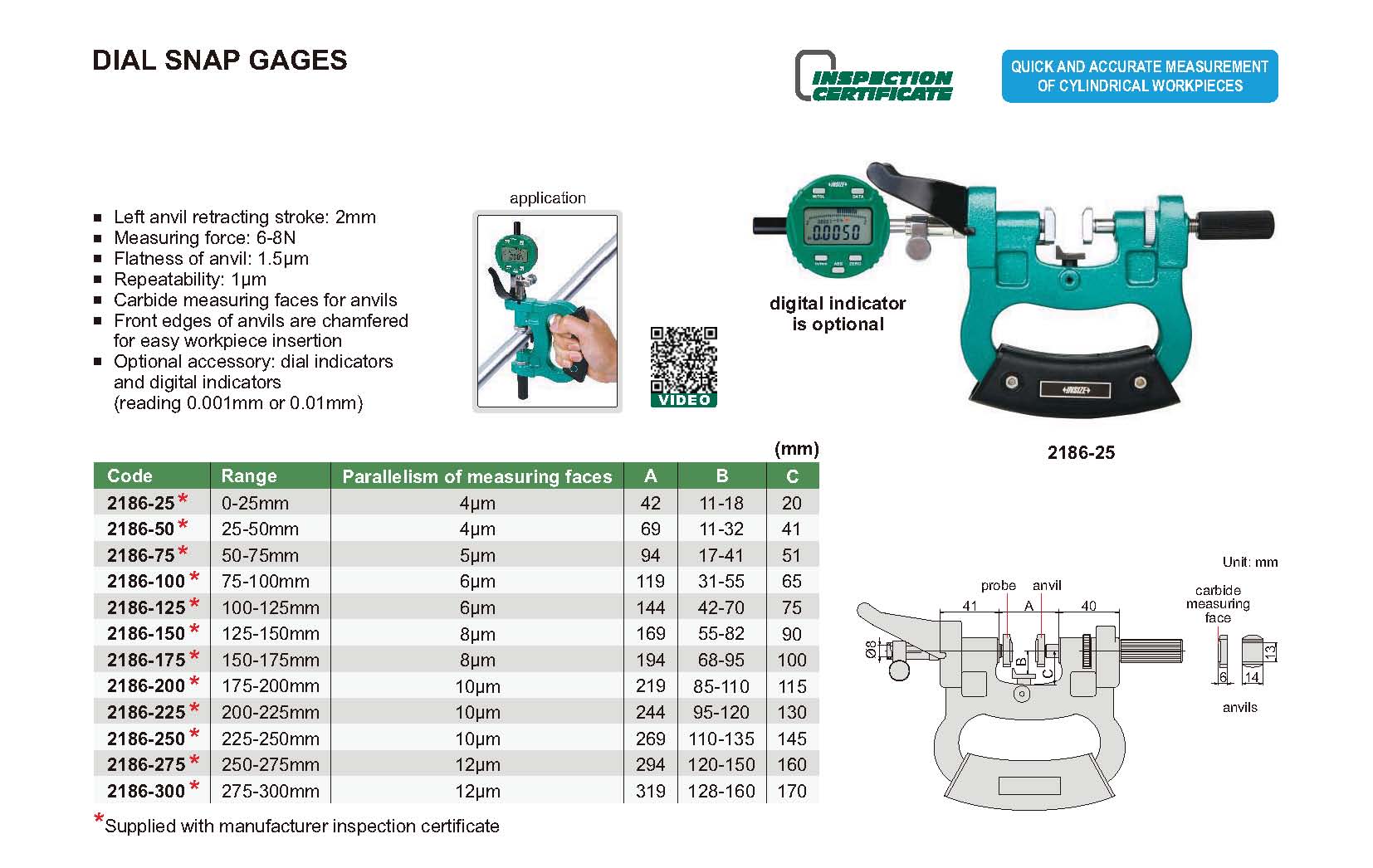

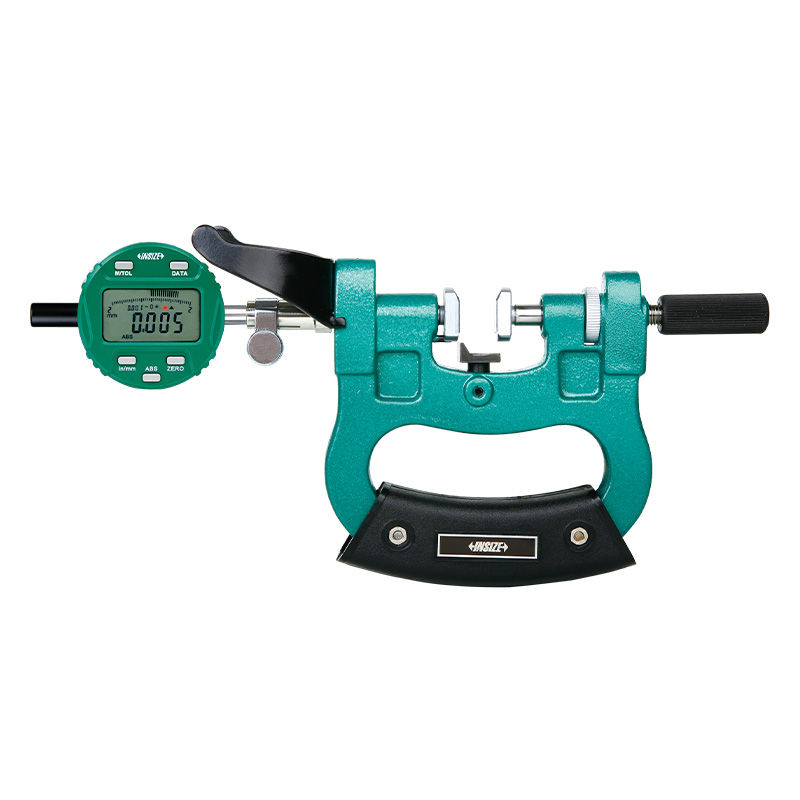

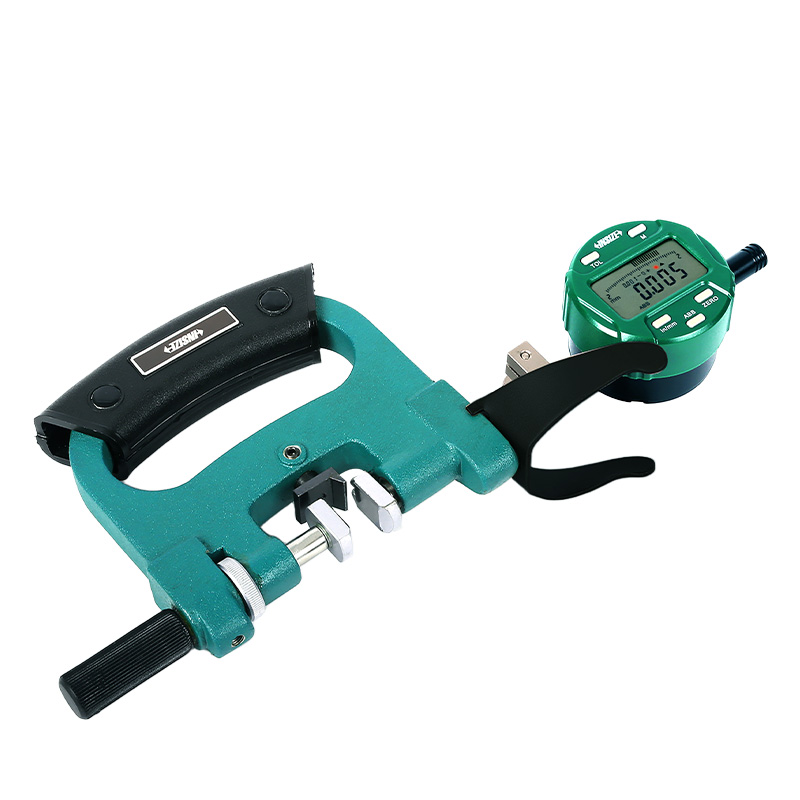

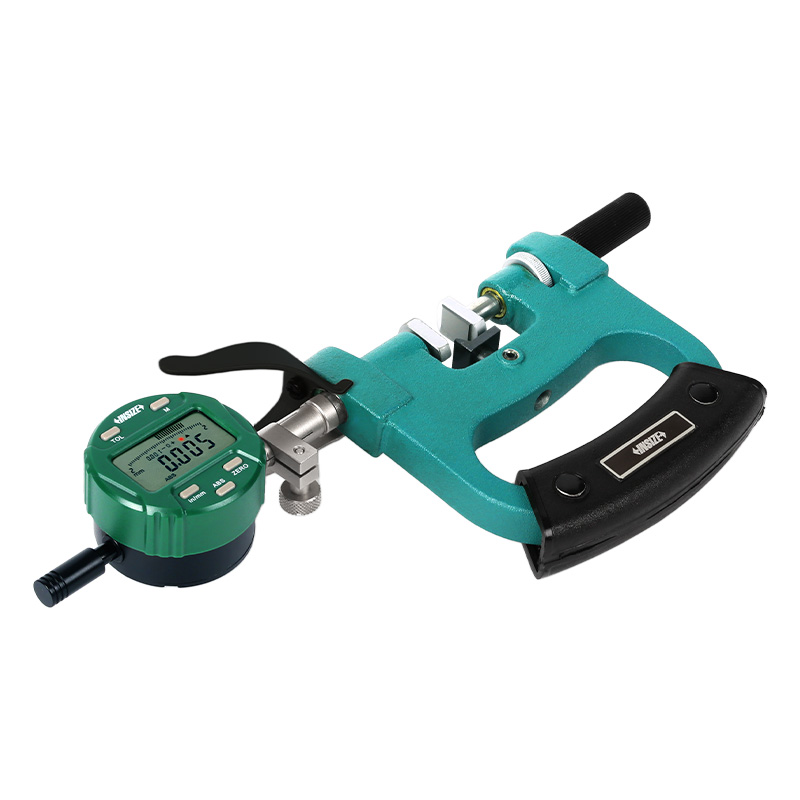

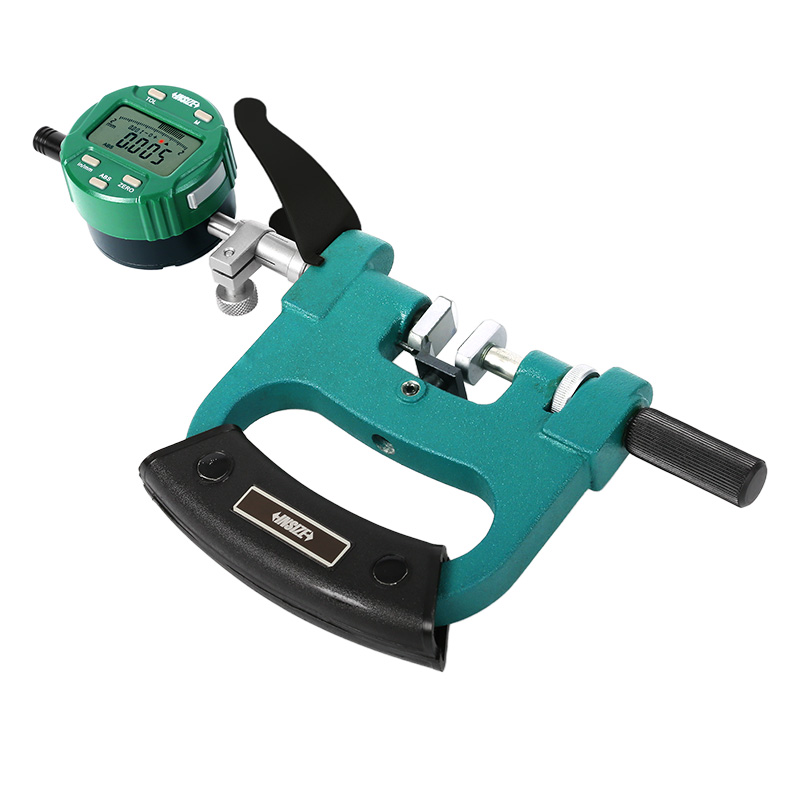

Dial Snap Gauges
Code: 2186
Left anvil retracting stroke: 2mm
Measuring force: 6-8N
Flatness of anvil: 1.5µm
Repeatability: 1µm

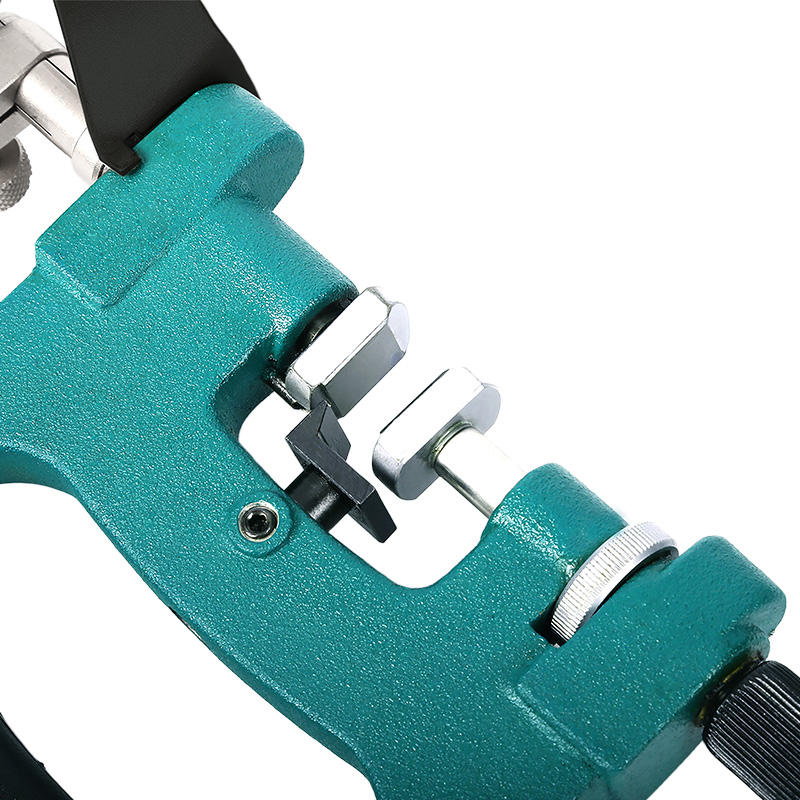

Carbide measuring faces for anvils
Front edges of anvils are chamfered for easy workpiece insertion
| Code | Range | Repeatability |
|---|---|---|
| 2186-25 | 0-25mm | 1μm |
| 2186-50 | 25-50mm | 1μm |
| 2186-75 | 50-75mm | 1μm |
| 2186-100 | 75-100mm | 1μm |
| 2186-125 | 100-125mm | 1μm |
| 2186-150 | 125-150mm | 1μm |
| 2186-175 | 150-175mm | 1μm |
| 2186-200 | 175-200mm | 1μm |
| 2186-225 | 200-225mm | 1μm |
| 2186-250 | 225-250mm | 1μm |
| 2186-275 | 250-275mm | 1μm |
| 2186-300 | 275-300mm | 1μm |
