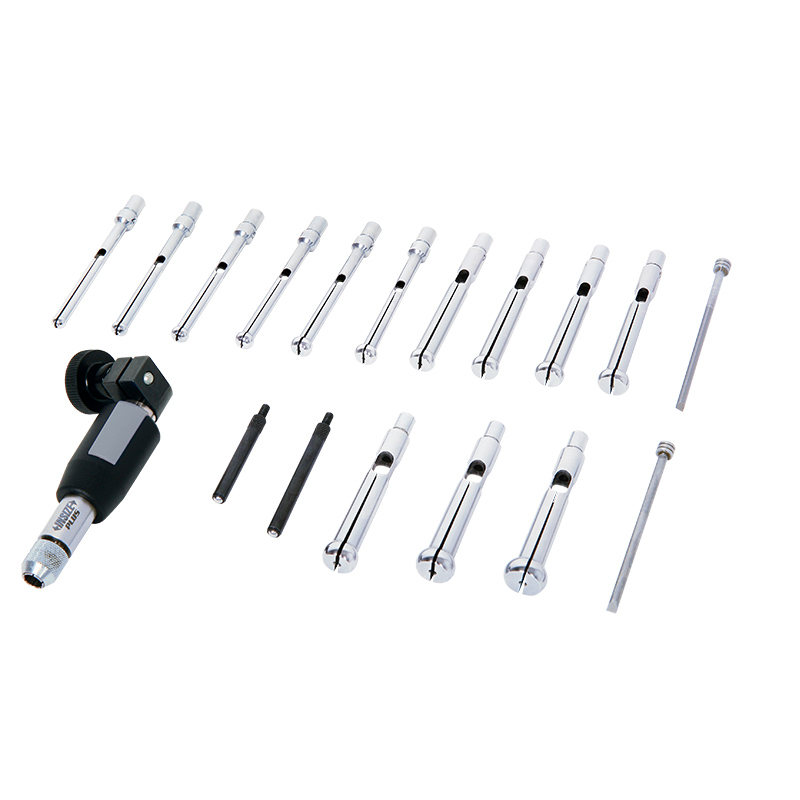

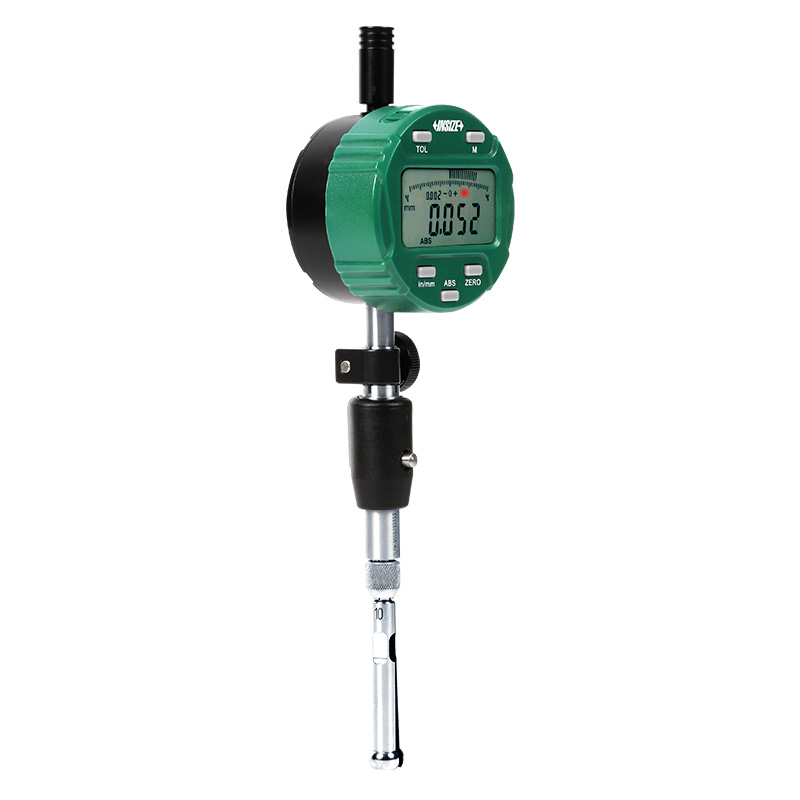

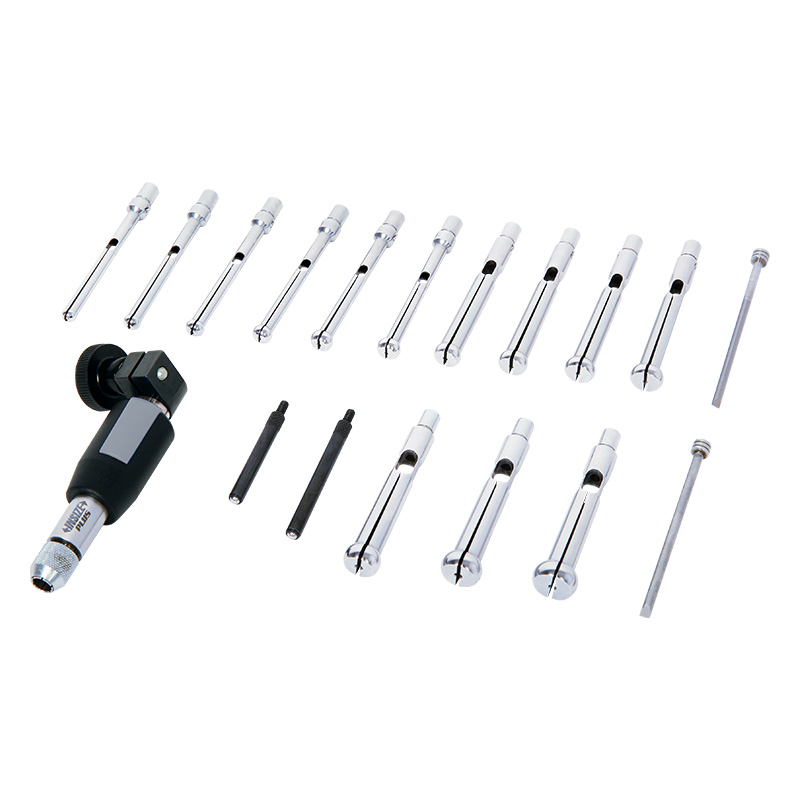

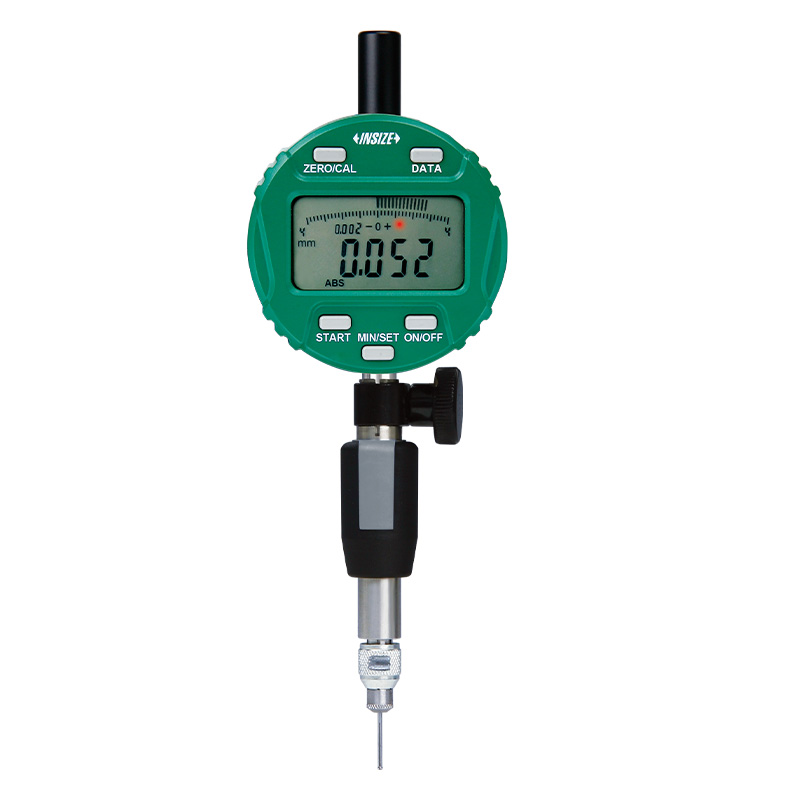

Split Type Dial Bore Gauge Sets
Code: 2421
Split type contact points
Accuracy (without indicator): 3µm (measuring range 0.95~10mm), 4µm (measuring range 10~20.6mm)
Repeatability (without indicator): 1µm
Setting rings and dial indicators are optional
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2421-1D4 | 0.95-1.55mm | 3µm | 1µm |
| 2421-4 | 1.5-4.2mm | 3µm | 1µm |
| 2421-7D5 | 4.15-7.8mm | 3µm | 1µm |
| 2421-12 | 7.7-12.5mm | 3-4µm | 1µm |
| 2421-20 | 12.2-20.6mm | 4µm | 1µm |
| 2421-121 | 4.15-12.5mm | 3-4µm | 1µm |
| 2421-3D9 | 1.5-3.95mm | 3µm | 1µm |
| 2421-7D3 | 3.7-7.3mm | 3µm | 1µm |
| 2421-10 | 7-10mm | 3µm | 1µm |
| 2421-18 | 10-18mm | 4µm | 1µm |
