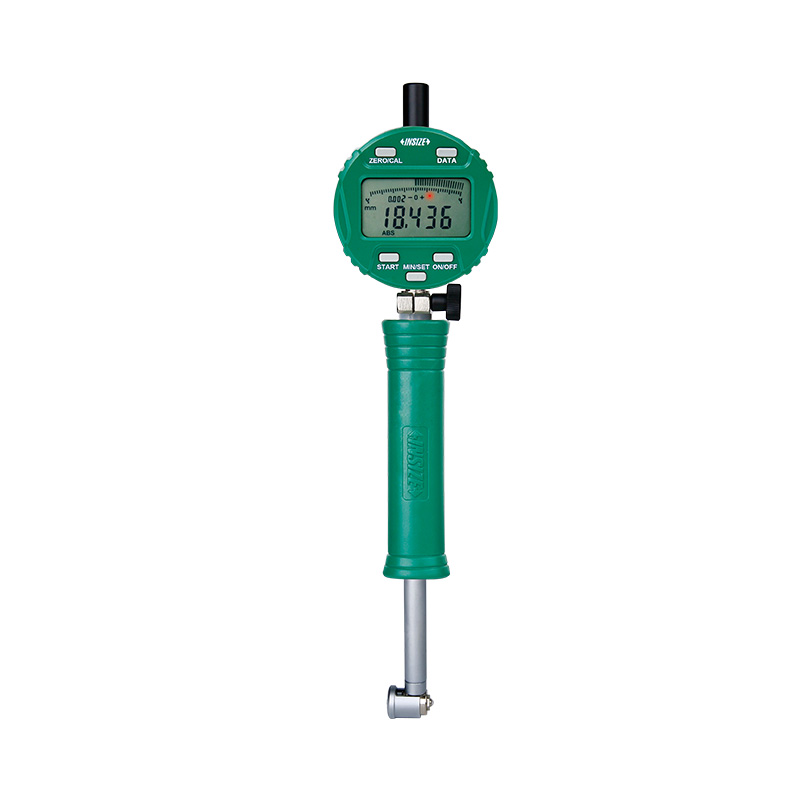

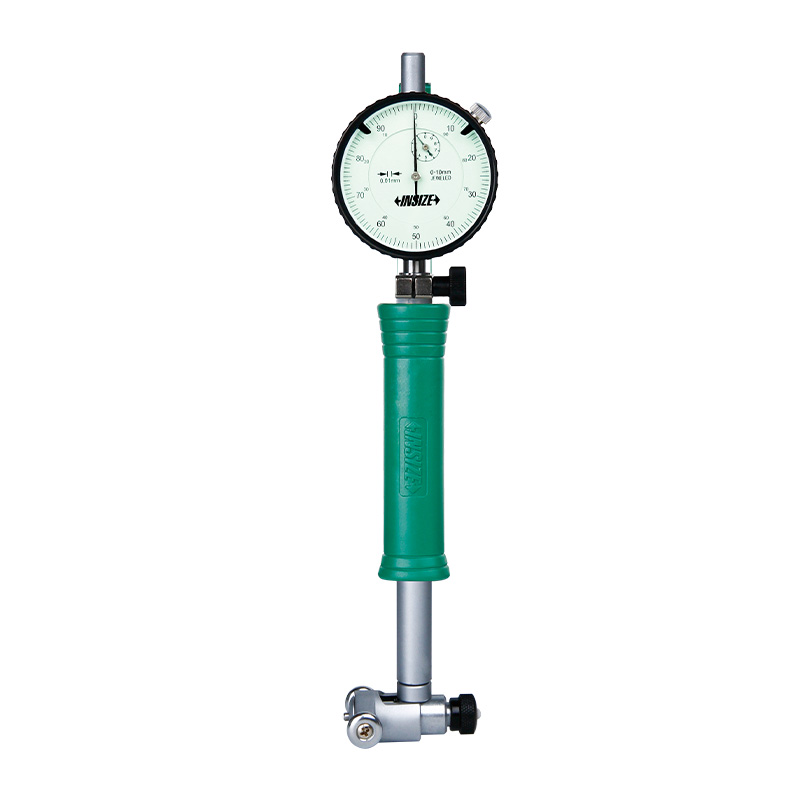

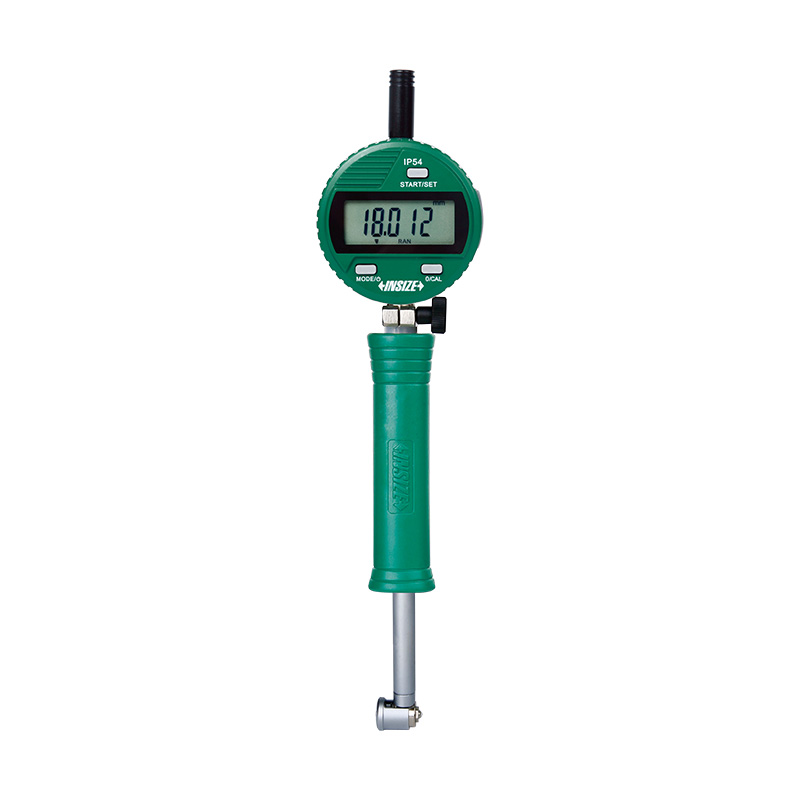

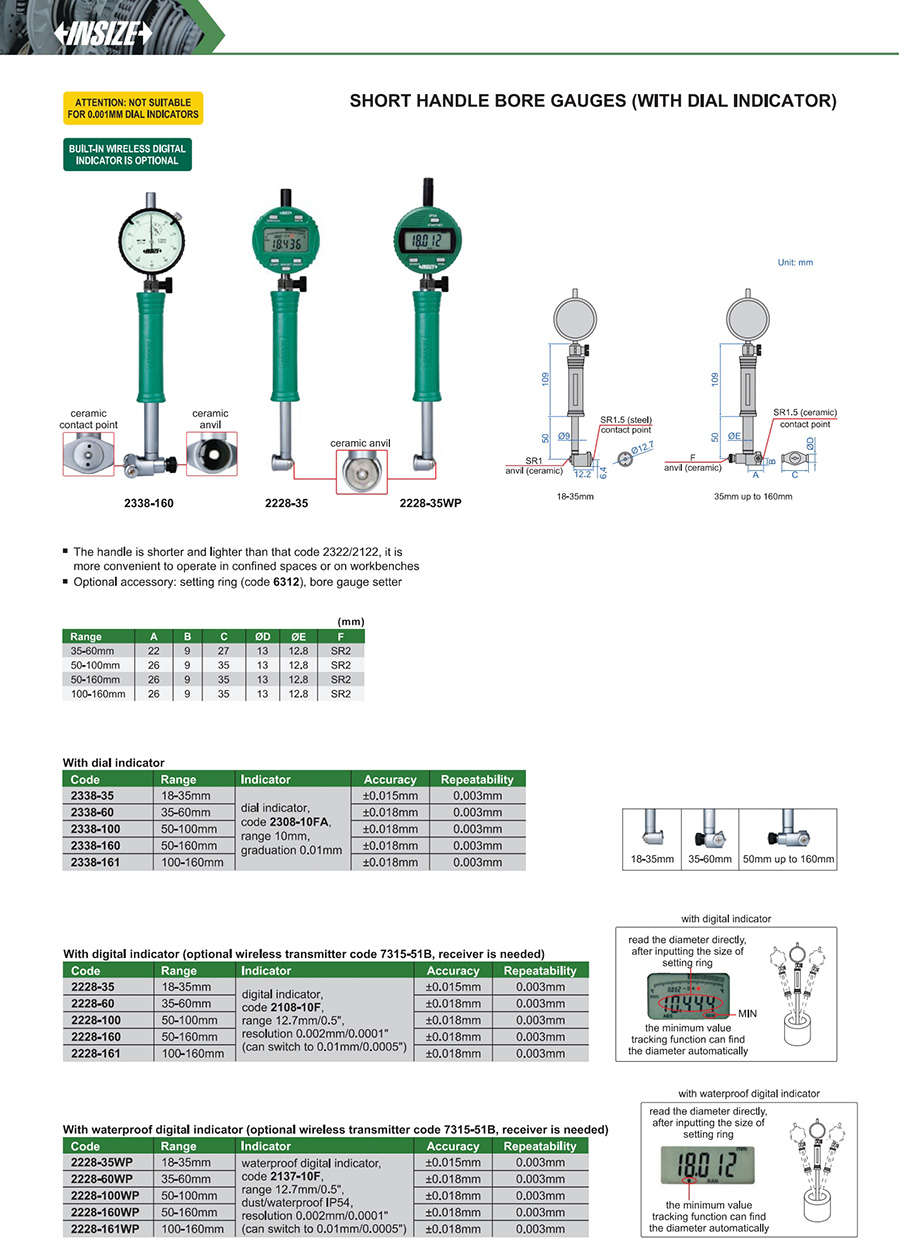

Short Handle Bore Gauges (With Dial Indicator)
Code: 2338/2228
The handle is shorter and lighter than that code 2322/2122, it is more convenient to operate in confined spaces or on workbenches
| Code | Range | Accuracy | Repeatability |
|---|---|---|---|
| 2338-35 | 18-35mm | ±0.015mm | 0.003mm |
| 2338-60 | 35-60mm | ±0.018mm | 0.003mm |
| 2338-100 | 50-100mm | ±0.018mm | 0.003mm |
| 2338-160 | 50-160mm | ±0.018mm | 0.003mm |
| 2338-161 | 100-160mm | ±0.018mm | 0.003mm |
| 2228-35 | 18-35mm | ±0.015mm | 0.003mm |
| 2228-60 | 35-60mm | ±0.018mm | 0.003mm |
| 2228-100 | 50-100mm | ±0.018mm | 0.003mm |
| 2228-160 | 50-160mm | ±0.018mm | 0.003mm |
| 2228-161 | 100-160mm | ±0.018mm | 0.003mm |
| 2228-35WP | 18-35mm | ±0.015mm | 0.003mm |
| 2228-60WP | 35-60mm | ±0.018mm | 0.003mm |
| 2228-100WP | 50-100mm | ±0.018mm | 0.003mm |
| 2228-160WP | 50-160mm | ±0.018mm | 0.003mm |
| 2228-161WP | 100-160mm | ±0.018mm | 0.003mm |
View the complete
product specifications
