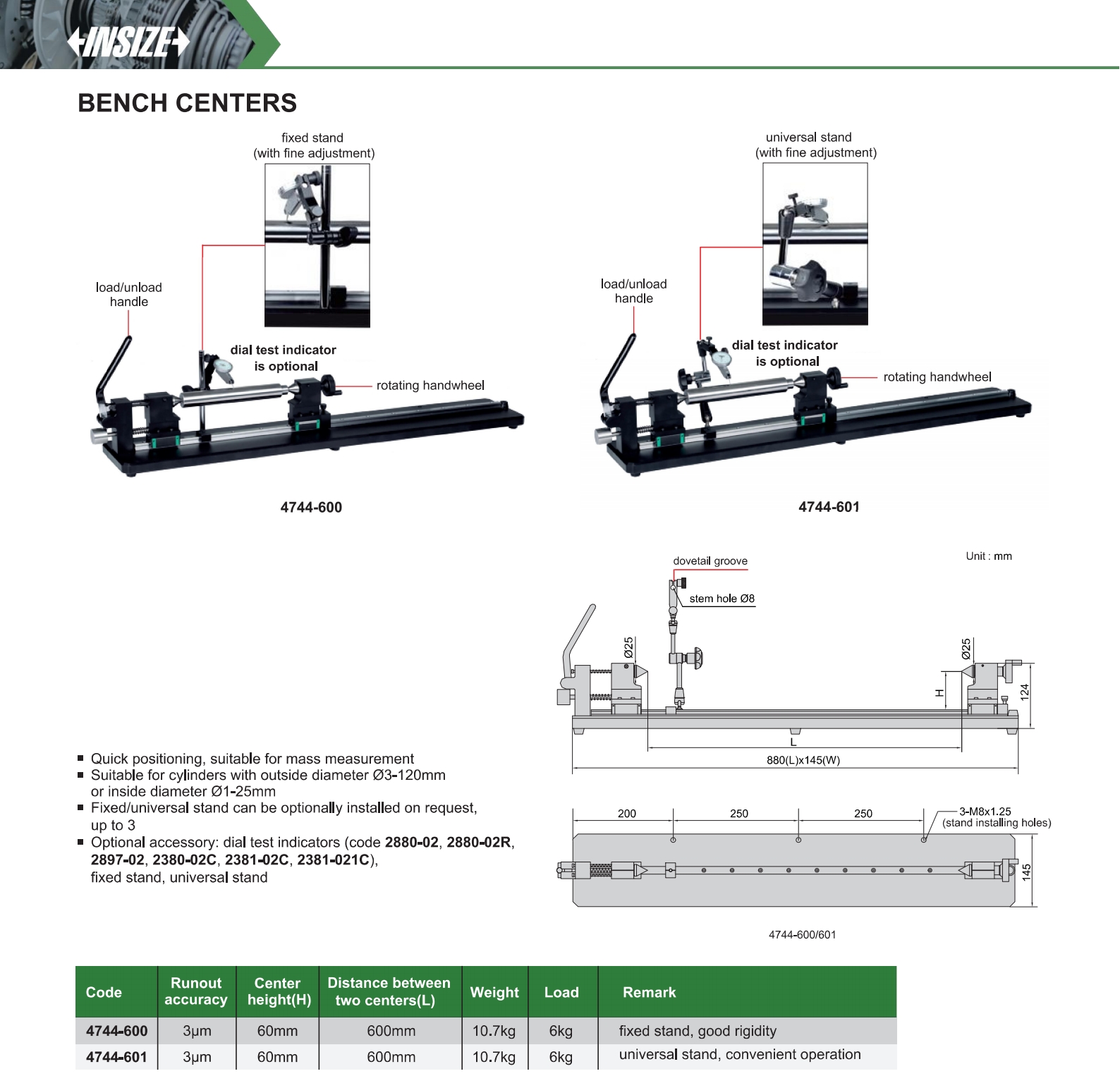

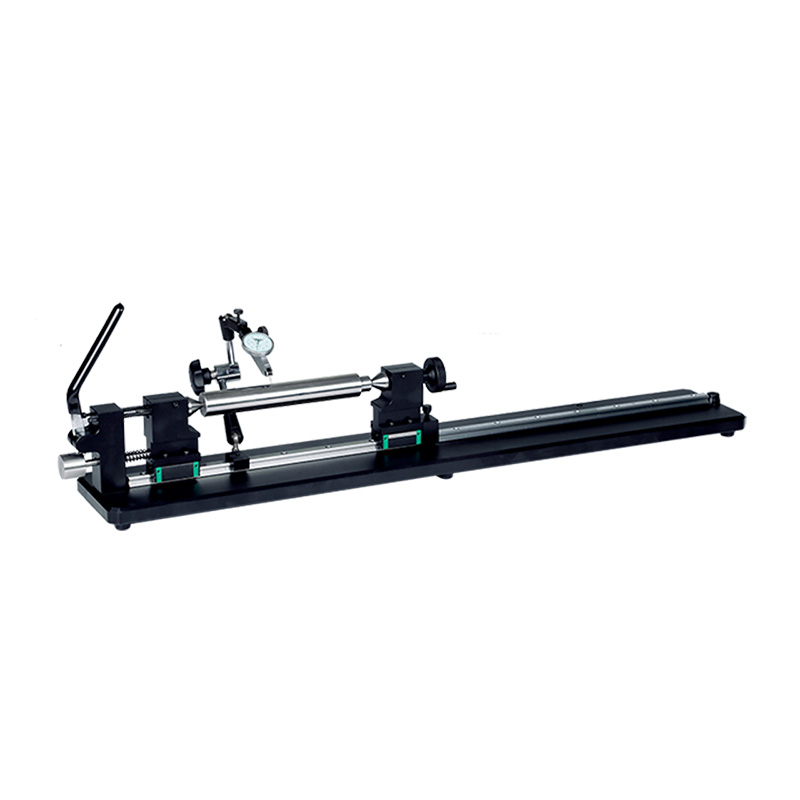

Bench Centers
Code: 4744
Quick positioning, suitable for mass measurement
Suitable for cylinders with outside diameter Ø3-120mm or inside diameter Ø1-25mm
Fixed/universal stand can be optionally installed on request, up to 3
| Code | Runout accuracy | Remark |
|---|---|---|
| 4744-600 | 3µm | fixed stand, good rigidity |
| 4744-601 | 3µm | universal stand, convenient operation |
