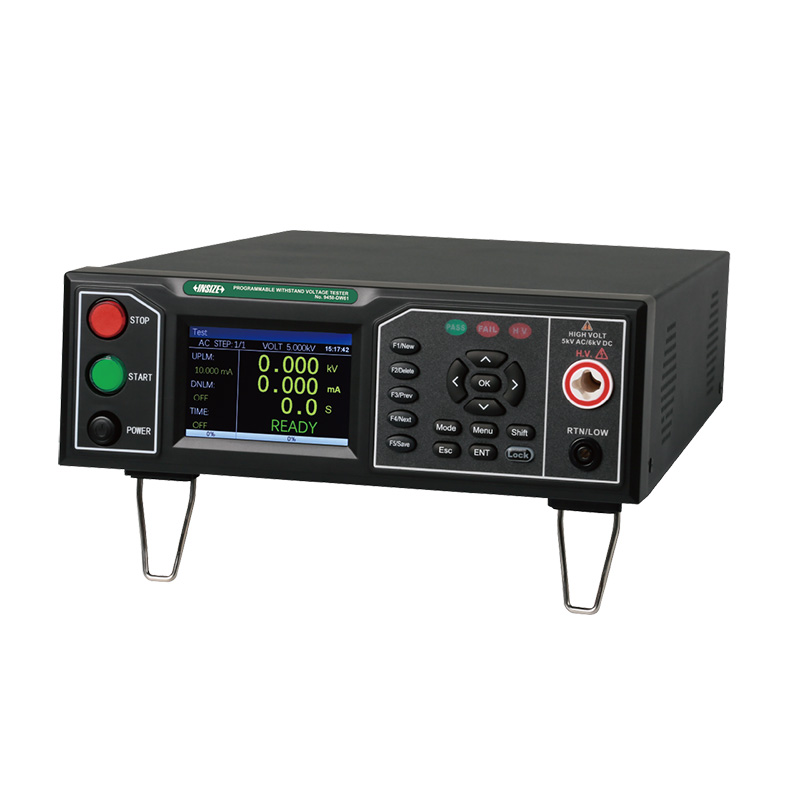

Programmable Withstanding Voltage Testers
Code: 9458
High-voltage test with adjustable rise and fall time
Arc detection function, contact check function
Various over-limit alarms with buzzer, LCD display, Fail indicator
20 test files can be edited, each file can be edited for 50 test items
Standard communication interface to meet automation test requirements
| Code | AC Withstand Voltage | AC Leakage Current | DC Withstand Voltage | DC Leakage Current |
|---|---|---|---|---|
| 9458-DW61 | 5kV | 20mA | 6kV | 10mA |
| 9458-AW52 | 5kV | 20mA | no | no |

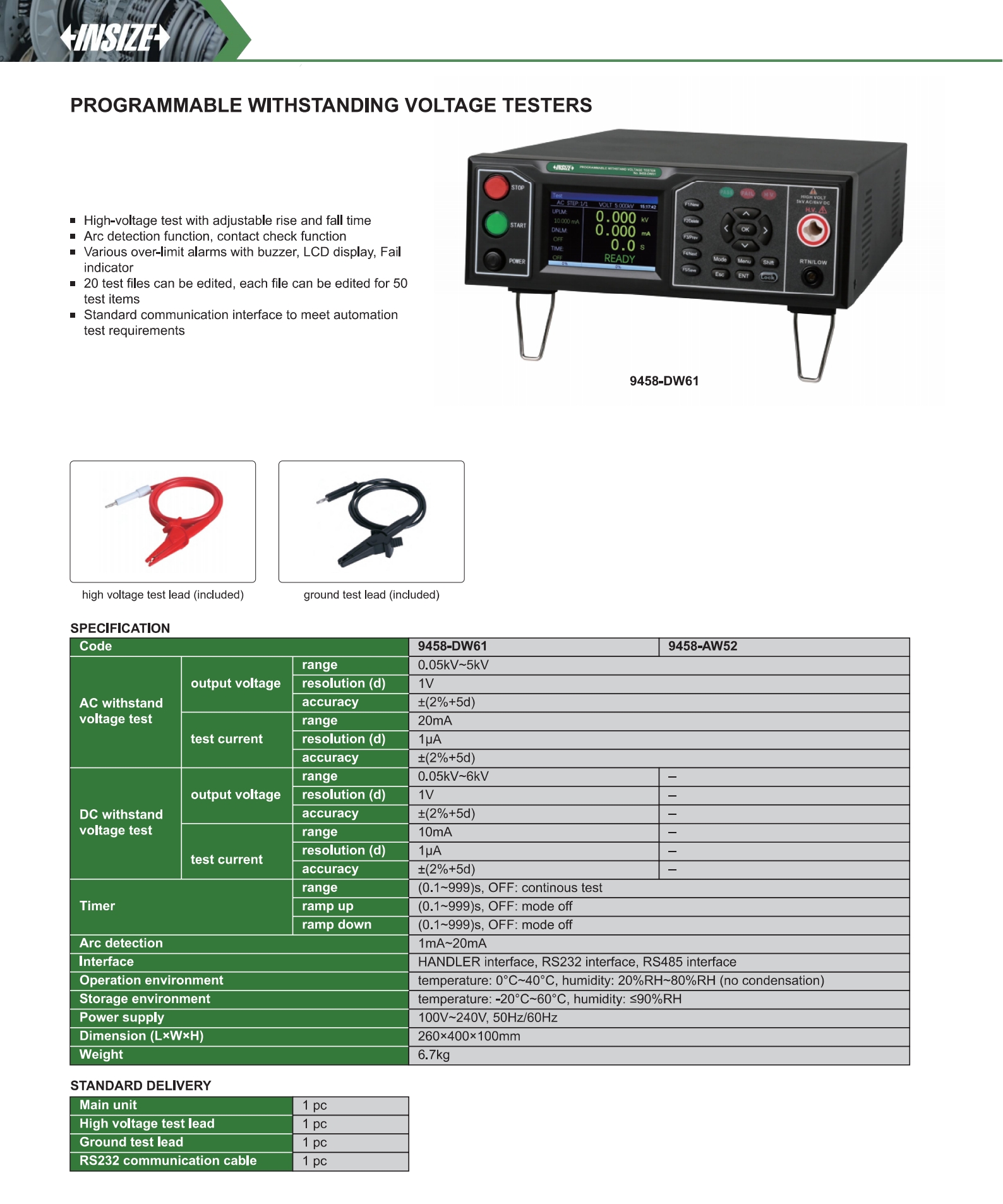

View the complete
product specifications
