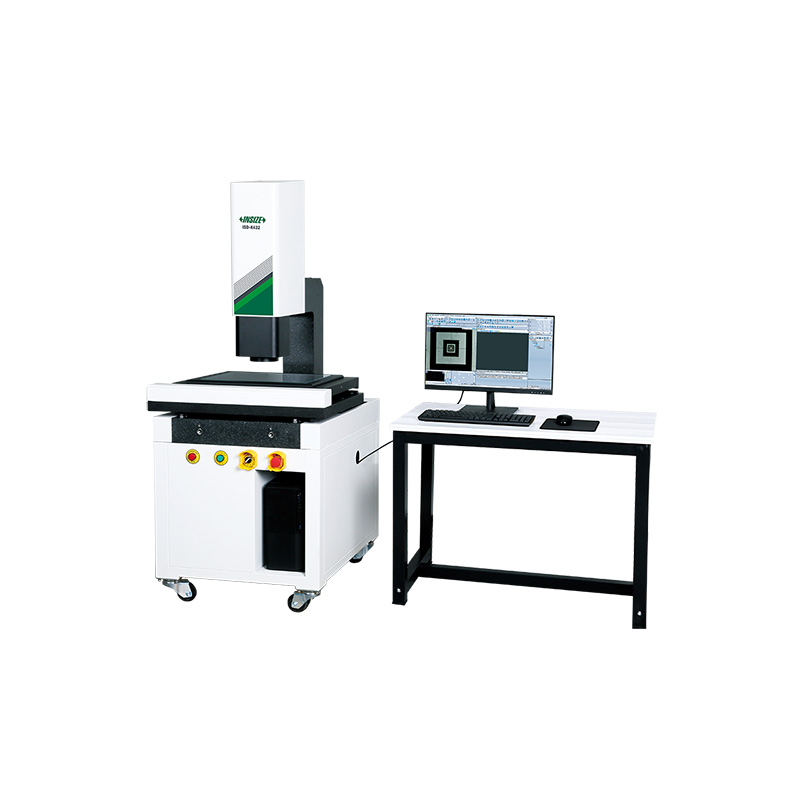

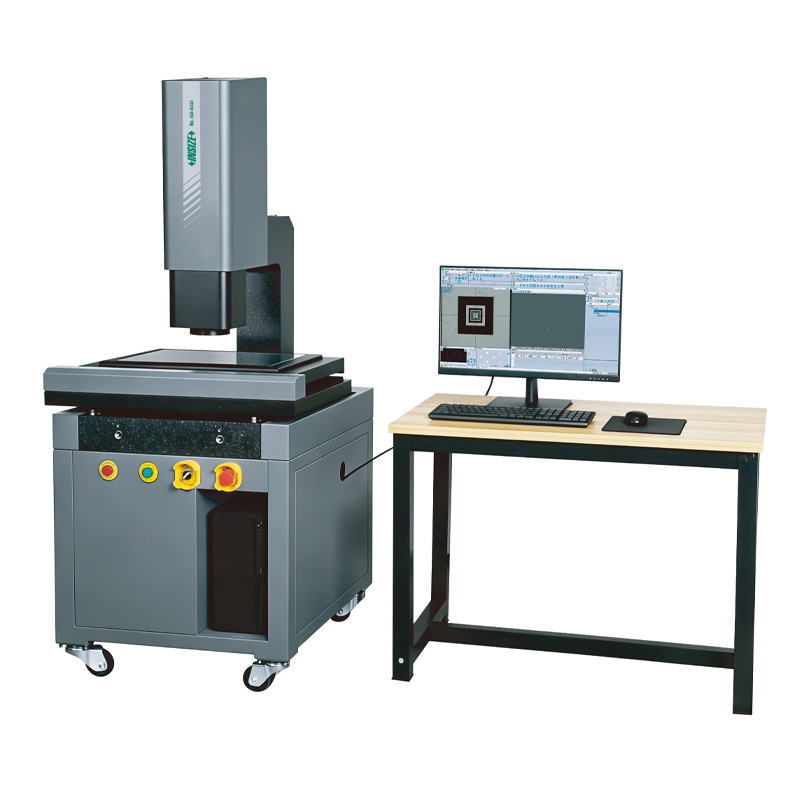

CNC Vision Measuring Systems (Advanced Type)
Code: ISD-K Series
Motorized zoom objective
Granite body, high accuracy and stability
Panasonic servo control motor, with precise positioning performance in high-speed movement
RSF brand linear scales
| Code | Range | Accuracy | Resolution | Repeatability | Magnification | Max. load |
|---|---|---|---|---|---|---|
| ISD-K322 | 300×200×200mm | ≤(2.0+L/200)µm | 0.5µm | 2µm | 27X~356X (on 23.8'' monitor) | 35kg |
| ISD-K432 | 400×300×200mm | ≤(2.0+L/200)µm | 0.5µm | 2µm | 27X~356X (on 23.8'' monitor) | 35kg |
| ISD-K542 | 500×400×200mm | ≤(2.5+L/200)µm | 0.5µm | 2µm | 27X~356X (on 23.8'' monitor) | 35kg |

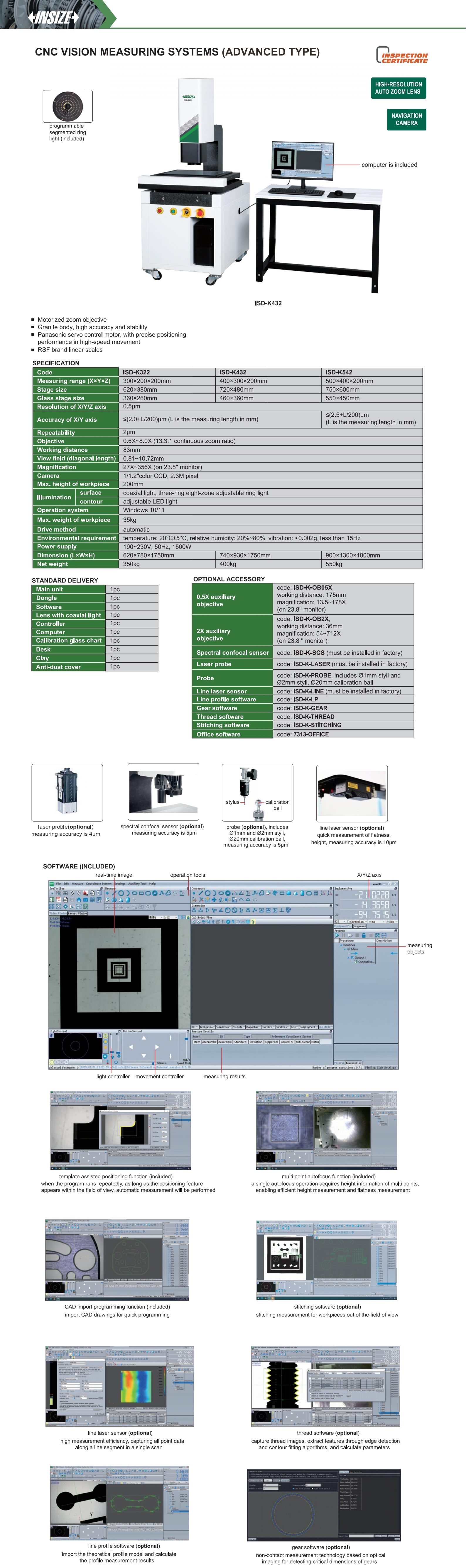

View the complete
product specifications
