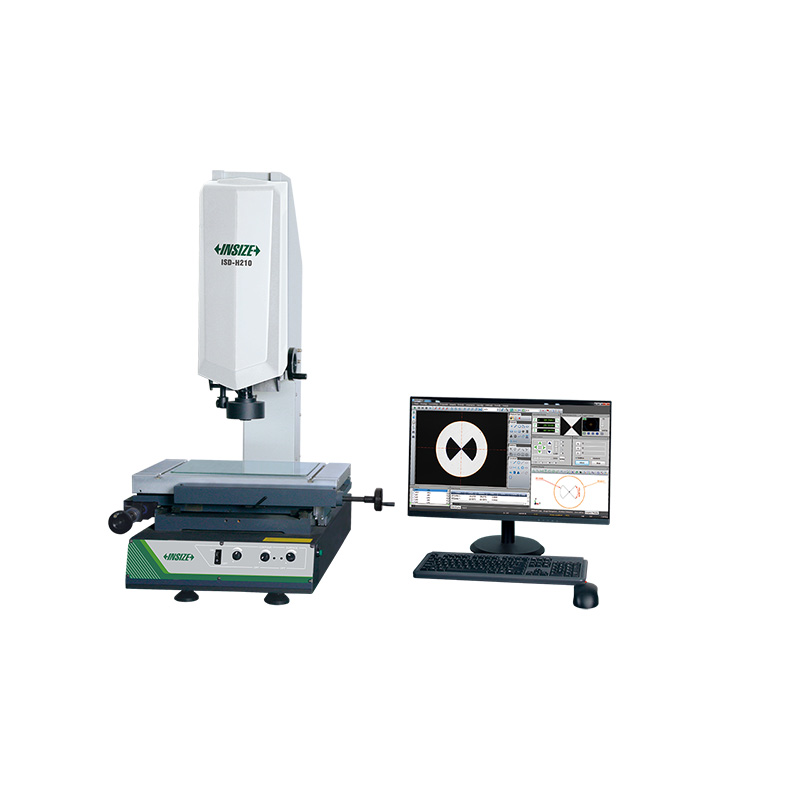

High-Definition Manual Vision Measuring Systems
Code: ISD-H Series
High-definition image
Large view field
Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed
| Code | Range | Accuracy | Resolution | Repeatability | Magnification | Max. load |
|---|---|---|---|---|---|---|
| ISD-H210 | 200×100×150mm | ≤(2.5+L/100)µm (L is the measuring length in mm) | 0.5µm | 2µm | 27.4X~351X (on 24'' monitor) | 20kg |
| ISD-H320 | 300×200×150mm | ≤(2.5+L/100)µm (L is the measuring length in mm) | 0.5µm | 2µm | 27.4X~351X (on 24'' monitor) | 20kg |
| ISD-H430 | 400×300×150mm | ≤(2.5+L/100)µm (L is the measuring length in mm) | 0.5µm | 2µm | 27.4X~351X (on 24'' monitor) | 20kg |

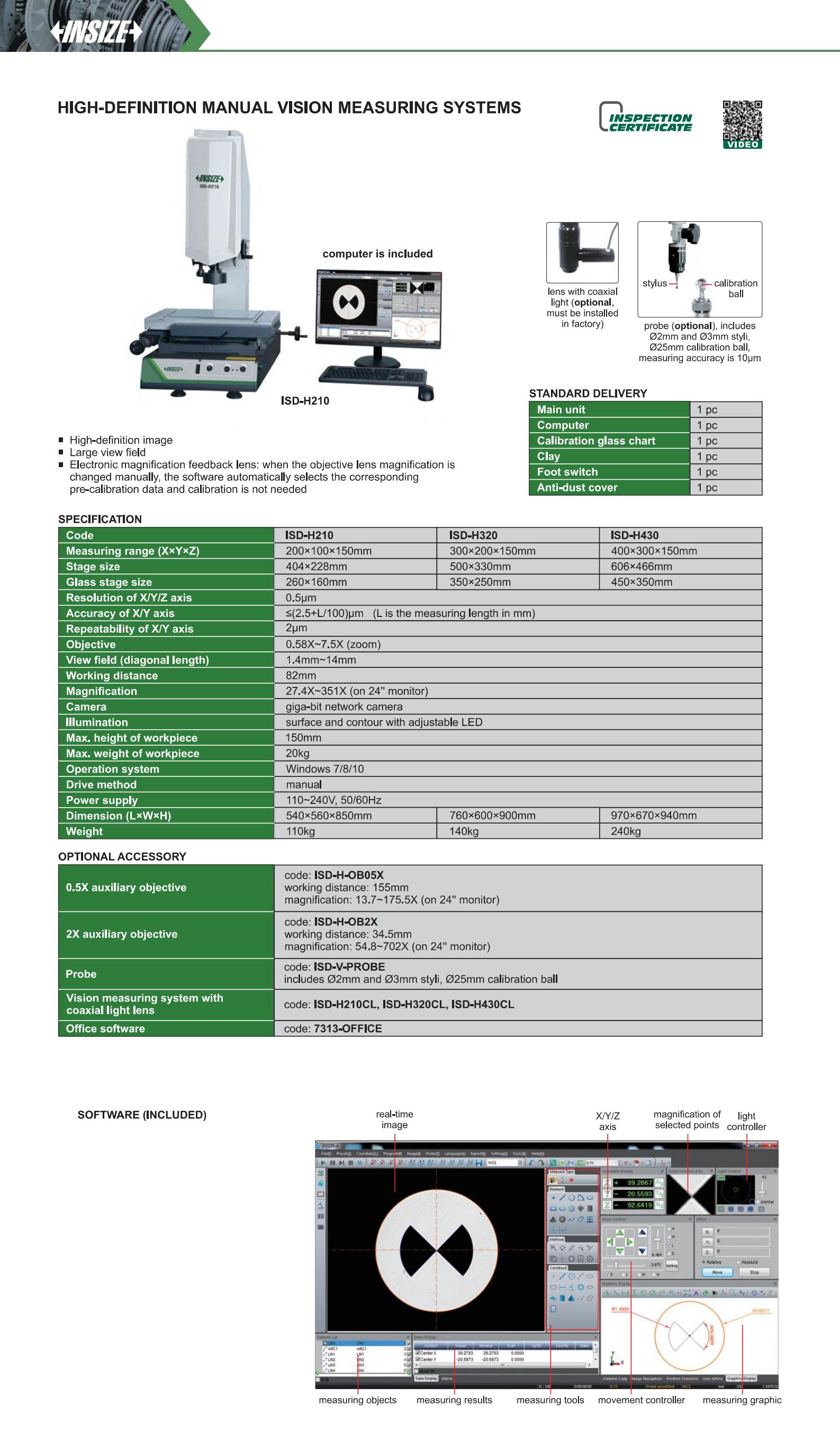

View the complete
