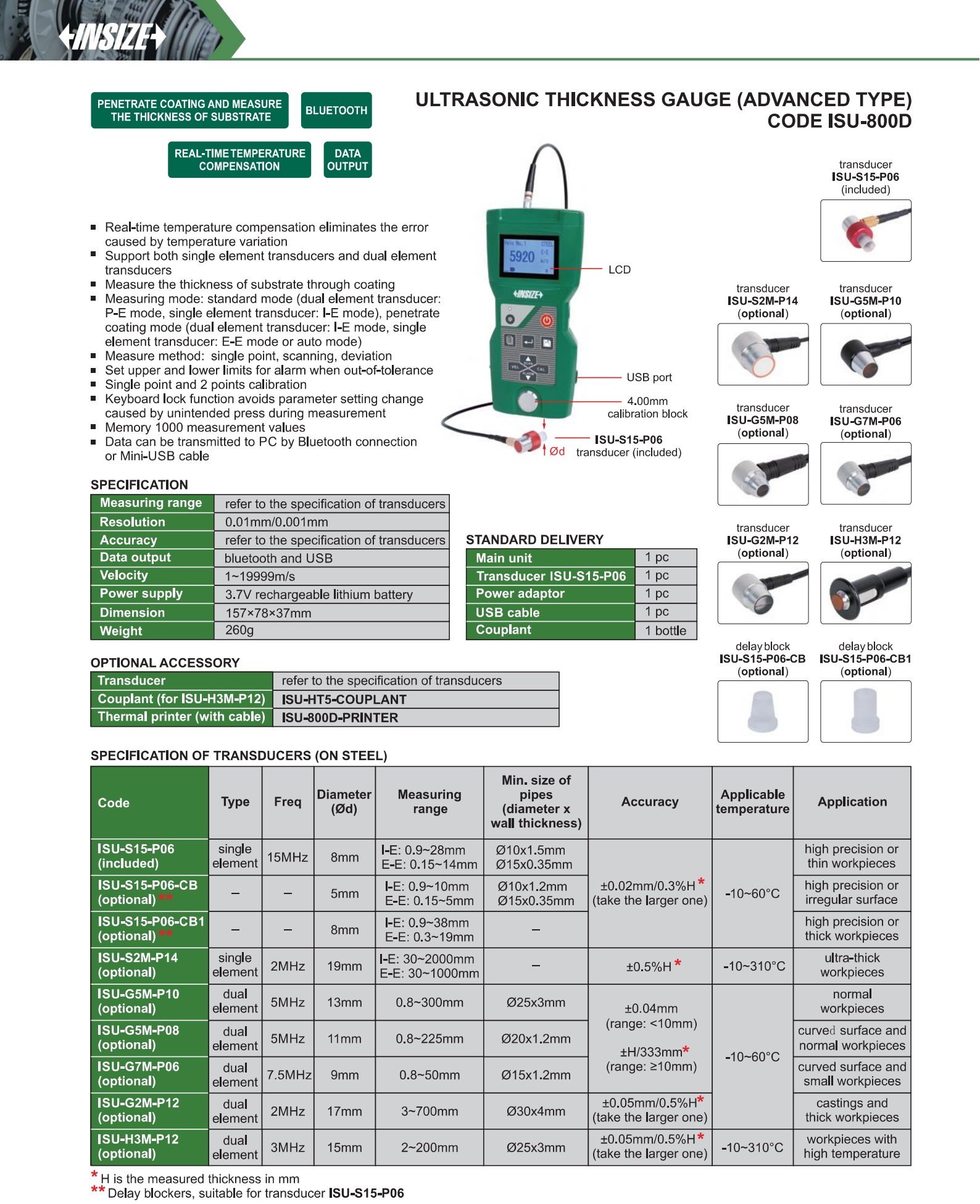

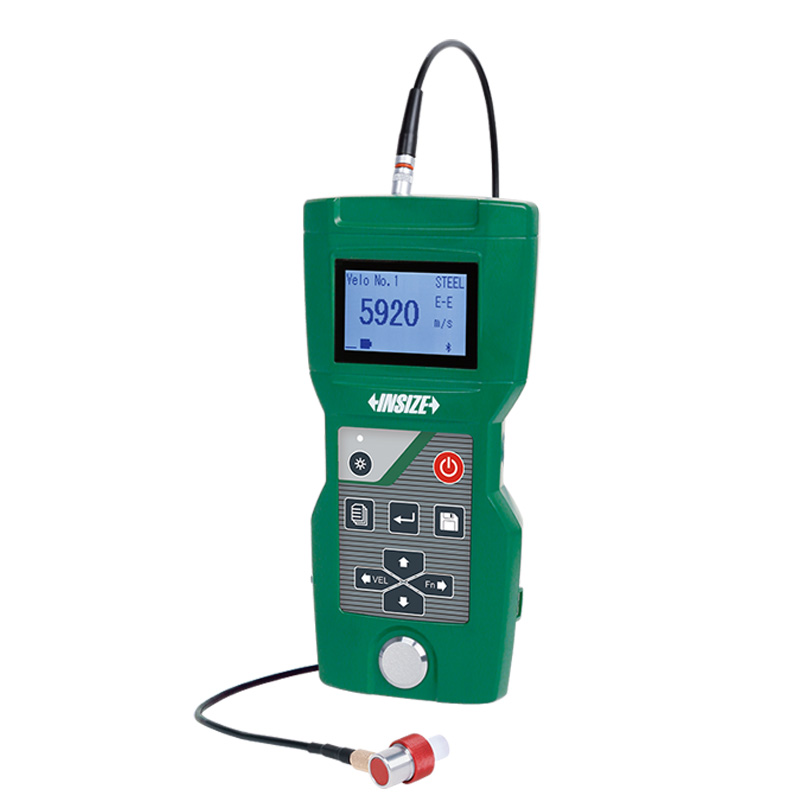

Ultrasonic Thickness Gauge (Advanced Type)
Code: ISU-800D
Real-time temperature compensation eliminates the error caused by temperature variation
Support both single element transducers and dual element transducers
Measure the thickness of substrate through coating
Measuring mode: standard mode (dual element transducer: P-E mode, single element transducer: I-E mode), penetrate coating mode (dual element transducer: I-E mode, single element transducer: E-E mode or auto mode)
Measure method: single point, scanning, deviation
| Code | Range | Accuracy | Diameter range | Frequency | Data transmission | Velocity |
|---|---|---|---|---|---|---|
| ISU-800D | I-E: 0.9~28mm, E-E: 0.15~14mm | ±0.02mm/0.3%H | 8mm | 15MHz | bluetooth and USB | 1~19999m/s |
View the complete
product specifications
