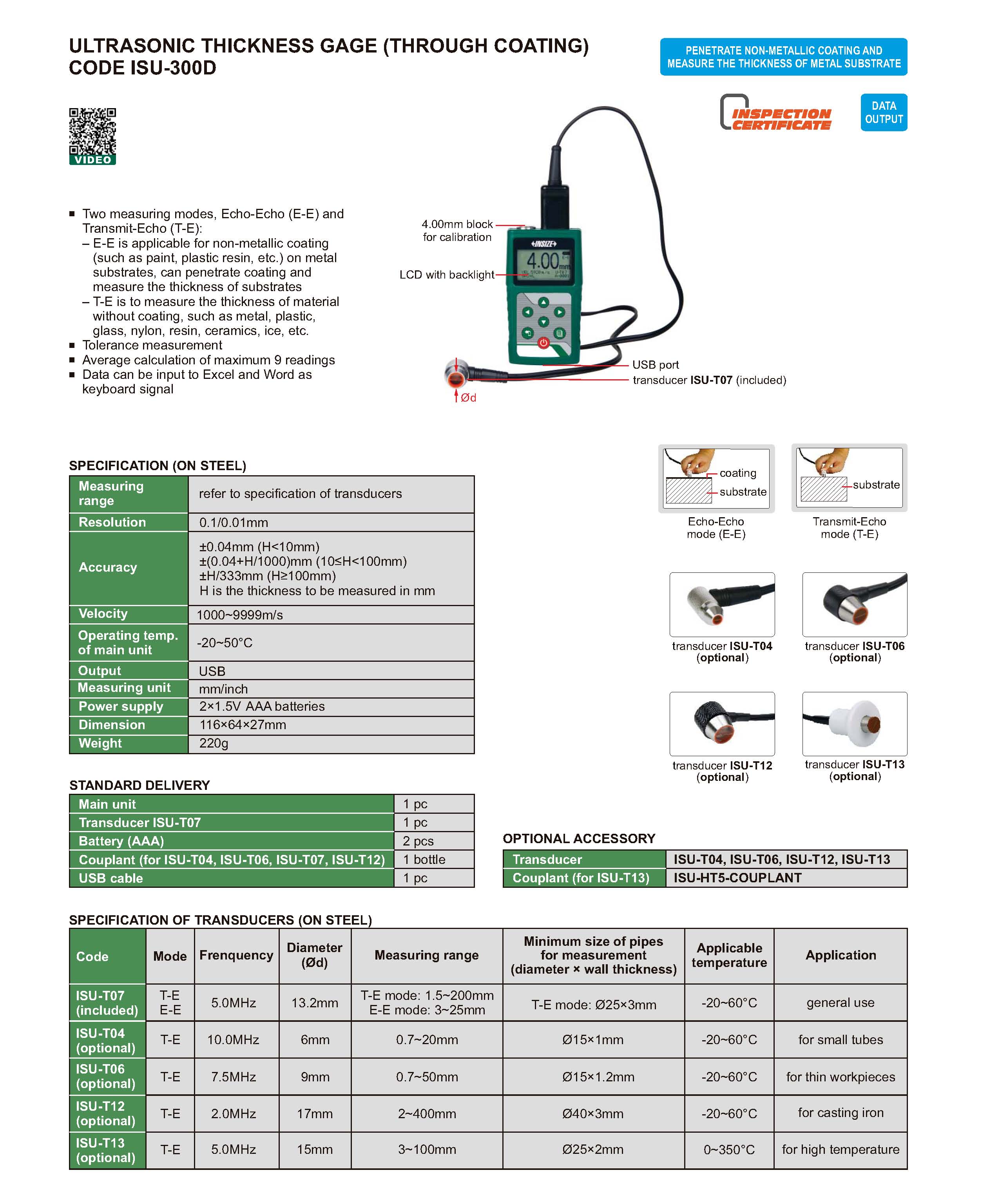

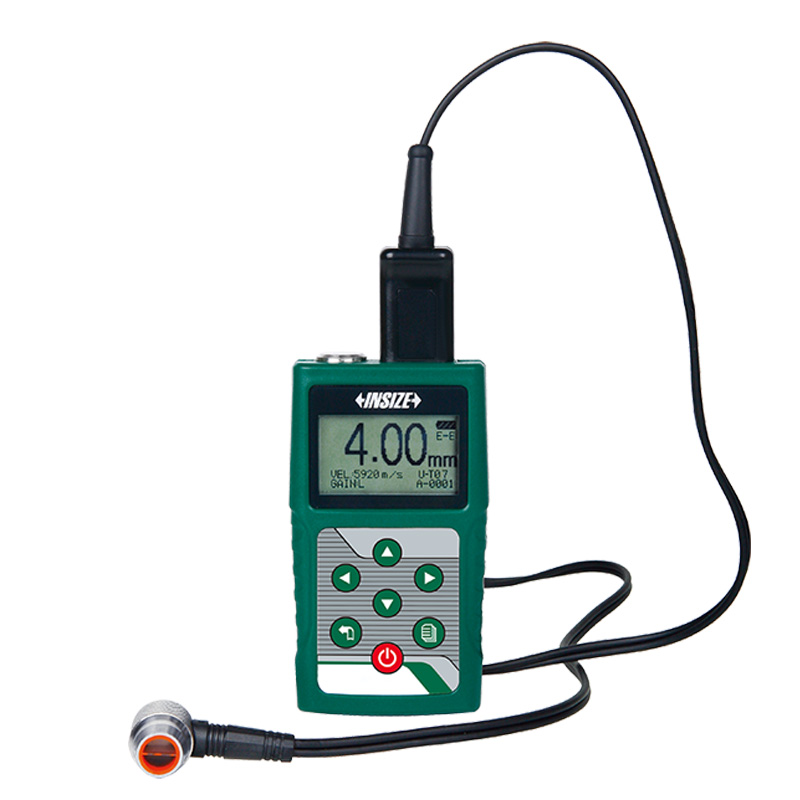

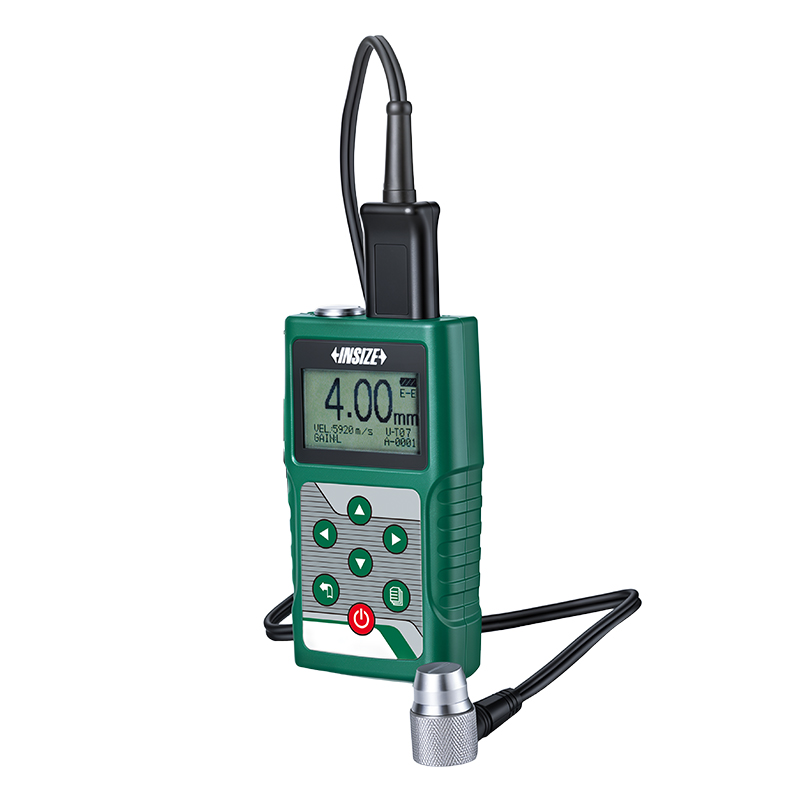

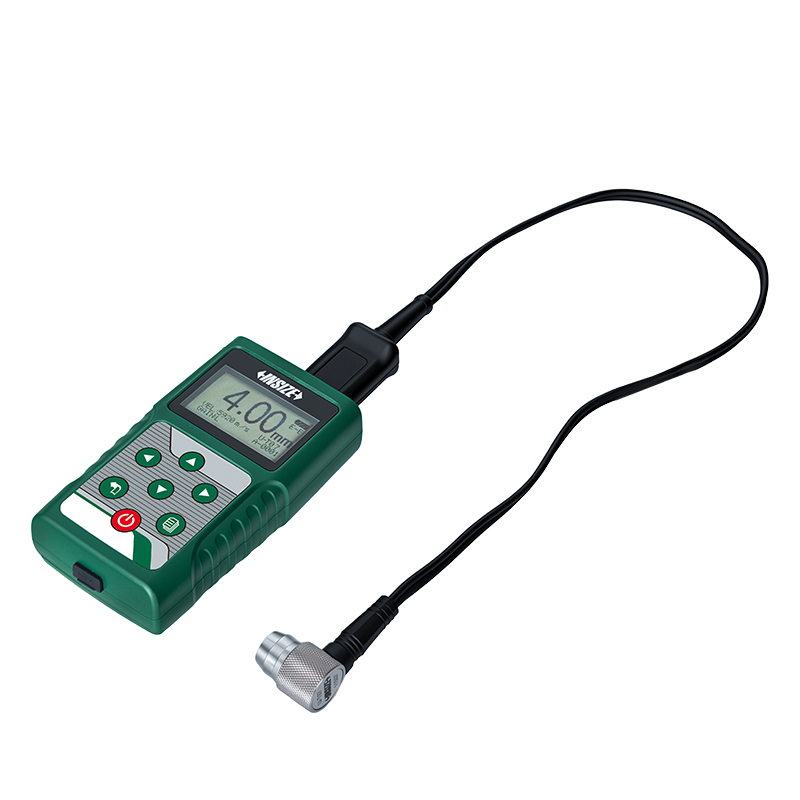

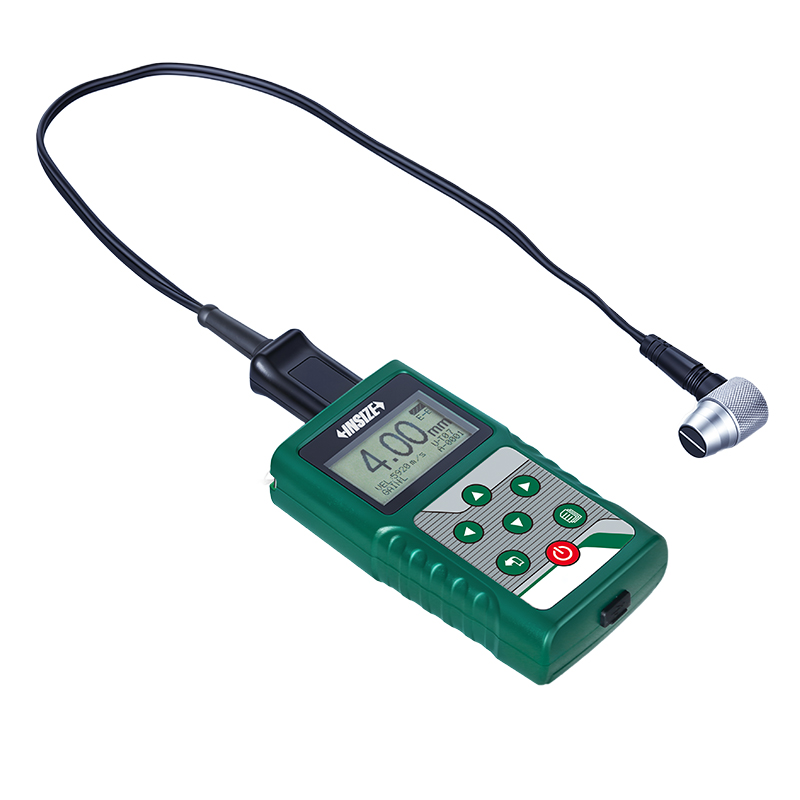

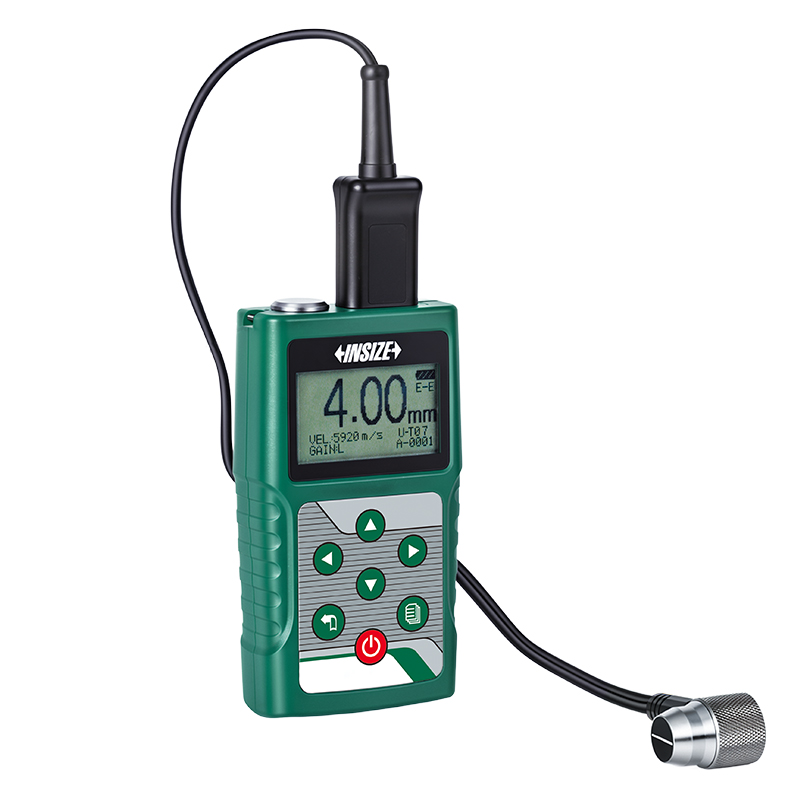

Ultrasonic Thickness Gauge (Through Coating)
Code: ISU-300D
Tolerance measurement
Average calculation of maximum 9 readings
Data can be input to Excel and Word as keyboard signal
| Code | Range | Accuracy | Frequency | Data transmission | Velocity | Probe diameter (ØD) |
|---|---|---|---|---|---|---|
| ISU-300D | T-E: 1.5~200mm, E-E: 3~25mm | ±0.04mm (H<10mm), ±(0.04+H/1000)mm (10≤H<100mm), ±H/333mm (H≥100mm) | 5.0MHz | USB | 1000~9999m/s | 13.2mm |
