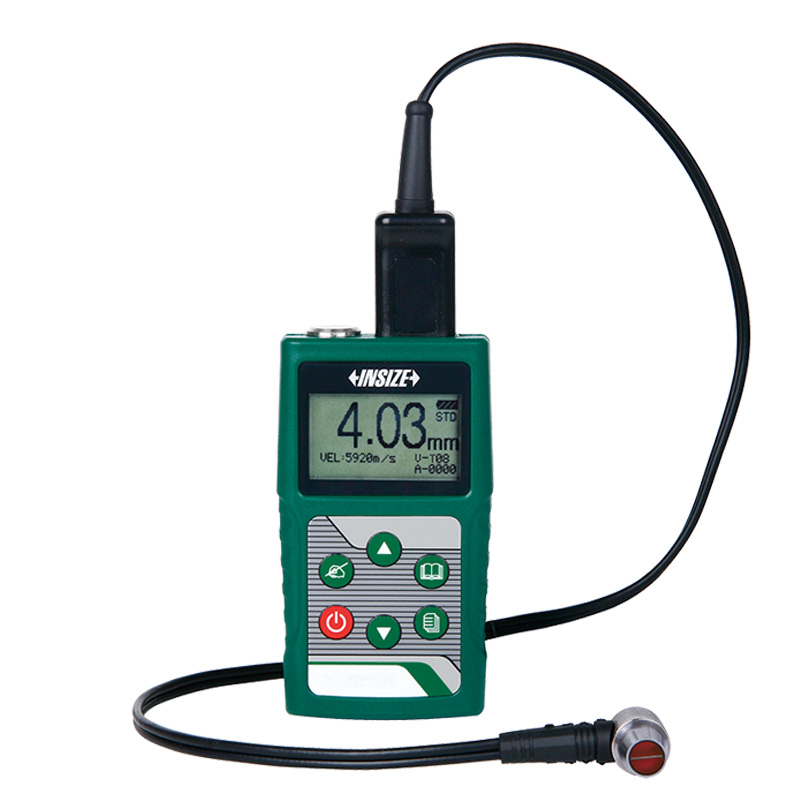

Ultrasonic Thickness Gauge
Code: ISU-250C
Measure the thickness from one side of objects, suitable for pipes, tanks, etc.
Applicable material: metal, plastic, glass, nylon, resin, ceramic, ice
Tolerance measurement
Average calculation of 9 readings
Data can be input to Excel and Word as keyboard signal

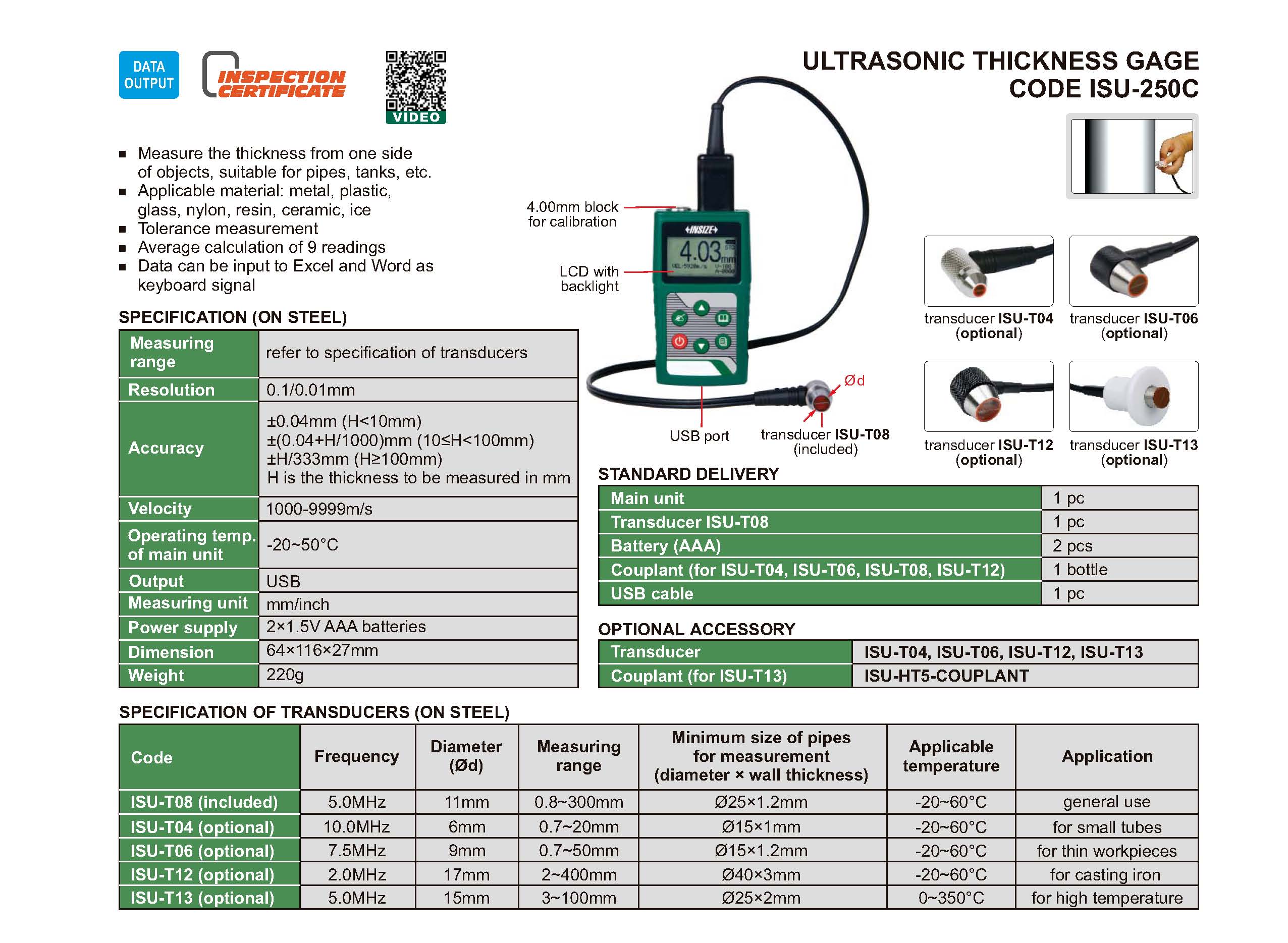

| Code | Range | Accuracy | Frequency | Data transmission | Velocity | Probe diameter (ØD) |
|---|---|---|---|---|---|---|
| ISU-250C | 0.8~300mm | ±0.04mm (H<10mm), ±(0.04+H/1000)mm (10≤H<100mm), ±H/333mm (H≥100mm) | 5.0MHz | USB | 1000-9999m/s | 11mm |
