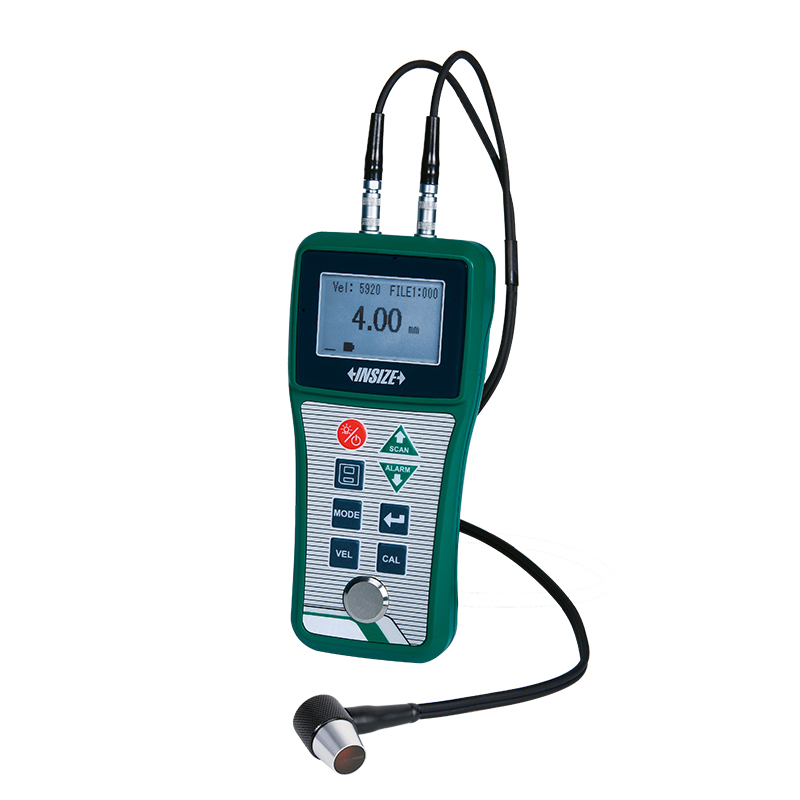

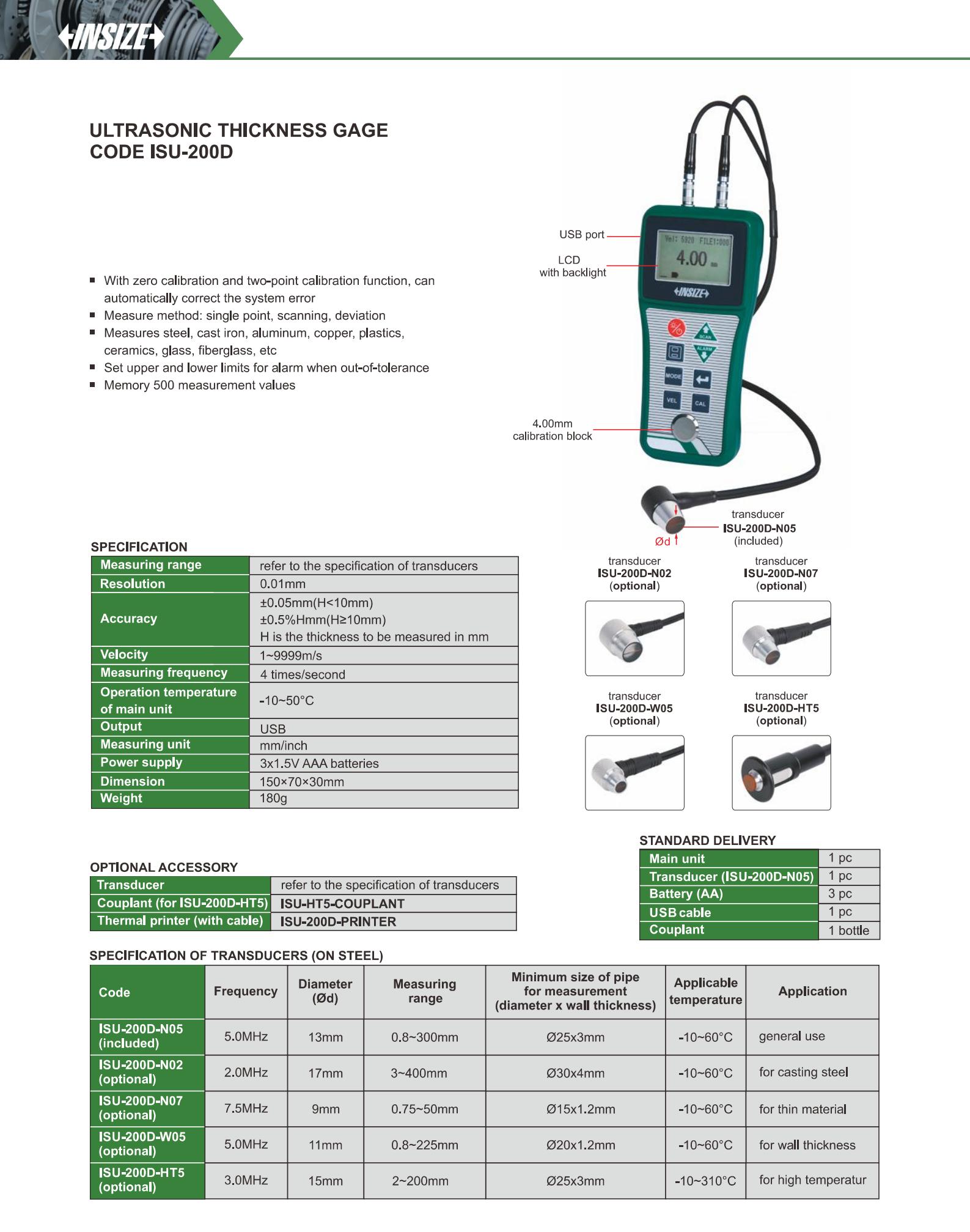

Ultrasonic Thickness Gauge
Code: ISU-200D
With zero calibration and two-point calibration function, can automatically correct the system error
Measure method: single point, scanning, deviation
Measures steel, cast iron, aluminum, copper, plastics, ceramics, glass, fiberglass, etc
Set upper and lower limits for alarm when out-of-tolerance
Memory 500 measurement values
| Code | Range | Accuracy | Frequency | Data transmission | Velocity | Probe diameter (ØD) |
|---|---|---|---|---|---|---|
| ISU-200D | 0.8~300mm | ±0.05mm (H<10mm), ±0.5%Hmm (H≥10mm) | 5.0MHz | USB | 1~9999m/s | 13mm |
View the complete
product specifications
