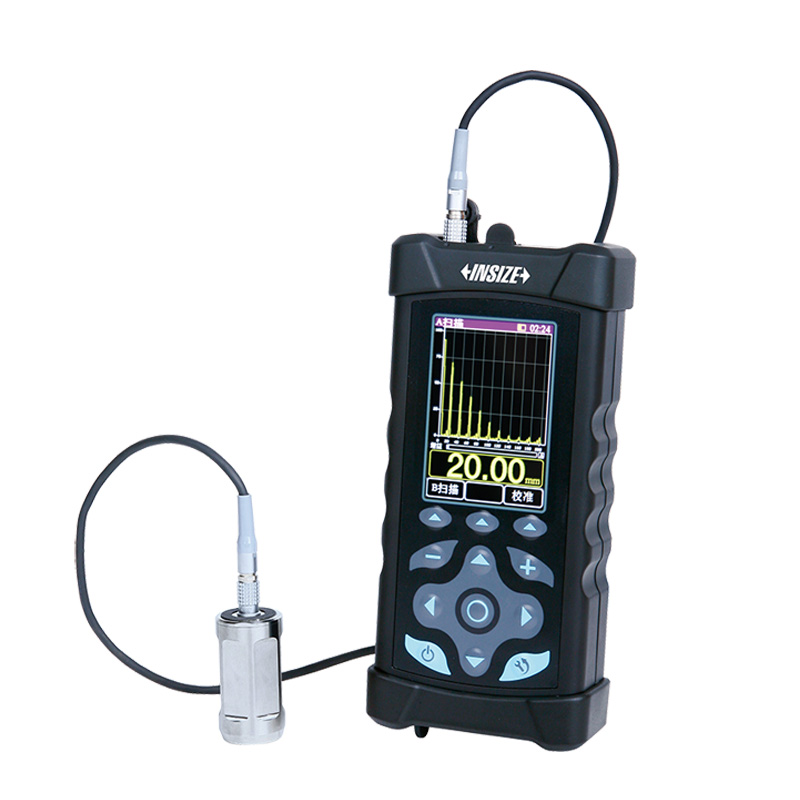

Electromagnetic Ultrasonic Thickness Gauge
Code: EMU-S340
No surface polishing required, can penetrate anti-corrosion coating and rust (maximum 4mm), no coupling agent required
Normal temperature permanent magnetic probe and high temperature permanent magnetic probe are using weak permanent magnet, to replace the strong permanent magnet commonly used nowadays. Completely solve the problem that
EMAT transducer suction force is too large and difficult to move, so that the manual inspection is more simple, convenient and safe
Temperature compensation function, can input the actual temperature of high-temperature components to automatically compensate the speed of sound, making the thickness measurement value more accurate
| Code | Range | Accuracy | Data transmission | Velocity | Probe diameter (ØD) |
|---|---|---|---|---|---|
| EMU-S340 | 1.5~200mm | ±0.04mm+H/1000 (H≤50mm), ±0.2mm (50≥H≥100mm), ±0.3mm (100≥H≥200mm) | USB 2.0 | 1000~9999m/s | 30mm |

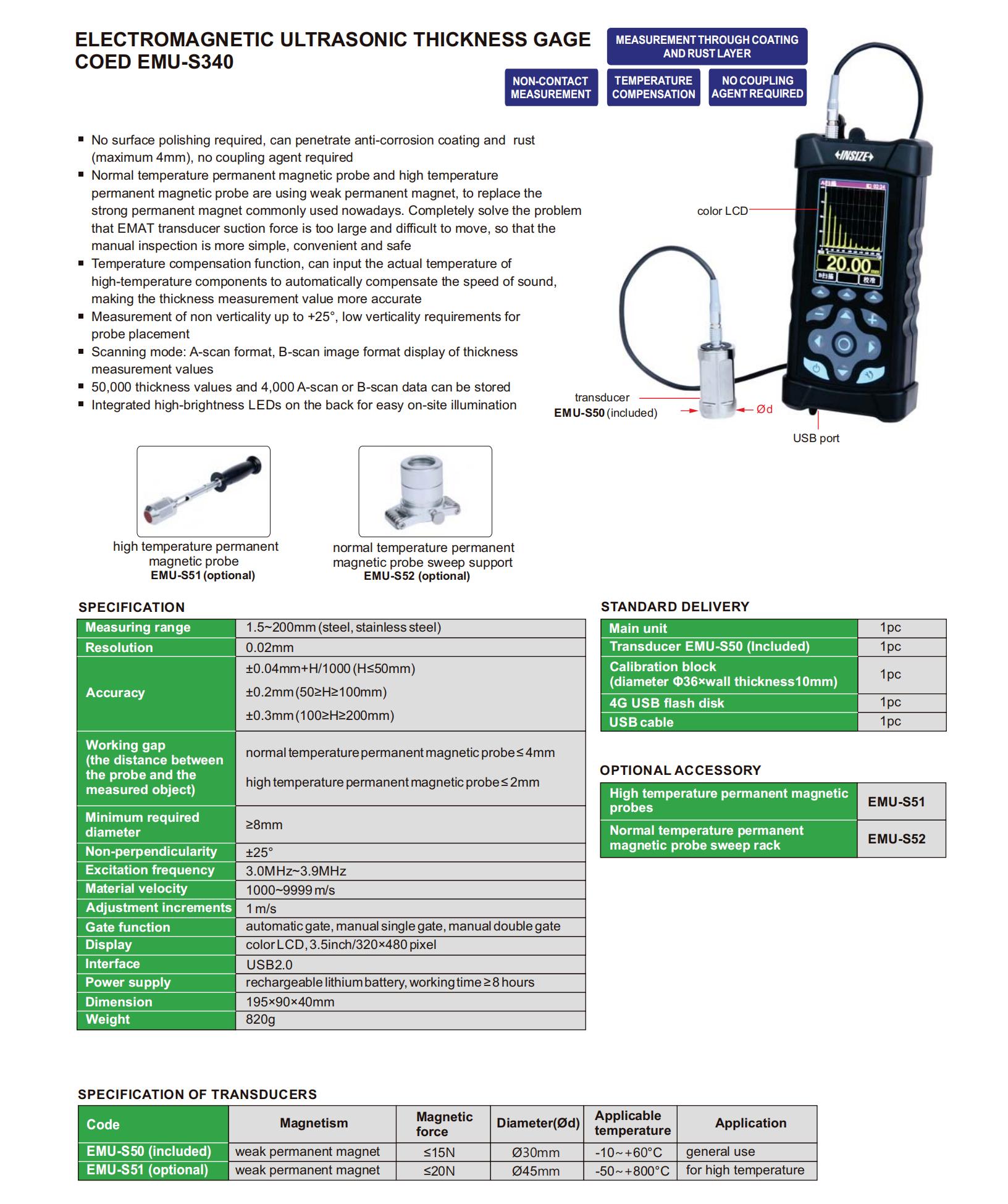

View the complete
product specifications
