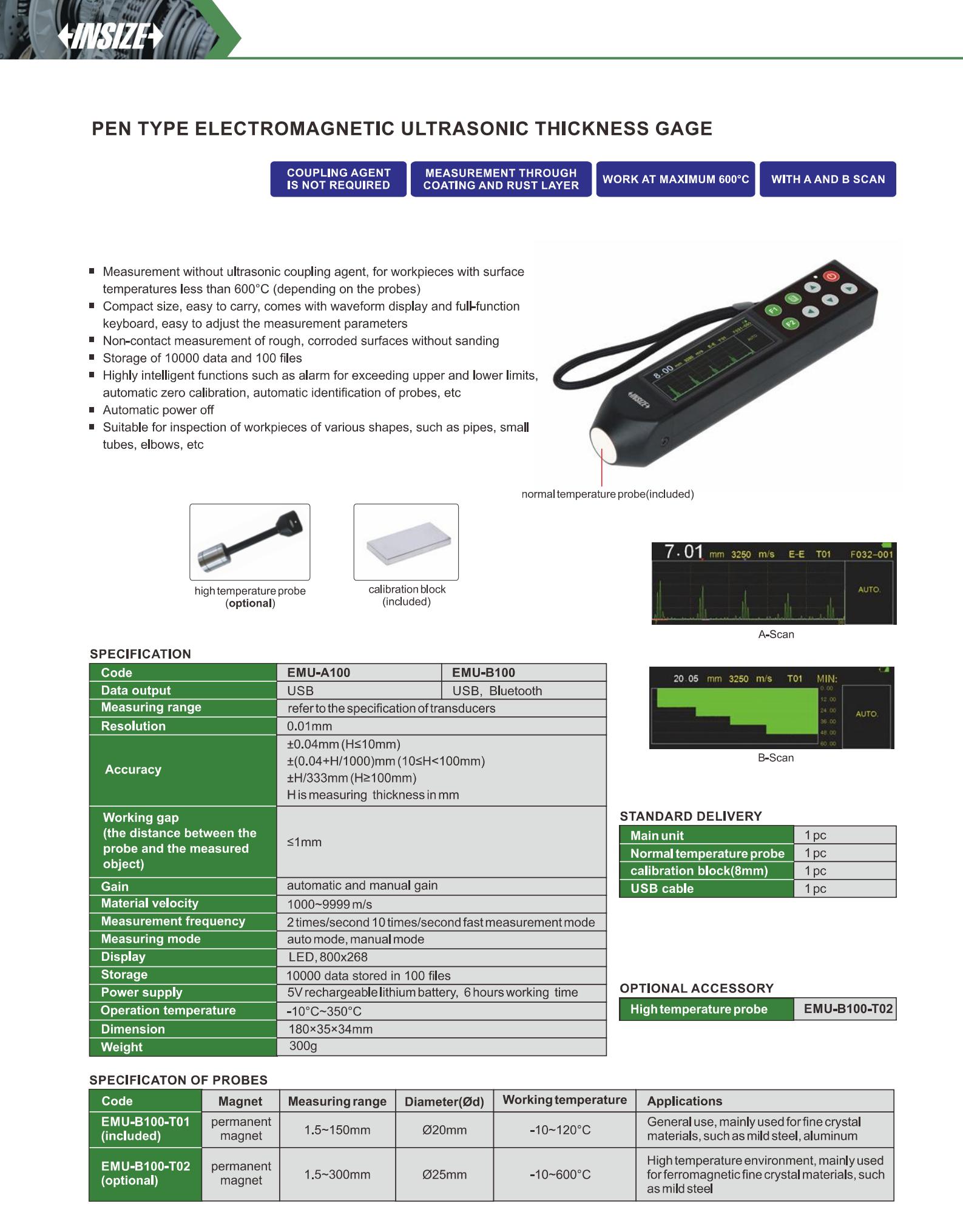

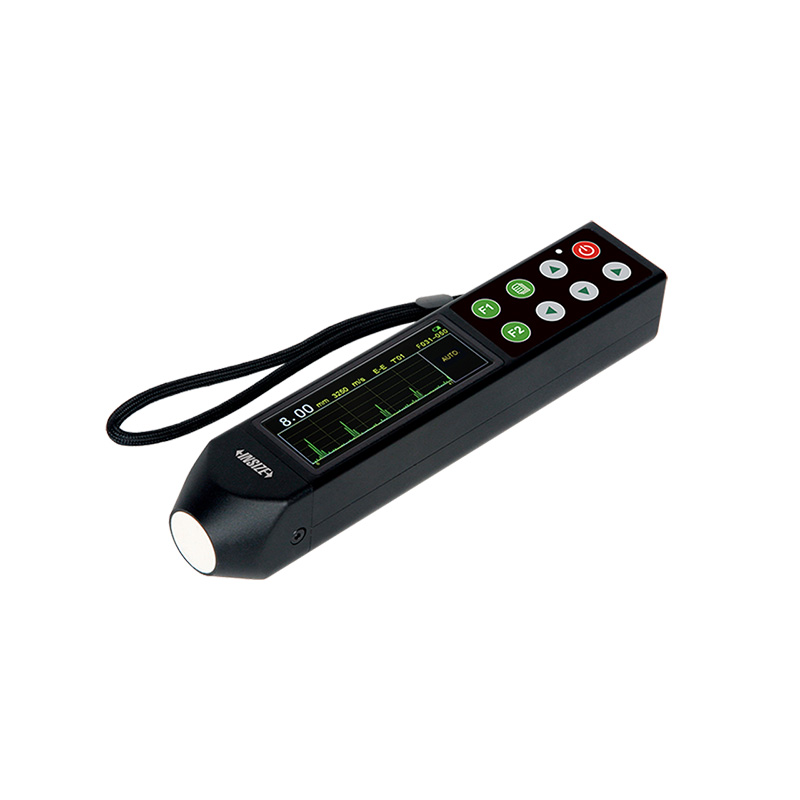

Pen Type Electromagnetic Ultrasonic Thickness Gauges
Code: EMU-A100/EMU-B100
Measurement without ultrasonic coupling agent, for workpieces with surface temperatures less than 600°C (depending on the probes)
Compact size, easy to carry, comes with waveform display and full-function keyboard, easy to adjust the measurement parameters
Non-contact measurement of rough, corroded surfaces without sanding
Storage of 10000 data and 100 files
Highly intelligent functions such as alarm for exceeding upper and lower limits, automatic zero calibration, automatic identification of probes, etc.
| Code | Range | Accuracy | Data transmission | Velocity | Probe diameter (ØD) |
|---|---|---|---|---|---|
| EMU-A100 | 1.5~150mm | ±0.04mm (H≤10mm), ±(0.04+H/1000)mm (10≤H<100mm), ±H/333mm (H≥100mm) | USB | 1000~9999 m/s | 20mm |
| EMU-B100 | 1.5~150mm | ±0.04mm (H≤10mm), ±(0.04+H/1000)mm (10≤H<100mm), ±H/333mm (H≥100mm) | USB, Bluetooth | 1000~9999 m/s | 20mm |
