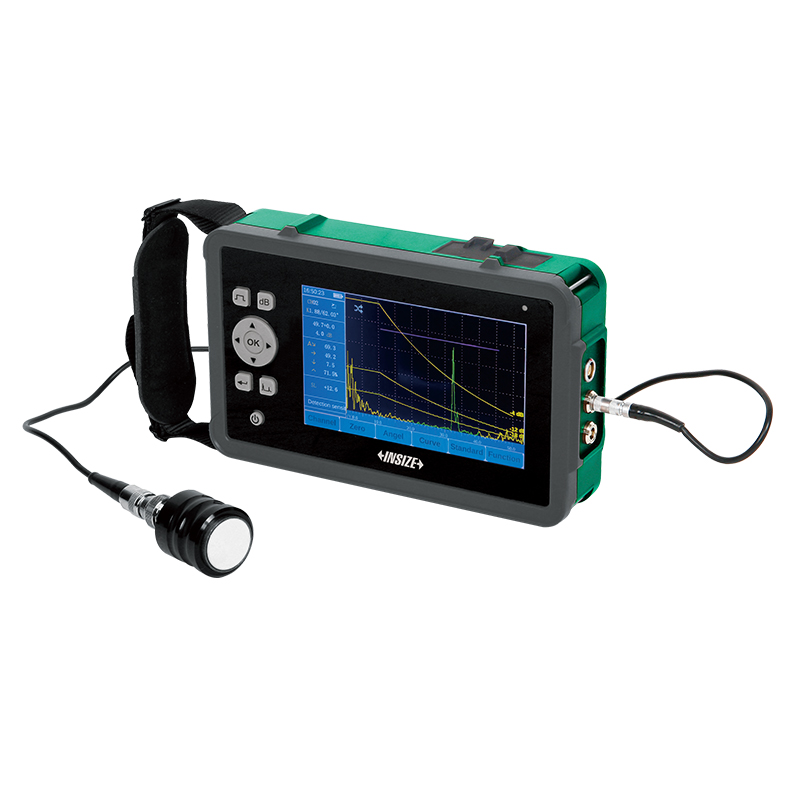

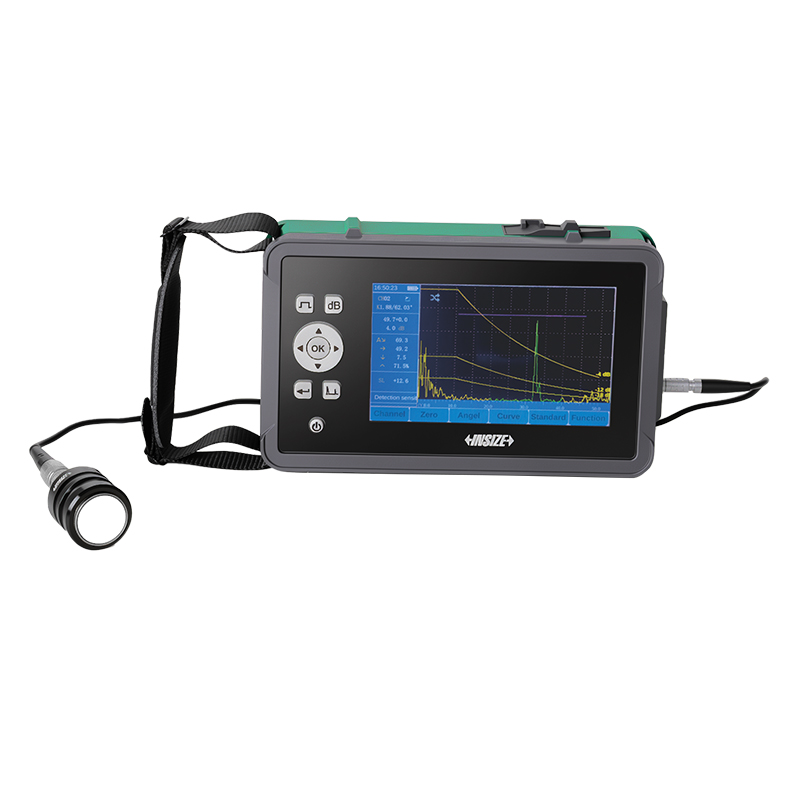

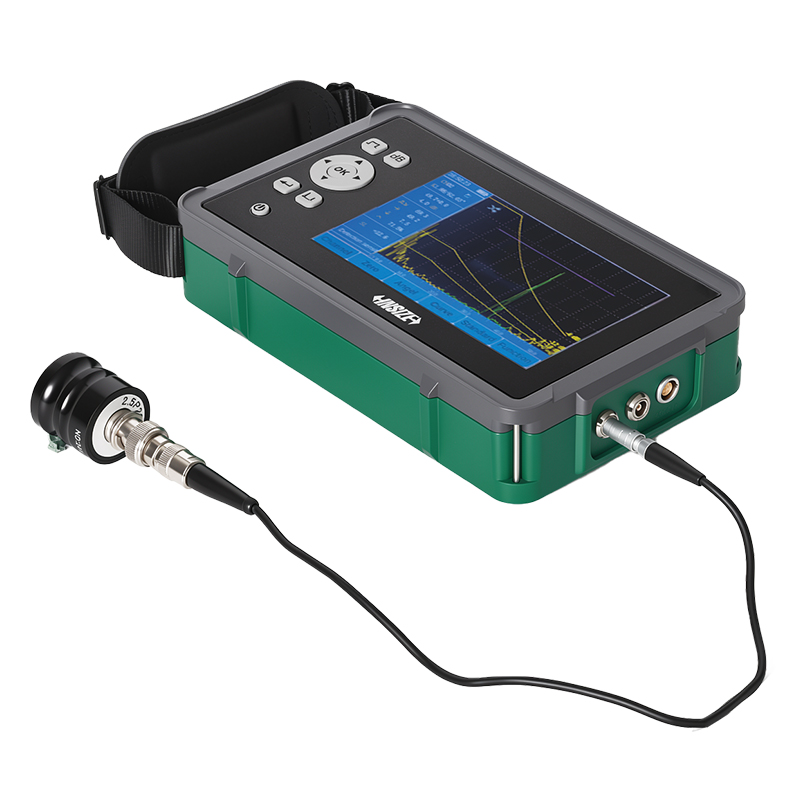

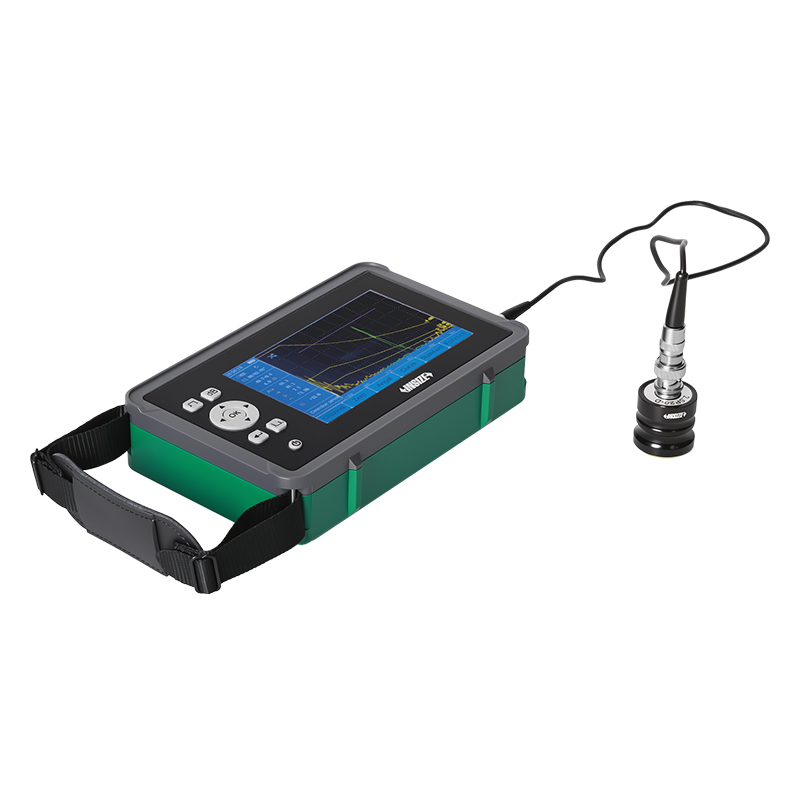

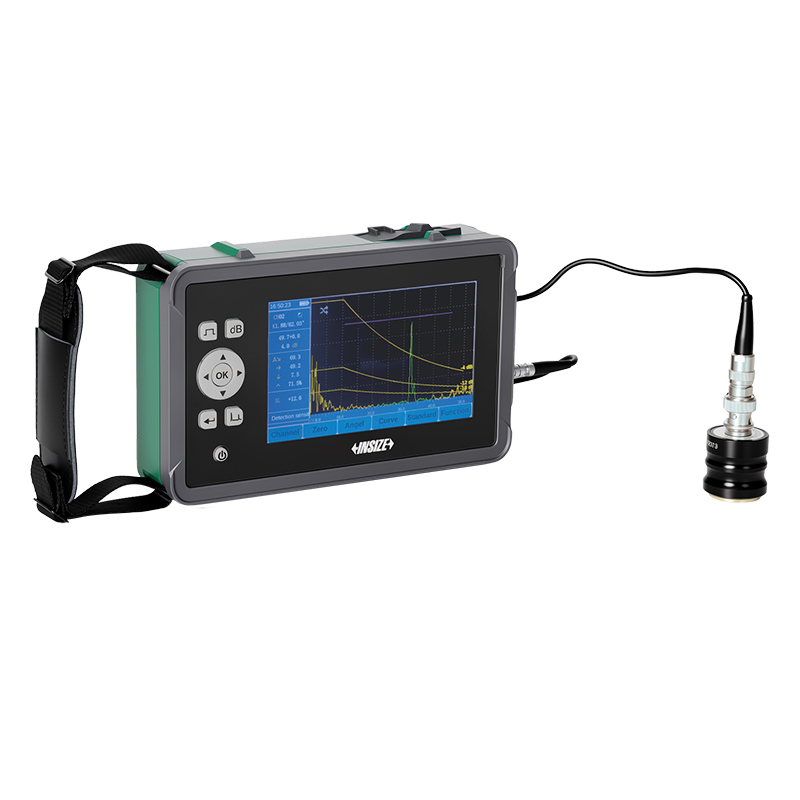

Digital Ultrasonic Flaw Detector (Excellent Type)
Code: UFD-C870
Small size, light weight, long battery standby time
High sensitivity, accurate defect positioning, super anti-interference ability, stable and reliable performance
Resistive touch screen, dust and oil resistant, sensitive touch
The performance of instrument and probe combinations can be tested automatically
Launch voltage, probe damping, pulse width, filter band adjustable, suitable for different materials, different thickness of the workpiece accurate detection
| Code | Range | Frequency | Vertical linearity | Horizontal linearity | Dynamic range | Resolving power | Sensitivity leavings |
|---|---|---|---|---|---|---|---|
| UFD-C870 | 0~20000mm | 0.4~20MHz | ≤2.0% | ≤0.1% | ≥32dB | >36dB | >62dB (200Ø2 flat bottom hole, narrow band) |
