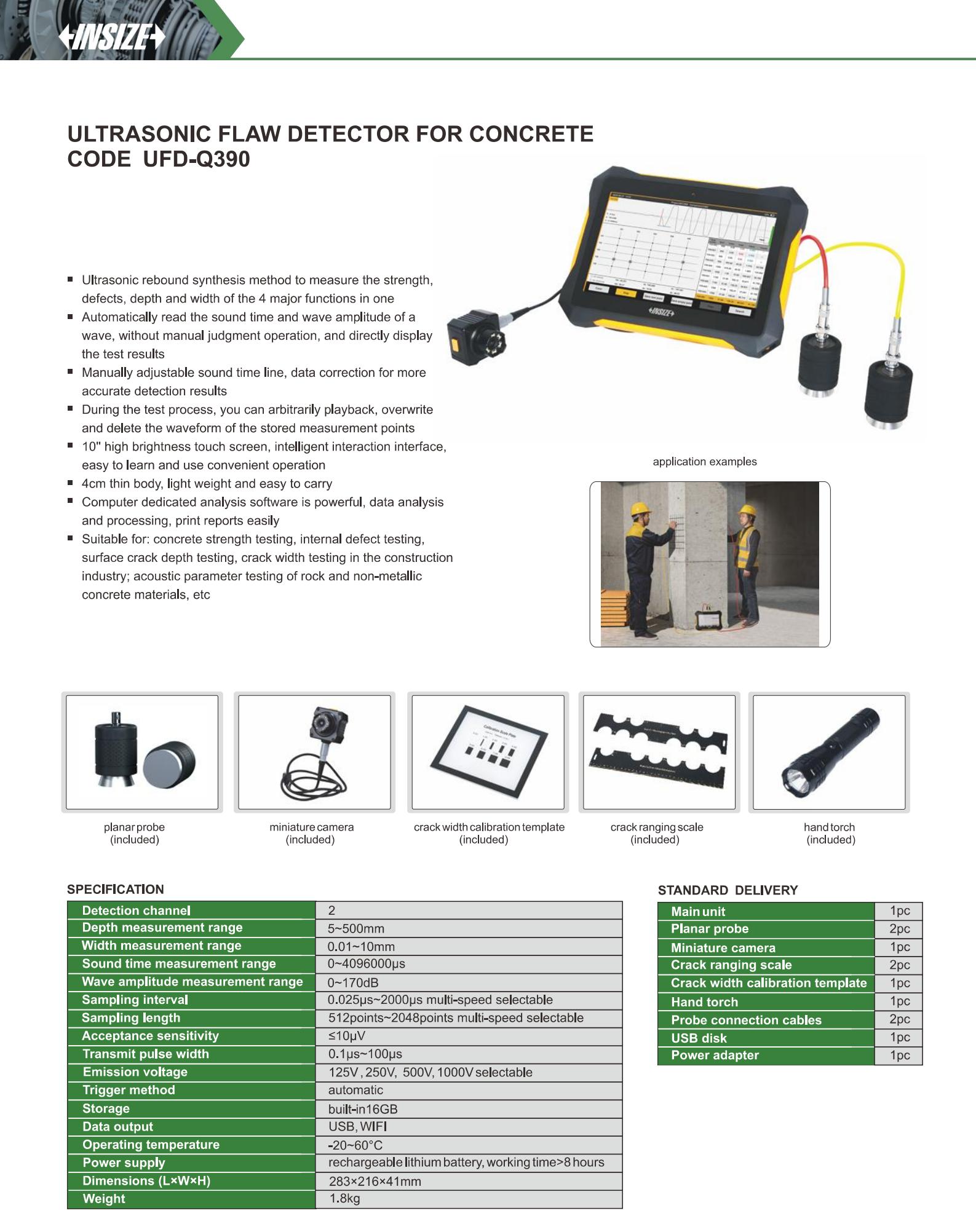

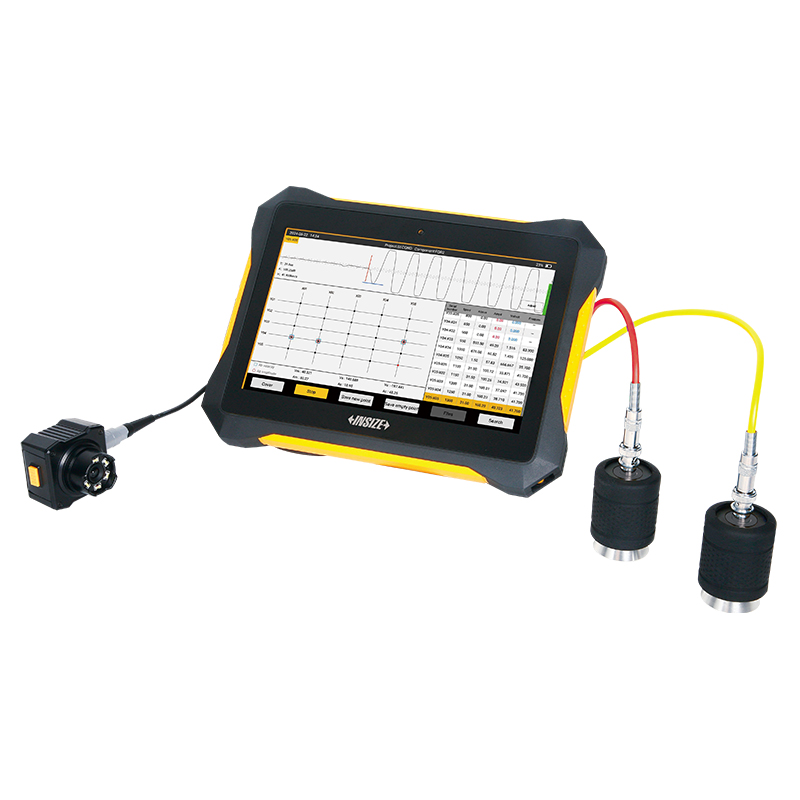

Ultrasonic Flaw Detector For Concrete
Code: UFD-Q390
Ultrasonic rebound synthesis method to measure the strength, defects, depth and width of the 4 major functions in one
Automatically read the sound time and wave amplitude of a wave, without manual judgment operation, and directly display the test results
Manually adjustable sound time line, data correction for more accurate detection results
During the test process, you can arbitrarily playback, overwrite, and delete the waveform of the stored measurement points
10'' high brightness touch screen, intelligent interaction interface, easy to learn and use convenient operation
4cm thin body, light weight and easy to carry
| Code | Range | Sensitivity |
|---|---|---|
| UFD-Q390 | Depth: 5~500mm, Width: 0.01~10mm, Sound time: 0~4096000µs, Wave amplitude: 0~170dB | ≤10µV |
