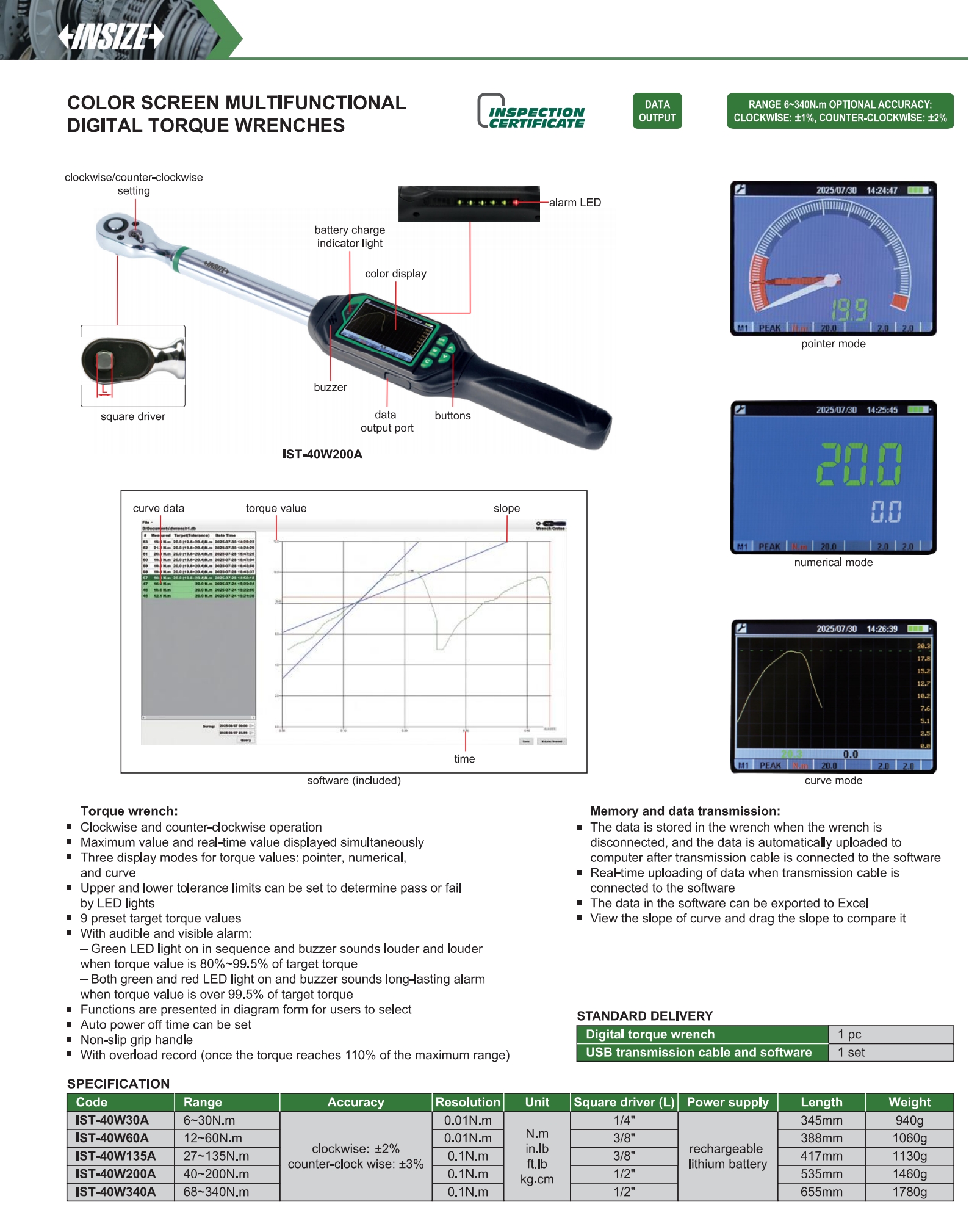

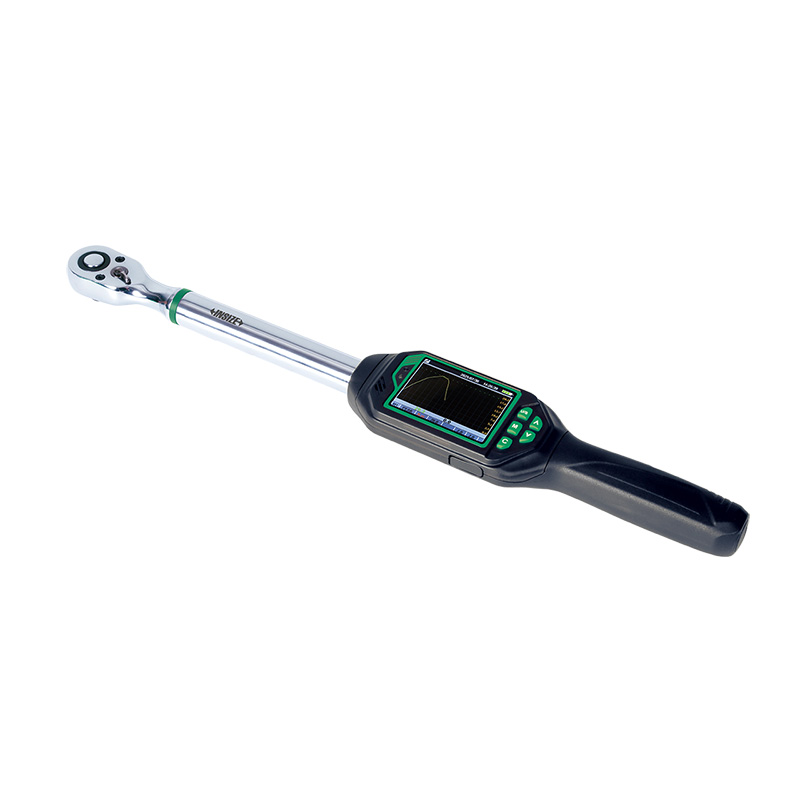

Color Screen Multifunctional Digital Torque Wrenches
Code: IST-40W Series
Clockwise and counter-clockwise operation
Maximum value and real-time value displayed simultaneously
Three display modes for torque values: pointer, numerical, and curve
Upper and lower tolerance limits can be set to determine pass or fail by LED lights
| Code | Type | Range | Data transmission | Presentation Format of Values | Head Type |
|---|---|---|---|---|---|
| IST-40W30A | Digital | 6~30N.m | Wired software transmission | Color screen and curve | Fixed ratchet head |
| IST-40W60A | Digital | 12~60N.m | Wired software transmission | Color screen and curve | Fixed ratchet head |
| IST-40W135A | Digital | 27~135N.m | Wired software transmission | Color screen and curve | Fixed ratchet head |
| IST-40W200A | Digital | 40~200N.m | Wired software transmission | Color screen and curve | Fixed ratchet head |
| IST-40W340A | Digital | 68~340N.m | Wired software transmission | Color screen and curve | Fixed ratchet head |
