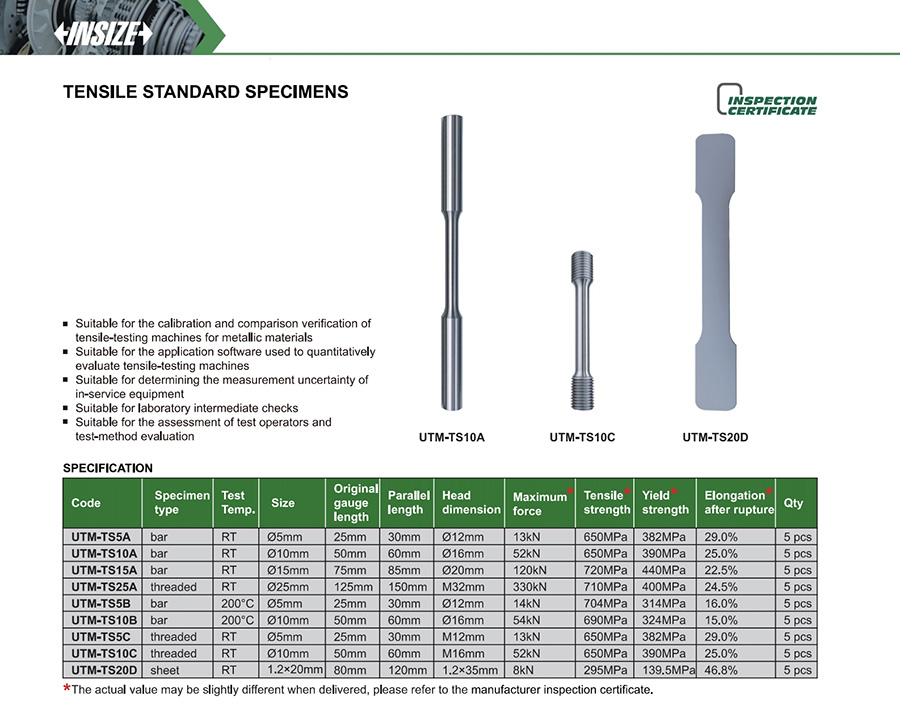

Tensile Standard Specimens
Code: UTM-TS Series
Suitable for the calibration and comparison verification of tensile-testing machines for metallic materials
Suitable for the application software used to quantitatively evaluate tensile-testing machines
Suitable for determining the measurement uncertainty of in-service equipment
Suitable for laboratory intermediate checks
Suitable for the assessment of test operators and test-method evaluation
| Code | Max. test force | Original gauge length |
|---|---|---|
| UTM-TS5A | 13kN | 25mm |

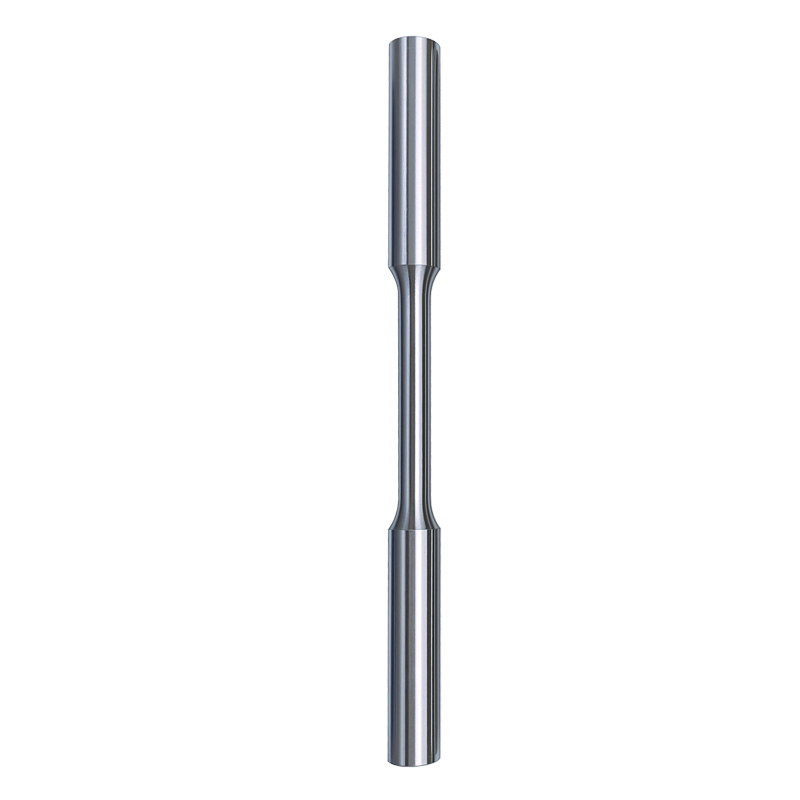

| UTM-TS10A | 52kN | 50mm |
| UTM-TS15A | 120kN | 75mm |
| UTM-TS25A | 330kN | 125mm |
| UTM-TS5B | 14kN | 25mm |
| UTM-TS10B | 54kN | 50mm |
| UTM-TS5C | 13kN | 25mm |

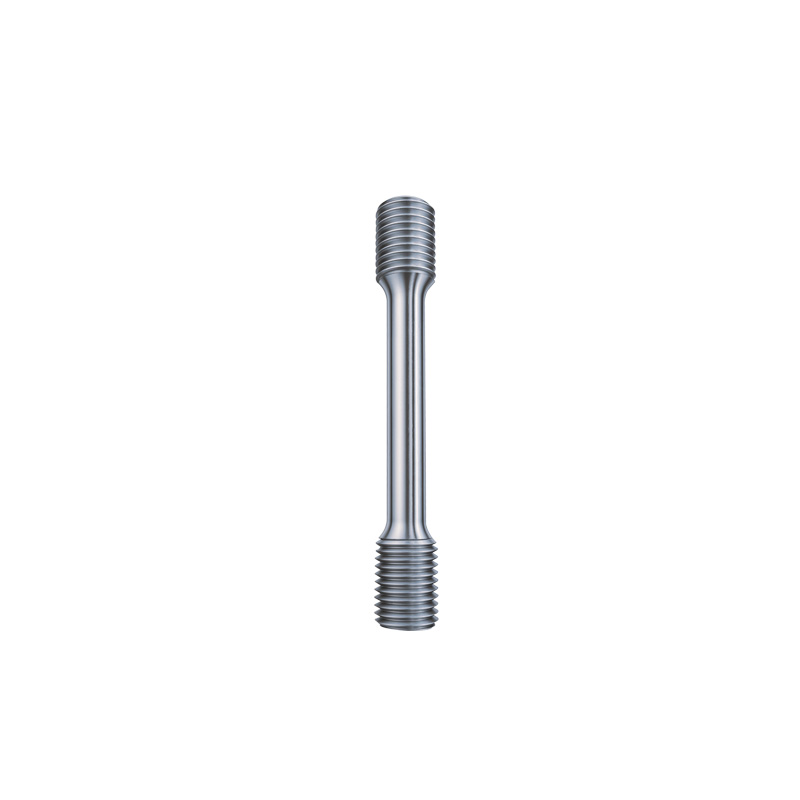

| UTM-TS10C | 52kN | 50mm |

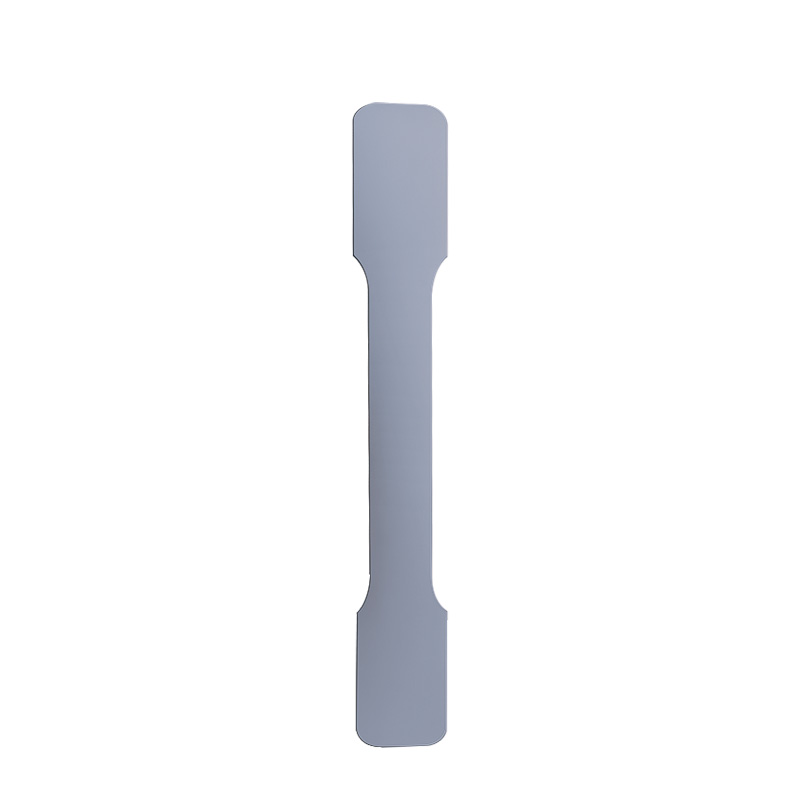

| UTM-TS20D | 8kN | 80mm |
