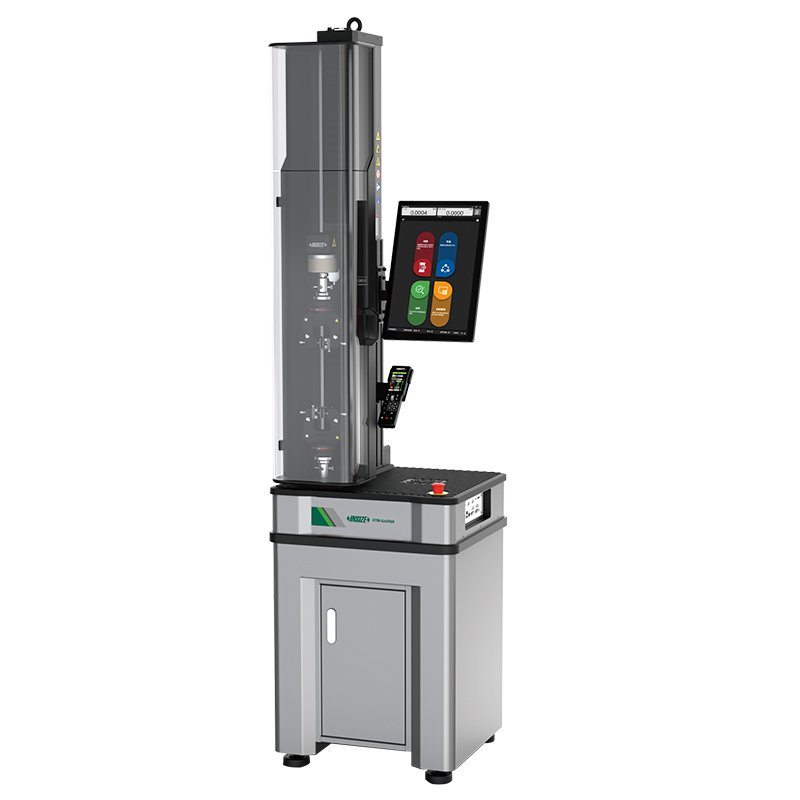

Electronic Universal Testing Machines (Advanced Type)
Code: UTM-GA Series
According to GB/T, ISO, ASTM etc.
For testing and researching the mechanical properties such as tension, compression, bending, shear, peeling and tearing of products including plastics, rubber, wires, electronic connectors (for insertion and extraction), metal wires, films, textiles, adhesives, biomaterials, elastomers, food packaging, small components, paper and springs
Single-column structure, with compactness and high rigidity
| Code | Type | Max. test force | Accuracy of test force |
|---|---|---|---|
| UTM-GA10 | electronic | 10N | ±0.5% |
| UTM-GA50 | electronic | 50N | ±0.5% |
| UTM-GA100 | electronic | 100N | ±0.5% |
| UTM-GA500 | electronic | 500N | ±0.5% |
| UTM-GA1000 | electronic | 1kN | ±0.5% |
| UTM-GA2500 | electronic | 2.5kN | ±0.5% |
| UTM-GA5000 | electronic | 5kN | ±0.5% |
View the complete
product specifications
