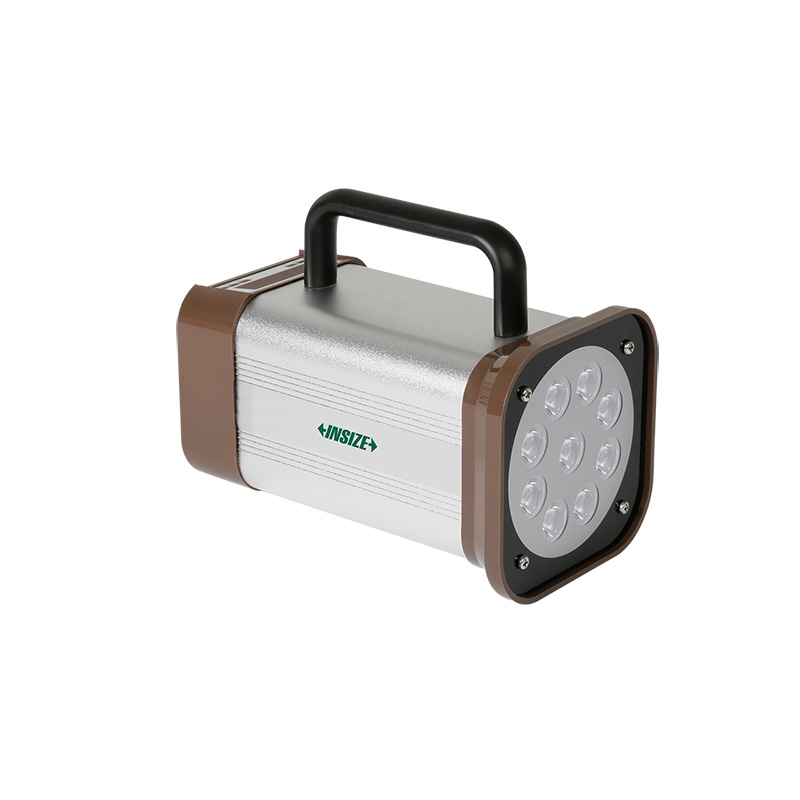

LED Stroboscopes
Code: ISQ-TS series
Quick and easy operation with rotary encoder and buttons
Adjust the LED flash frequency according to the rotational speed or cyclic movement frequency of the workpiece to make the workpiece appear stationary
Measure the rotational speed or cyclic movement frequency of the workpiece without physical contact or reflective stickers
External trigger mode allows automatic tracking with external sensors such as proximity switch (PNP-NO), Hall switch (PNP-NO), photoelectric switch, encoder etc.
Adjustable brightness and single flash duration
Built-in storage memory for flash frequency and parameter setting
Low battery indication
| Code | Range |
|---|---|
| ISQ-TS200K | 50.0FPM~36000FPM (flash per minute); 1.00Hz~600.00Hz |
| ISQ-TS200A-P | 50.0FPM~36000FPM (flash per minute); 1.00Hz~600.00Hz |
| ISQ-TS200A-K | 50.0FPM~36000FPM (flash per minute); 1.00Hz~600.00Hz |
| ISQ-TS200A-B | 50.0FPM~36000FPM (flash per minute); 1.00Hz~600.00Hz |
| ISQ-TS210K | 50.0FPM~99999FPM (flash per minute); 1.00Hz~1666.7Hz |
| ISQ-TS210A-P | 50.0FPM~99999FPM (flash per minute); 1.00Hz~1666.7Hz |
| ISQ-TS210A-K | 50.0FPM~99999FPM (flash per minute); 1.00Hz~1666.7Hz |
| ISQ-TS210A-B | 50.0FPM~99999FPM (flash per minute); 1.00Hz~1666.7Hz |

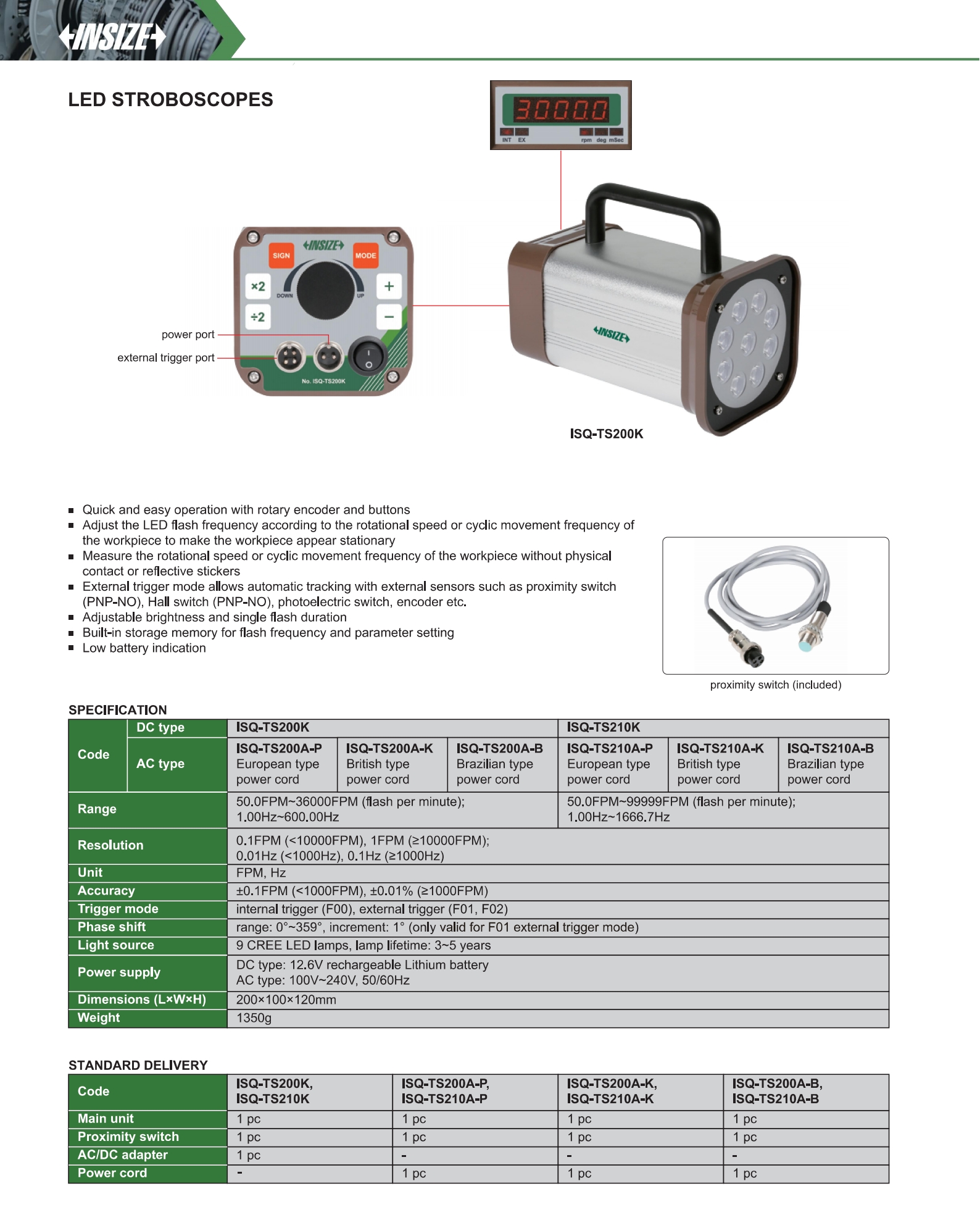

View the complete
