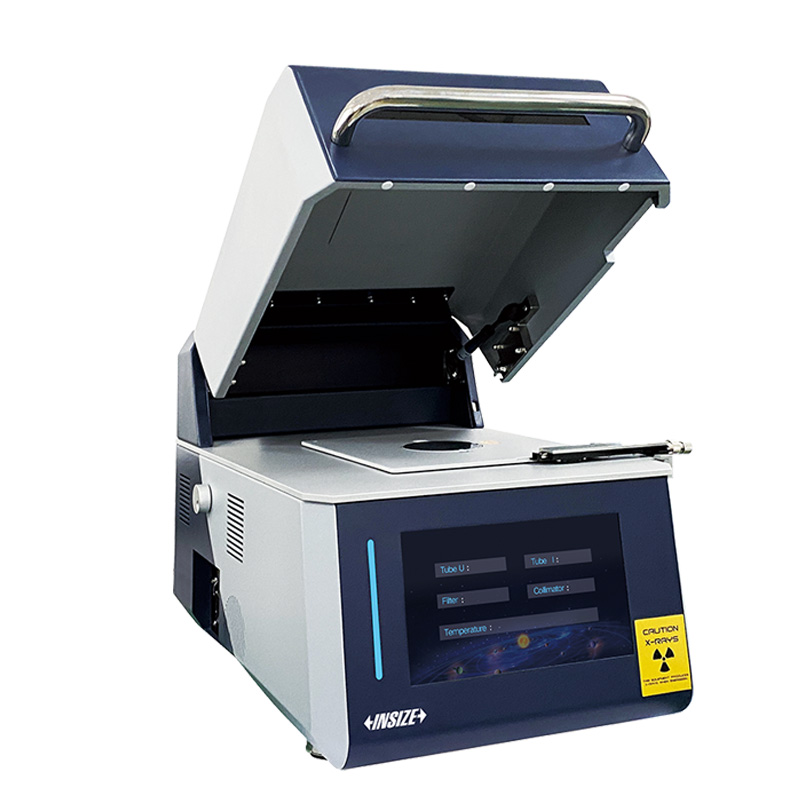

XRF Plating Thickness Instrument
Code: XRF-PT230
According to DIN ISO 3497, DIN 50987, and ASTM B568
Application fields: electroplating plating thickness analysis, inspection of electronic components such as connectors, fastener industry, automotive parts, hardware industry (household equipment and accessories, such as Cr/Ni/CuZn(ABS)), new energy industry (photovoltaic welding wire, etc.), thickness analysis of accessories, Ni/Cu/Ni/NdFeB on rubidium iron boron magnets, metal cation detection in electroplating solution, etc.
It can detect 90 plating elements
Equipped with a micro-focus X-ray generator and an advanced light path conversion focusing system, the minimum measurable area is up to 0.03mm²
| Code | Detection method | Application | Analysis material | Type | Non destructive |
|---|---|---|---|---|---|
| XRF-PT230 | XRF | plating measurement | metal plating | benchtop | yes |

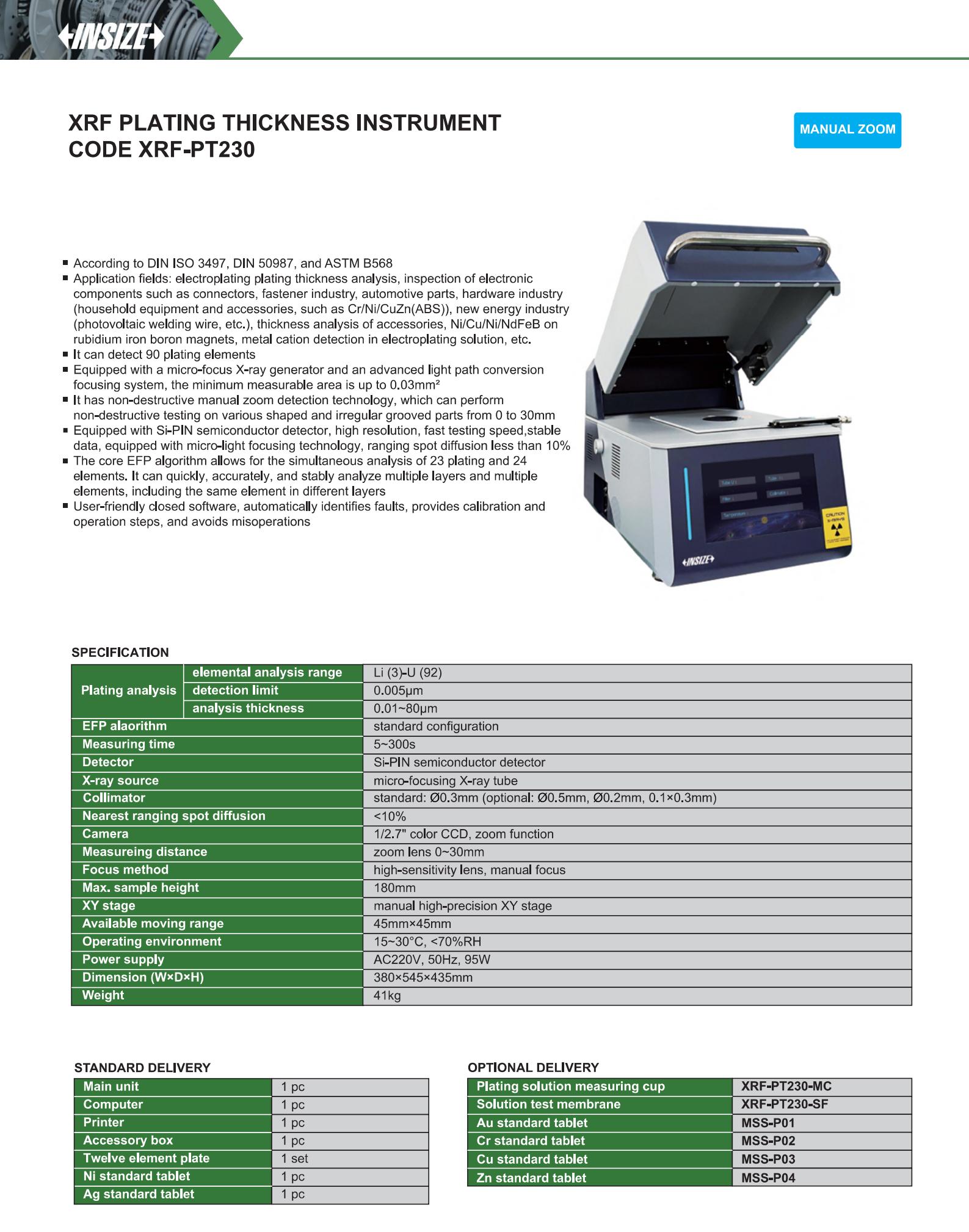

View the complete
product specifications
