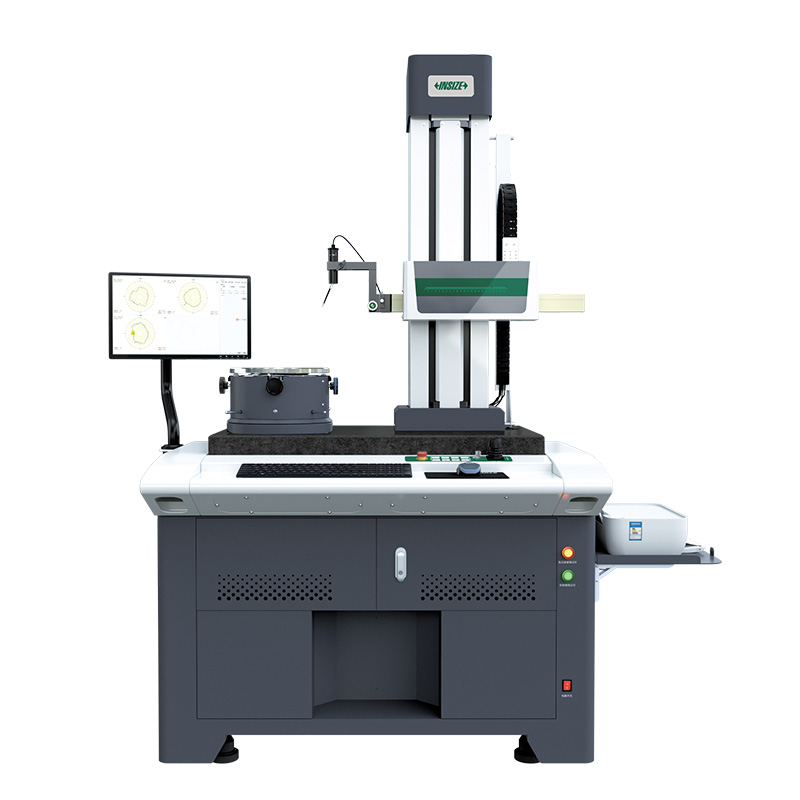

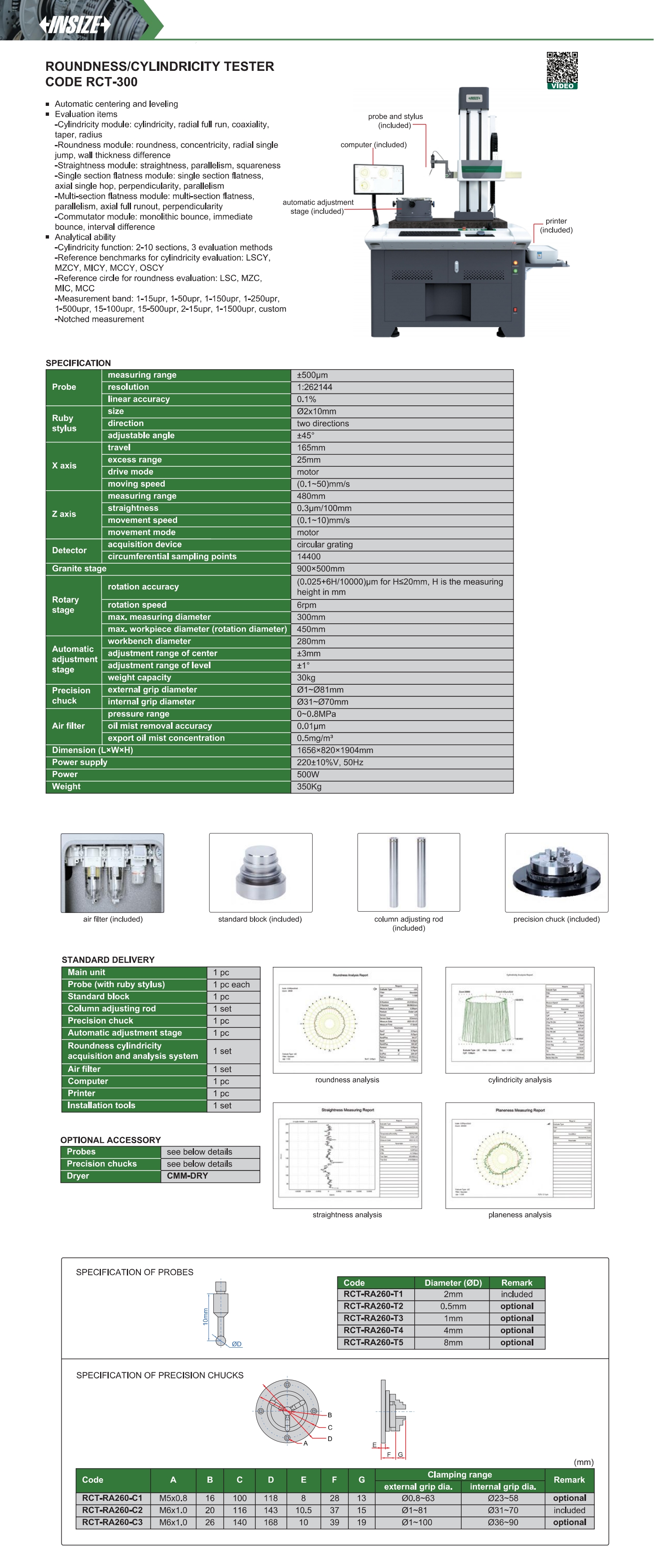

Roundness/Cylindricity Tester

Automatic centering and leveling

Evaluation items

-Cylindricity module: cylindricity, radial full run, coaxiality, taper, radius

-Roundness module: roundness, concentricity, radial single jump, wall thickness difference

-Straightness module: straightness, parallelism, squareness

-Single section flatness module: single section flatness, axial single hop, perpendicularity, parallelism

-Multi-section flatness module: multi-section flatness, parallelism, axial full runout, perpendicularity

-Commutator module: monolithic bounce, immediate bounce, interval difference

Analytical ability

-Cylindricity function: 2-10 sections, 3 evaluation methods

-Reference benchmarks for cylindricity evaluation: LSCY, MZCY, MICY, MCCY, OSCY

-Reference circle for roundness evaluation: LSC, MZC, MIC, MCC

-Measurement band: 1-15upr, 1-50upr, 1-150upr, 1-250upr, 1-500upr, 15-100upr, 15-500upr, 2-15upr, 1-1500upr, custom

-Notched measurement
