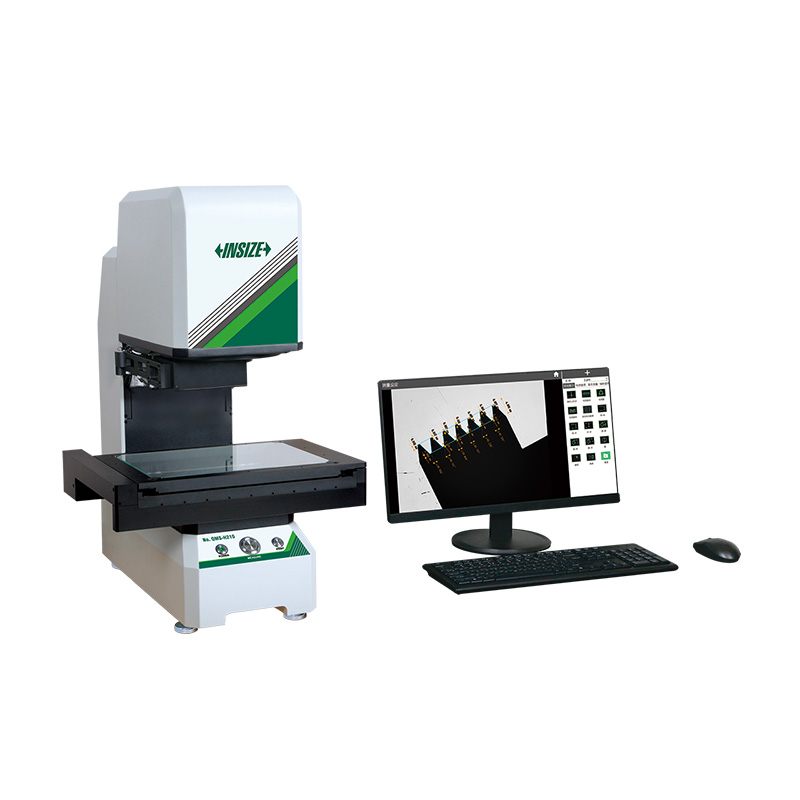

High Precision Quick Measurement System
Code: QMS-H210
One or more workpieces can be measured by one step operation
Place workpieces at any position
Focus and measure automatically
Measurement of 999+dimensions and 300+workpieces
Suitable for parts with high precision for medium and small sizes
| Code | Range | Without stitching accuracy | With stitching accuracy | Without stitching repeatability | With stitching repeatability | Max. load |
|---|---|---|---|---|---|---|
| QMS-H210 | wide view field:210×130mm/ small view field:200×100mm | wide view field:±2μm/ small view field:±0.7μm | wide view field:±(4+0.02L)μm/ small view field:±(2.7+0.02L)μm | wide view field:±1μm/ small view field:±0.25μm | wide view field:±2μm/ small view field:±1.25μm | 5kg |
