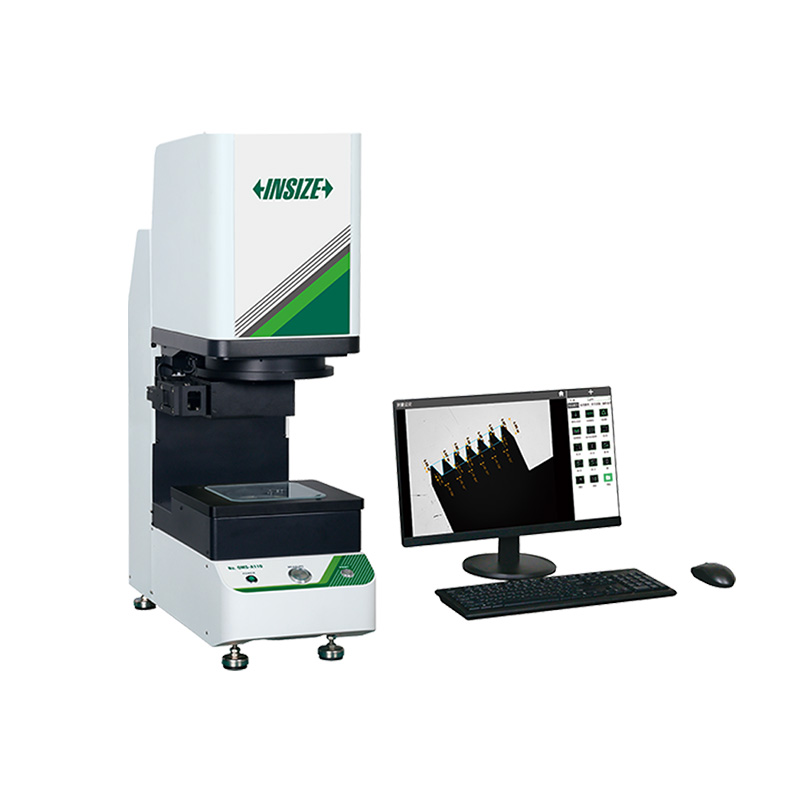

Quick Measurement Systems (Without Stitching)
Code: QMS-A110/A200
One or more workpieces can be measured by one step operation
Place workpieces at any position
Focus and measure automatically
Measurement of 999+dimensions and 200+workpieces
| Code | Range | Accuracy | Repeatability | Max. load |
|---|---|---|---|---|

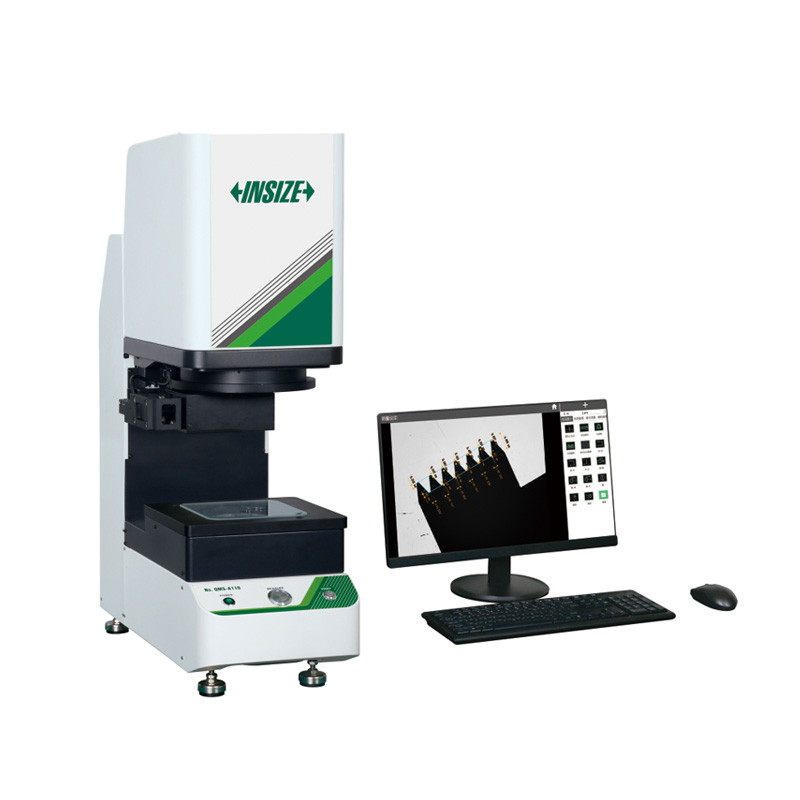

| QMS-A110 | 98×78mm | ±3μm | ±1μm | 5kg |

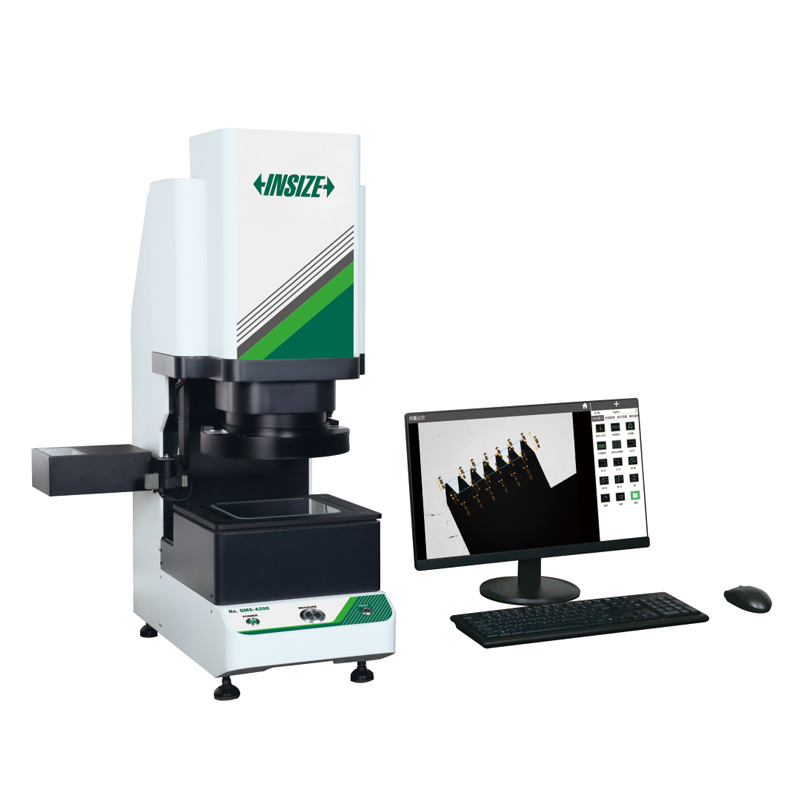

| QMS-A200 | wide view field:148×108mm/ small view field:48×33mm | wide view field:±5μm/small view field:±2μm | wide view field:±1μm/small view field:±0.5μm | 5kg |

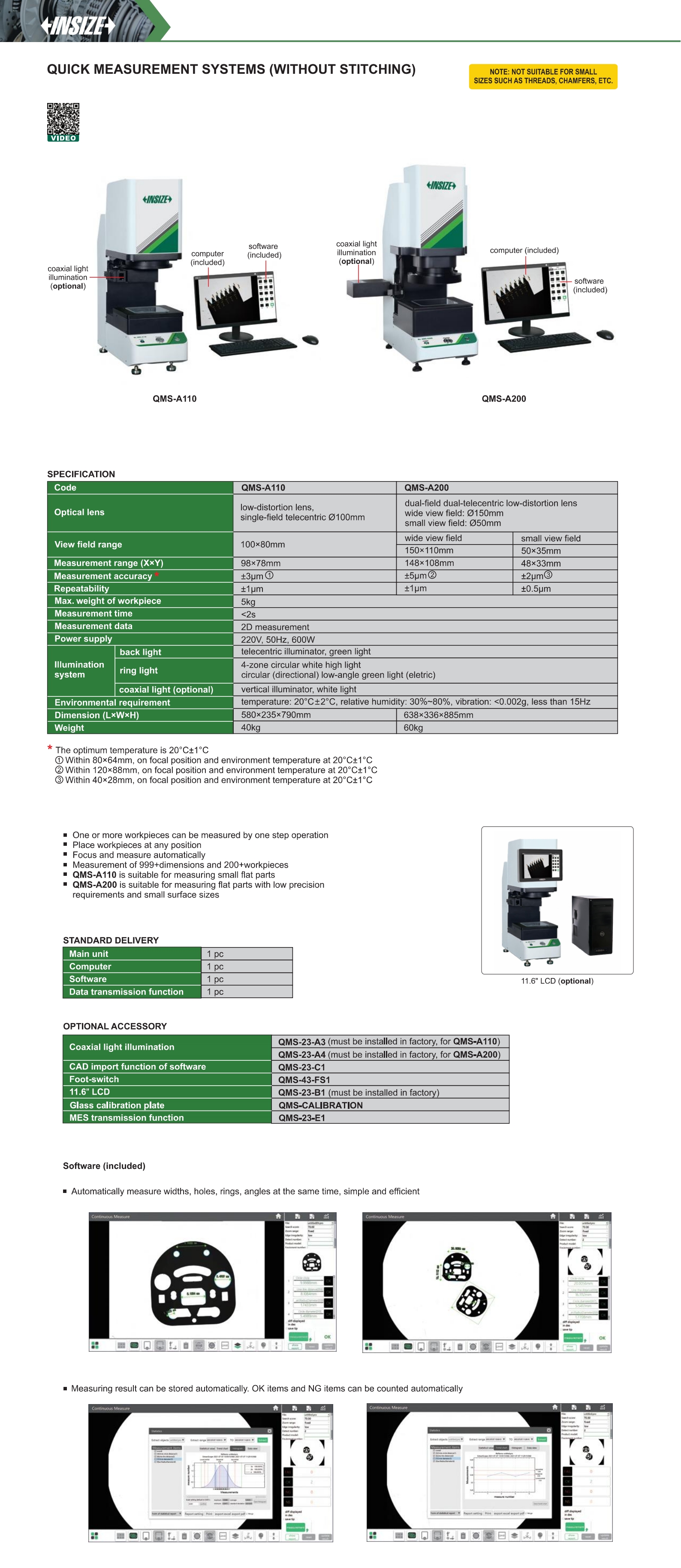

View the complete
