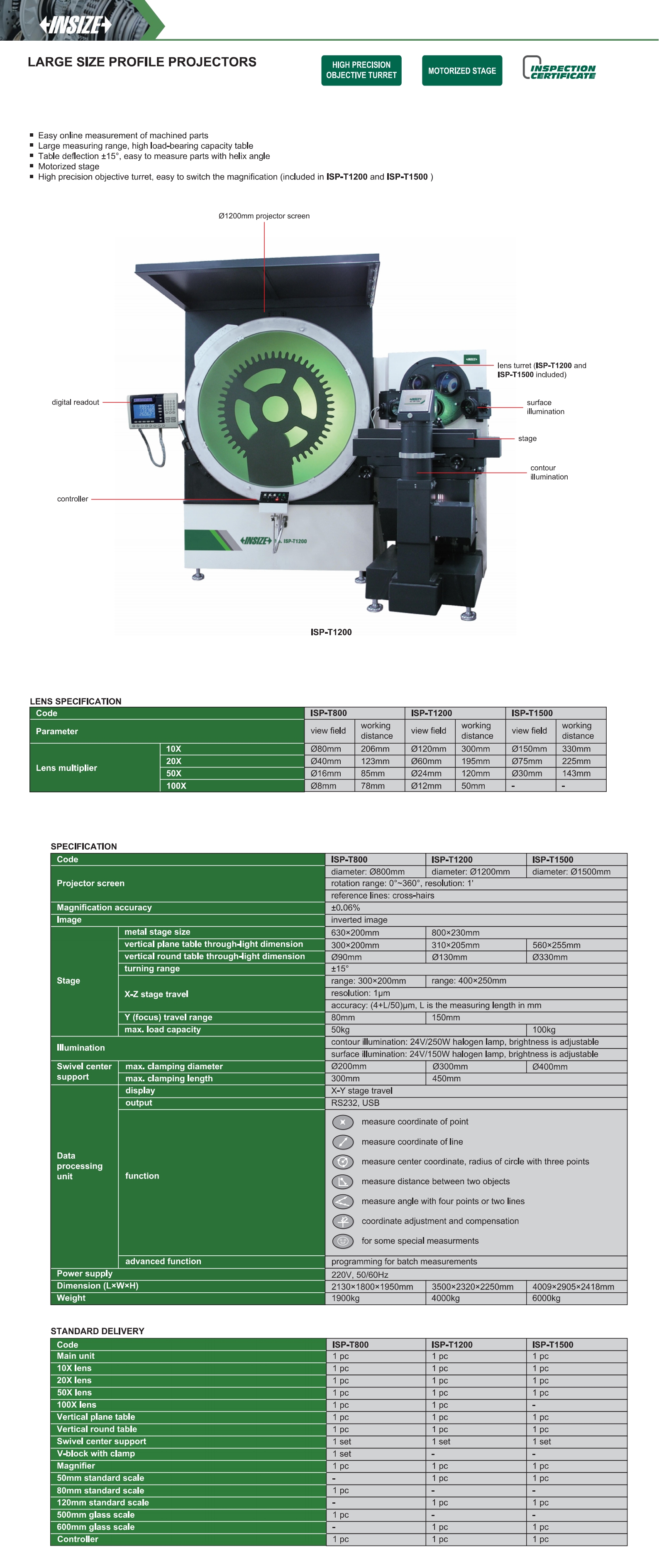

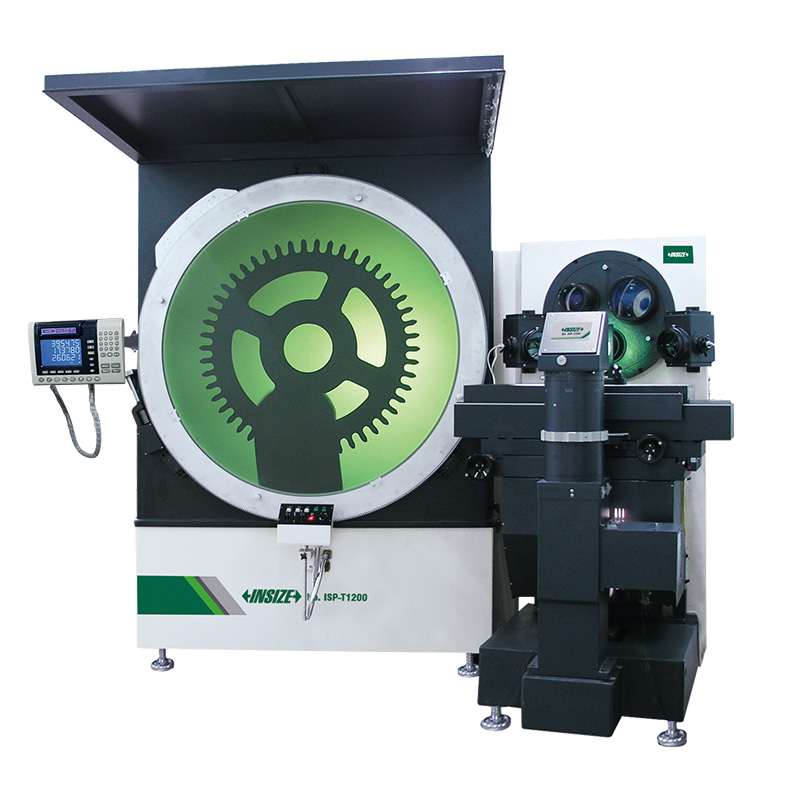

Large Size Profile Projectors
Code: ISP-T Series
Easy online measurement of machined parts
Large measuring range, high load-bearing capacity table
Table deflection ±15°, easy to measure parts with helix angle
Motorized stage
High precision objective turret, easy to switch the magnification (included in ISP-T1200 and ISP-T1500 )
| Code | Type | Range | Accuracy | Resolution | Edge detector | Projector screen diameter | Image |
|---|---|---|---|---|---|---|---|
| ISP-T800 | horizontal | 300×200mm | (4+L/50)µm | 1µm | not included | Ø800mm | inverted image |
| ISP-T1200 | horizontal | 400×250mm | (4+L/50)µm | 1µm | not included | Ø1200mm | inverted image |
| ISP-T1500 | horizontal | 400×250mm | (4+L/50)µm | 1µm | not included | Ø1500mm | inverted image |
