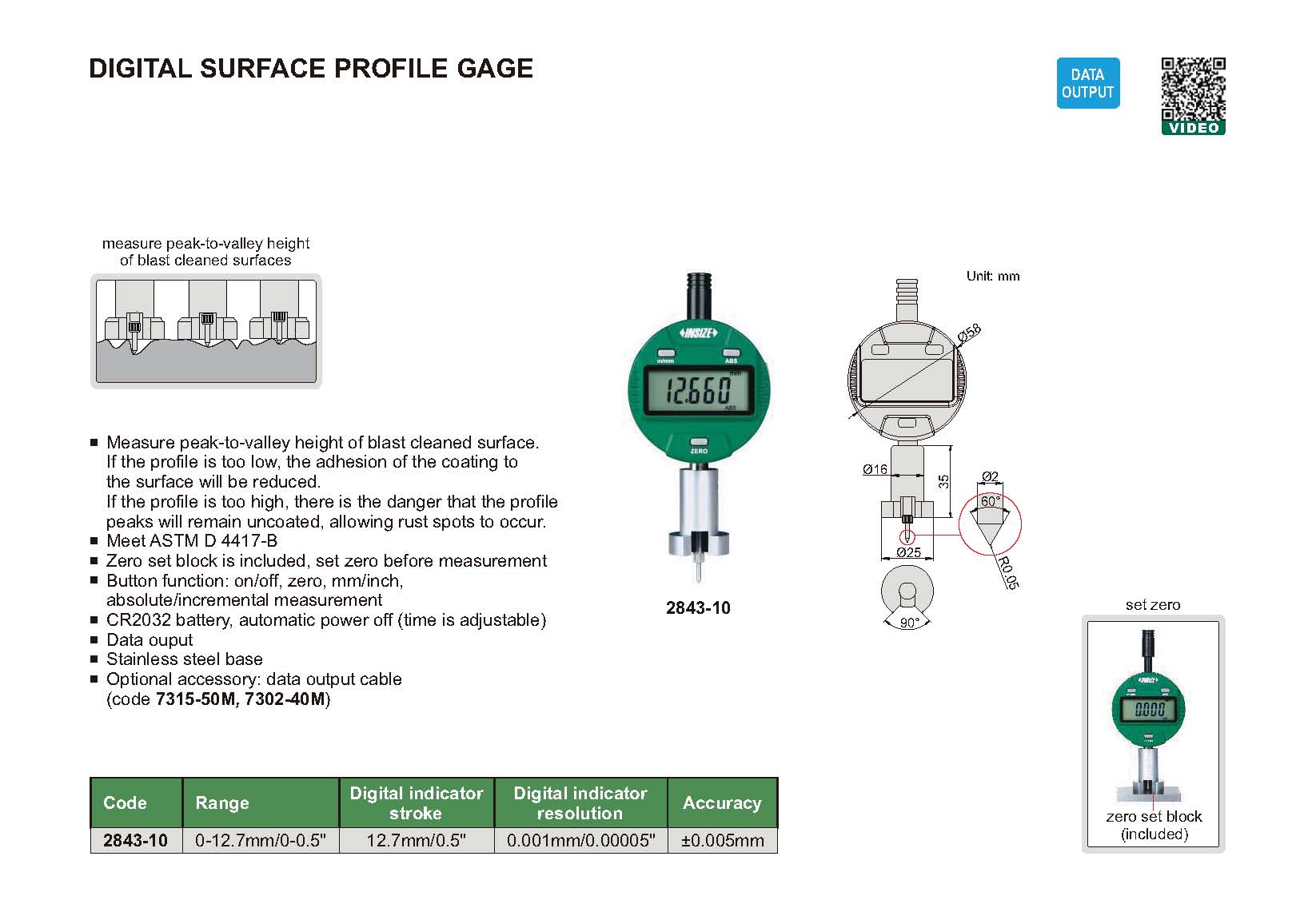

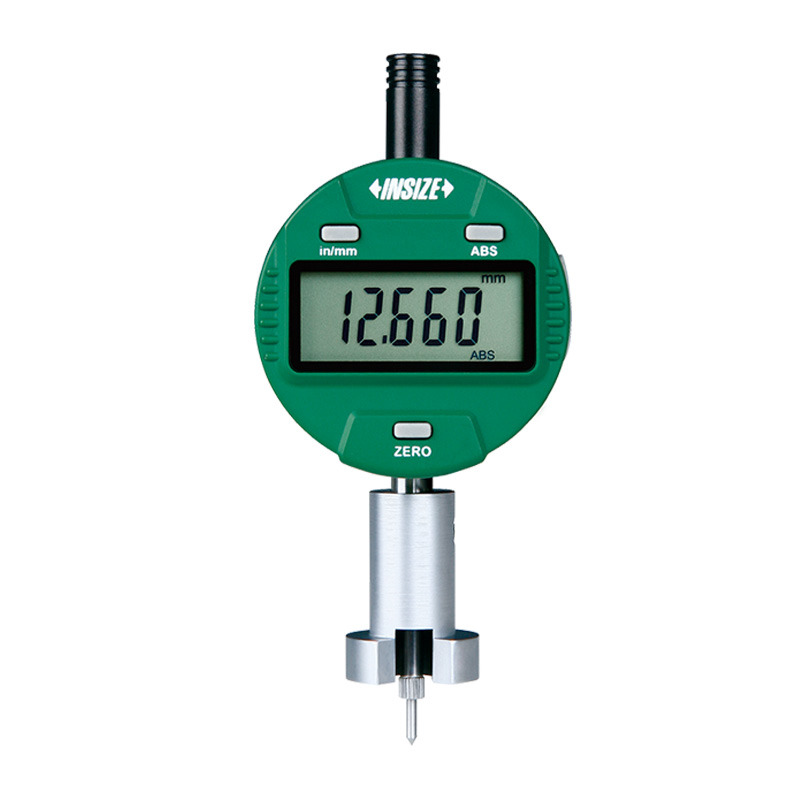

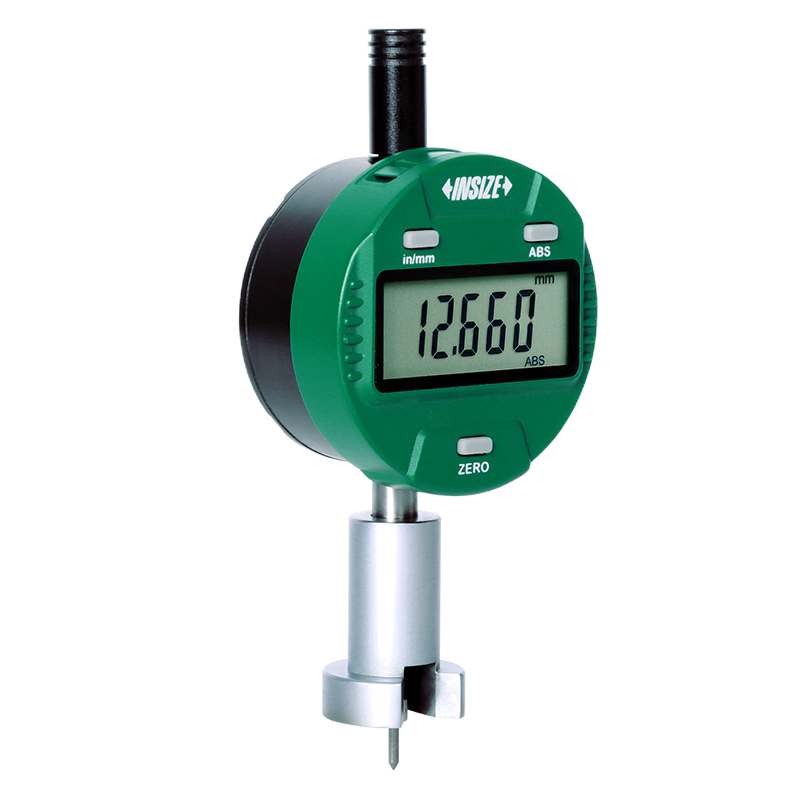

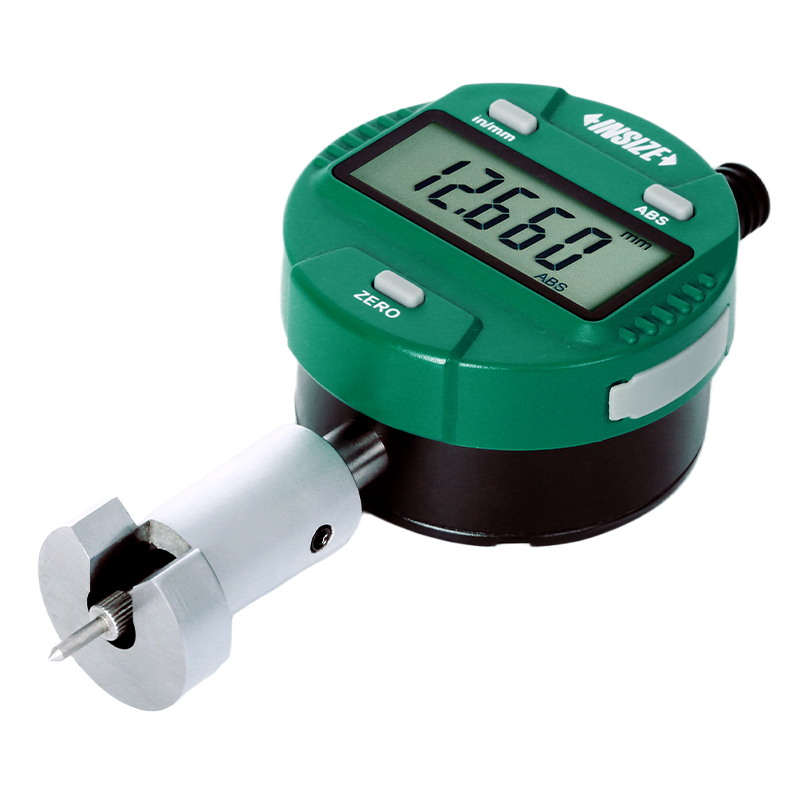

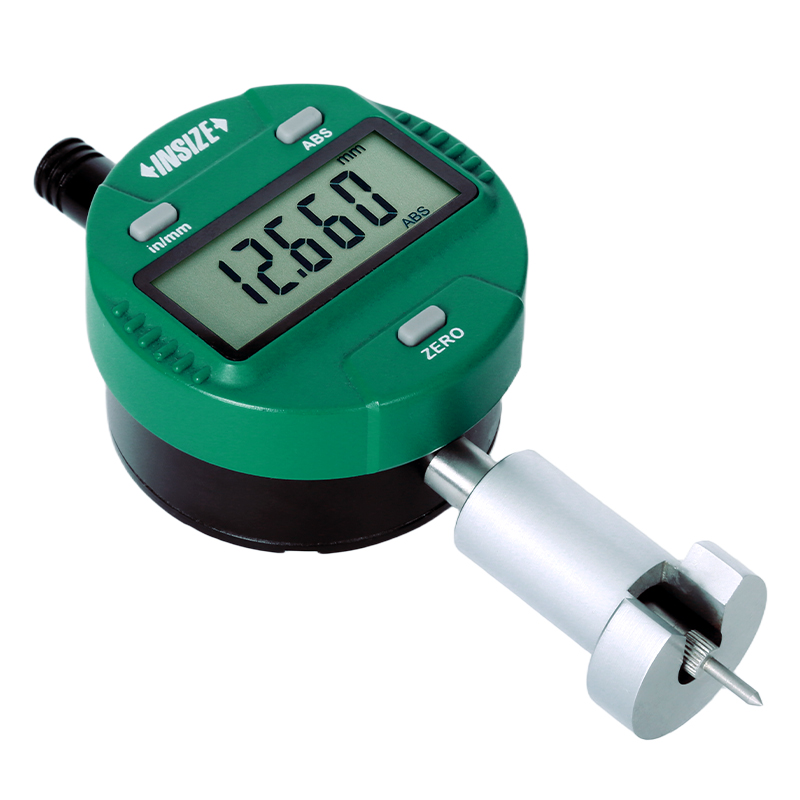

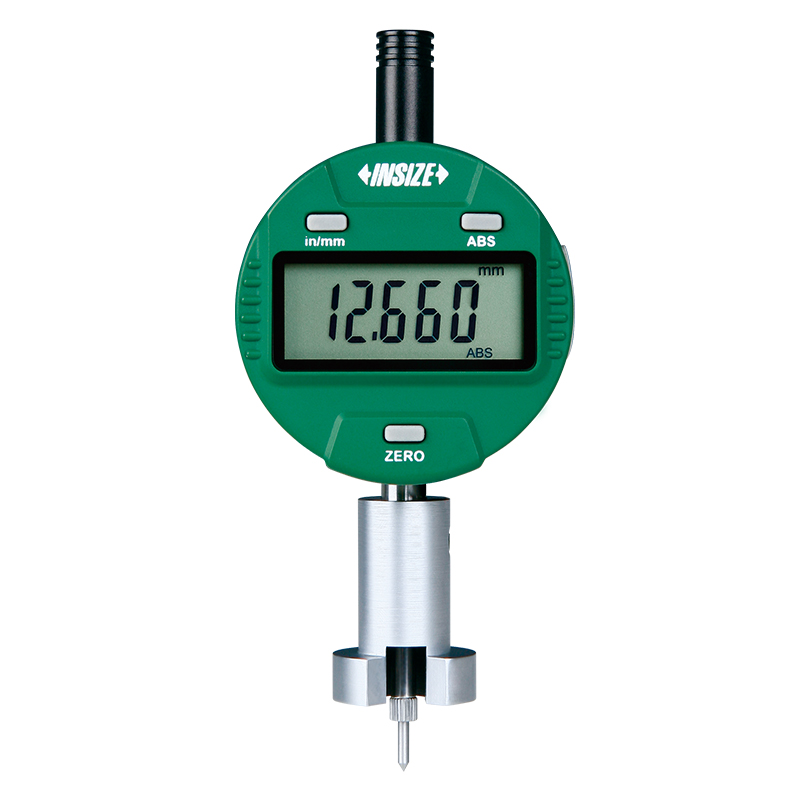

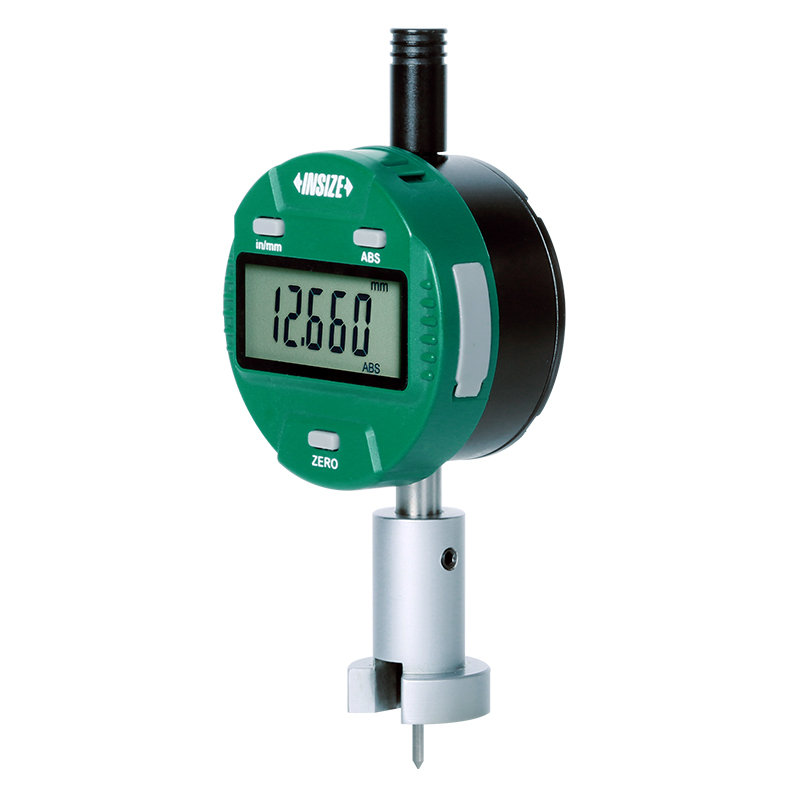

Digital Surface Profile Gauge
Code: 2843
Measure peak-to-valley height of blast cleaned surface. If the profile is too low, the adhesion of the coating to the surface will be reduced.If the profile is too high, there is the danger that the profilepeaks will remain uncoated, allowing rust spots to occur.
Meet ASTM D 4417-B
Zero set block is included, set zero before measurement
Button function: on/off, zero, mm/inch, absolute/incremental measurement
CR2032 battery, automatic power off (time is adjustable)
Stainless steel base
Optional accessory: wireless transmitter code 7315-50M (receiver is needed)
| Code | Range | Accuracy | Dial indicator resolution |
|---|---|---|---|
| 2843-10 | 0-12.7mm/0-0.5" | ±0.005mm | 0.001mm/0.00005" |
