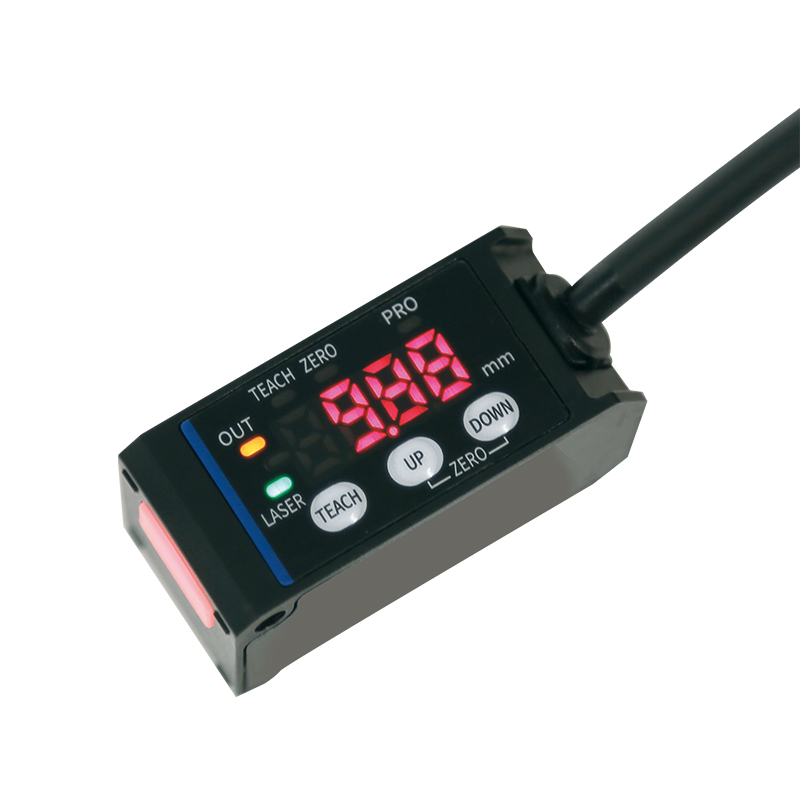

Laser Displacement Sensors (New)
Code: LDS-N Series
High accuracy, non-contact measurement, high speed response, multiple measurement modes, environmental adaptability, programmable control, rich data output interface and easy maintenance
Can be used in automated production lines, robotic arms, packaging equipment, printing equipment, medical equipment etc.
| Code | Type | Range | Accuracy |
|---|---|---|---|
| LDS-N30 | Laser | 25~35mm | ±0.2%FS |
| LDS-N50 | Laser | 35~65mm | ±0.2%FS |
| LDS-N100 | Laser | 65~135mm | ±0.2%FS |
| LDS-N200 | Laser | 120~280mm | ±0.2%FS |
| LDS-N400 | Laser | 200~600mm | ±0.2%FS(＜400mm) ±0.3%FS(＞400mm) |
| LDS-N30-MC | Laser | 25~35mm | ±0.2%FS |
| LDS-N50-MC | Laser | 35~65mm | ±0.2%FS |
| LDS-N100-MC | Laser | 65~135mm | ±0.2%FS |
| LDS-N200-MC | Laser | 120~280mm | ±0.2%FS |
| LDS-N400-MC | Laser | 200~600mm | ±0.2%FS(＜400mm) ±0.3%FS(＞400mm) |
| LDS-N30-RS | Laser | 25~35mm | ±0.2%FS |
| LDS-N50-RS | Laser | 35~65mm | ±0.2%FS |
| LDS-N100-RS | Laser | 65~135mm | ±0.2%FS |
| LDS-N200-RS | Laser | 120~280mm | ±0.2%FS |
| LDS-N400-RS | Laser | 200~600mm | ±0.2%FS(＜400mm) ±0.3%FS(＞400mm) |

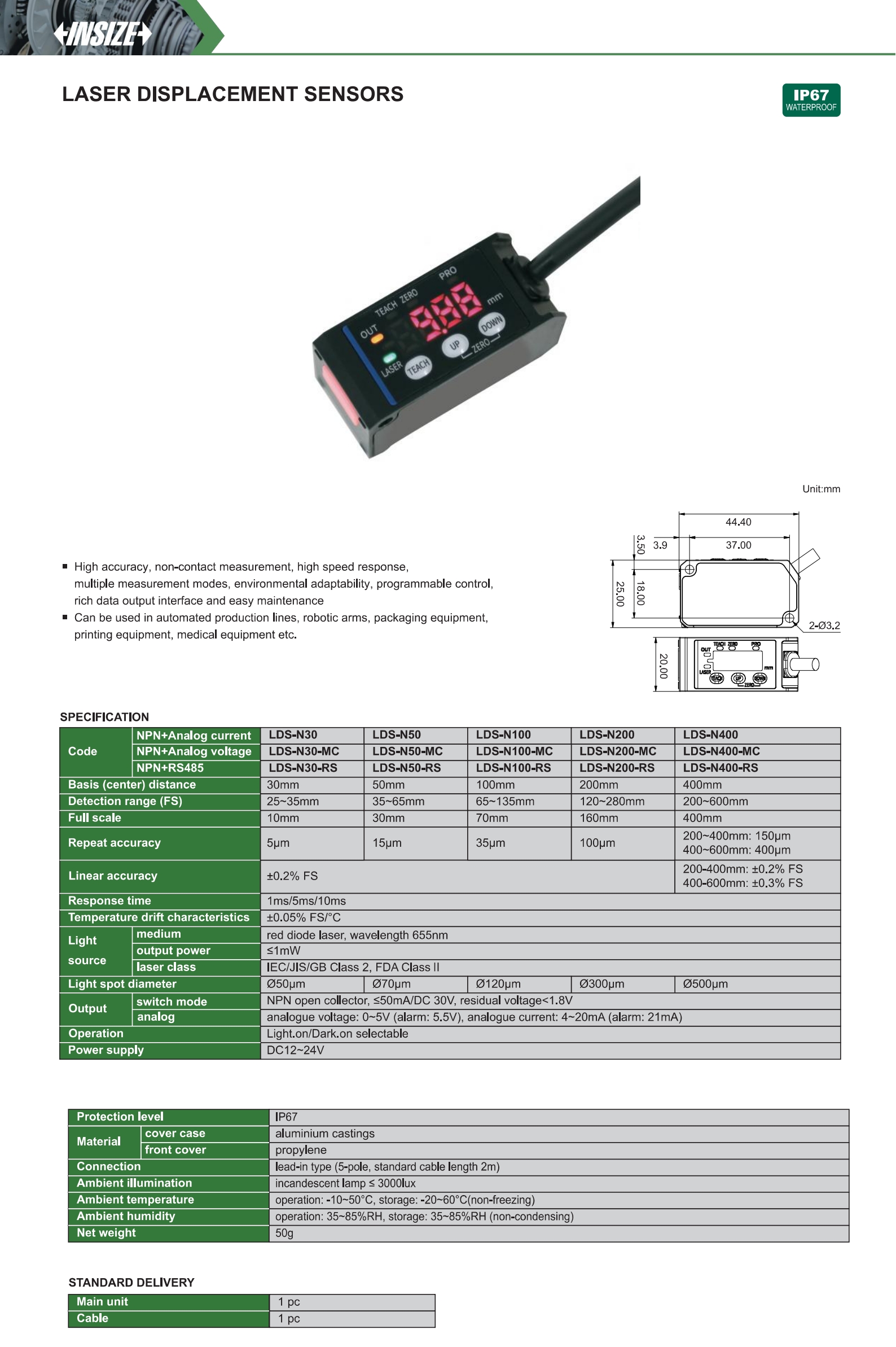

View the complete
product specifications
