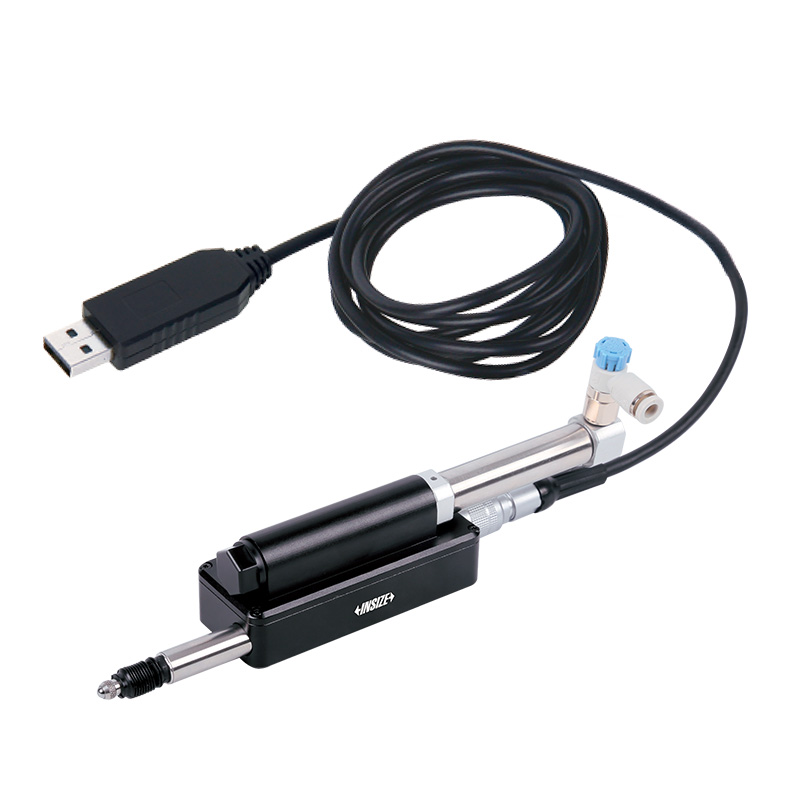

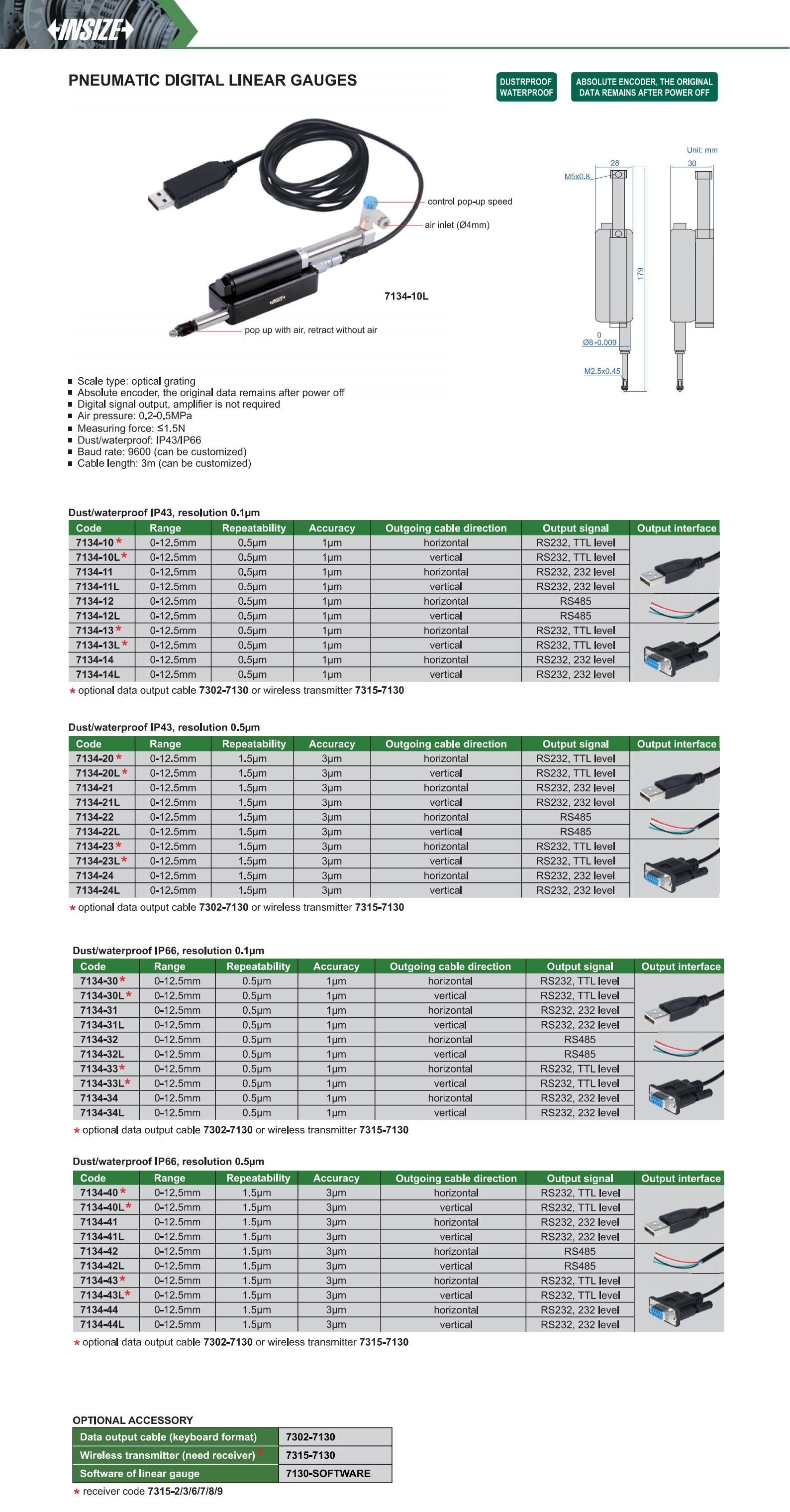

Pneumatic Digital Linear Gauges
Code: 7134
Scale type: optical grating
Absolute encoder, the original data remains after power off
Digital signal output, amplifier is not required
Air pressure: 0.2-0.5MPa
Measuring force: ≤1.5N
| Code | Type | Range | Accuracy | Output signal | Outgoing cable direction |
|---|---|---|---|---|---|
| 7134-10 | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | horizontal |
| 7134-10L | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | vertical |
| 7134-11 | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | horizontal |
| 7134-11L | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | vertical |
| 7134-12 | Optical grating | 0-12.5mm | 1µm | RS485 (VCC+5~12V) | horizontal |
| 7134-12L | Optical grating | 0-12.5mm | 1µm | RS485 (VCC+5~12V) | vertical |
| 7134-13 | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | horizontal |
| 7134-13L | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | vertical |
| 7134-14 | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | horizontal |
| 7134-14L | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | vertical |
| 7134-20 | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | horizontal |
| 7134-20L | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | vertical |
| 7134-21 | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | horizontal |
| 7134-21L | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | vertical |
| 7134-22 | Optical grating | 0-12.5mm | 3µm | RS485 (VCC+5~12V) | horizontal |
| 7134-22L | Optical grating | 0-12.5mm | 3µm | RS485 (VCC+5~12V) | vertical |
| 7134-23 | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | horizontal |
| 7134-23L | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | vertical |
| 7134-24 | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | horizontal |
| 7134-24L | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | vertical |
| 7134-30 | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | horizontal |
| 7134-30L | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | vertical |
| 7134-31 | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | horizontal |
| 7134-31L | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | vertical |
| 7134-32 | Optical grating | 0-12.5mm | 1µm | RS485 (VCC+5~12V) | horizontal |
| 7134-32L | Optical grating | 0-12.5mm | 1µm | RS485 (VCC+5~12V) | vertical |
| 7134-33 | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | horizontal |
| 7134-33L | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | vertical |
| 7134-34 | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | horizontal |
| 7134-34L | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | vertical |
| 7134-40 | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | horizontal |
| 7134-40L | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | vertical |
| 7134-41 | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | horizontal |
| 7134-41L | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | vertical |
| 7134-42 | Optical grating | 0-12.5mm | 3µm | RS485 (VCC+5~12V) | horizontal |
| 7134-42L | Optical grating | 0-12.5mm | 3µm | RS485 (VCC+5~12V) | vertical |
| 7134-43 | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | horizontal |
| 7134-43L | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | vertical |
| 7134-44 | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | horizontal |
| 7134-44L | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | vertical |
