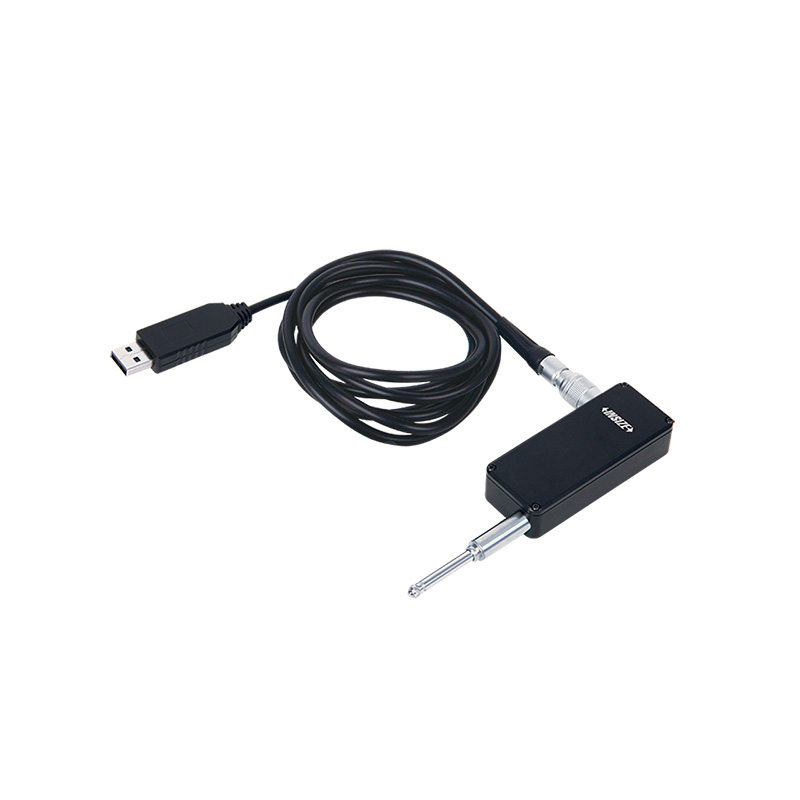

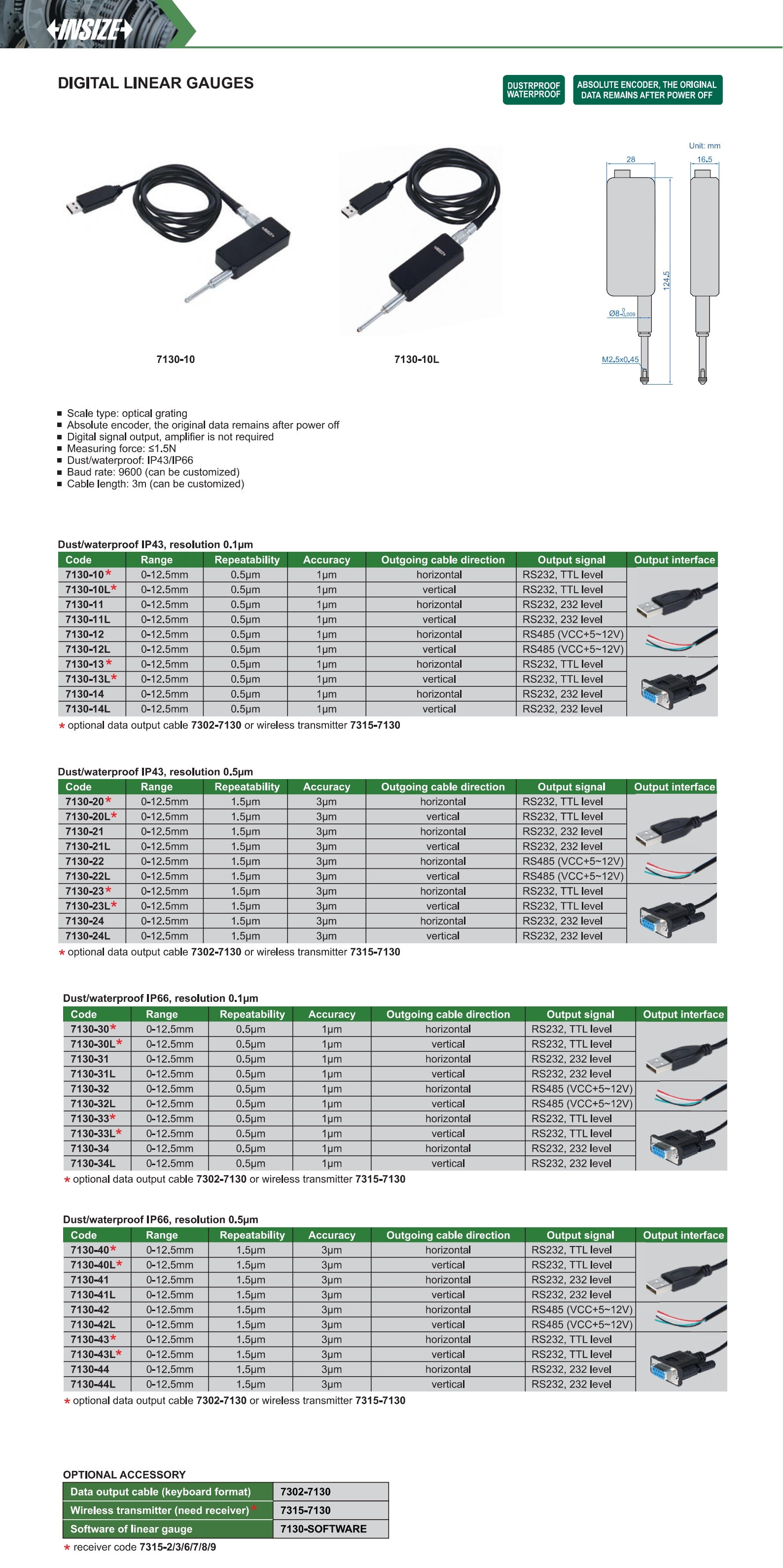

Digital Linear Gauges
Code: 7130
Scale type: optical grating
Absolute encoder, the original data remains after power off
Digital signal output, amplifier is not required
Measuring force: ≤1.5N
| Code | Type | Range | Accuracy | Output signal | Outgoing cable direction |
|---|---|---|---|---|---|
| 7130-10 | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | horizontal |
| 7130-10L | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | vertical |
| 7130-11 | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | horizontal |
| 7130-11L | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | vertical |
| 7130-12 | Optical grating | 0-12.5mm | 1µm | RS485 (VCC+5~12V) | horizontal |
| 7130-12L | Optical grating | 0-12.5mm | 1µm | RS485 (VCC+5~12V) | vertical |
| 7130-13 | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | horizontal |
| 7130-13L | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | vertical |
| 7130-14 | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | horizontal |
| 7130-14L | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | vertical |
| 7130-20 | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | horizontal |
| 7130-20L | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | vertical |
| 7130-21 | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | horizontal |
| 7130-21L | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | vertical |
| 7130-22 | Optical grating | 0-12.5mm | 3µm | RS485 (VCC+5~12V) | horizontal |
| 7130-22L | Optical grating | 0-12.5mm | 3µm | RS485 (VCC+5~12V) | vertical |
| 7130-23 | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | horizontal |
| 7130-23L | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | vertical |
| 7130-24 | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | horizontal |
| 7130-24L | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | vertical |
| 7130-30 | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | horizontal |
| 7130-30L | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | vertical |
| 7130-31 | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | horizontal |
| 7130-31L | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | vertical |
| 7130-32 | Optical grating | 0-12.5mm | 1µm | RS485 (VCC+5~12V) | horizontal |
| 7130-32L | Optical grating | 0-12.5mm | 1µm | RS485 (VCC+5~12V) | vertical |
| 7130-33 | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | horizontal |
| 7130-33L | Optical grating | 0-12.5mm | 1µm | RS232, TTL level | vertical |
| 7130-34 | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | horizontal |
| 7130-34L | Optical grating | 0-12.5mm | 1µm | RS232, 232 level | vertical |
| 7130-40 | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | horizontal |
| 7130-40L | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | vertical |
| 7130-41 | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | horizontal |
| 7130-41L | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | vertical |
| 7130-42 | Optical grating | 0-12.5mm | 3µm | RS485 (VCC+5~12V) | horizontal |
| 7130-42L | Optical grating | 0-12.5mm | 3µm | RS485 (VCC+5~12V) | vertical |
| 7130-43 | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | horizontal |
| 7130-43L | Optical grating | 0-12.5mm | 3µm | RS232, TTL level | vertical |
| 7130-44 | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | horizontal |
| 7130-44L | Optical grating | 0-12.5mm | 3µm | RS232, 232 level | vertical |
View the complete
product specifications
