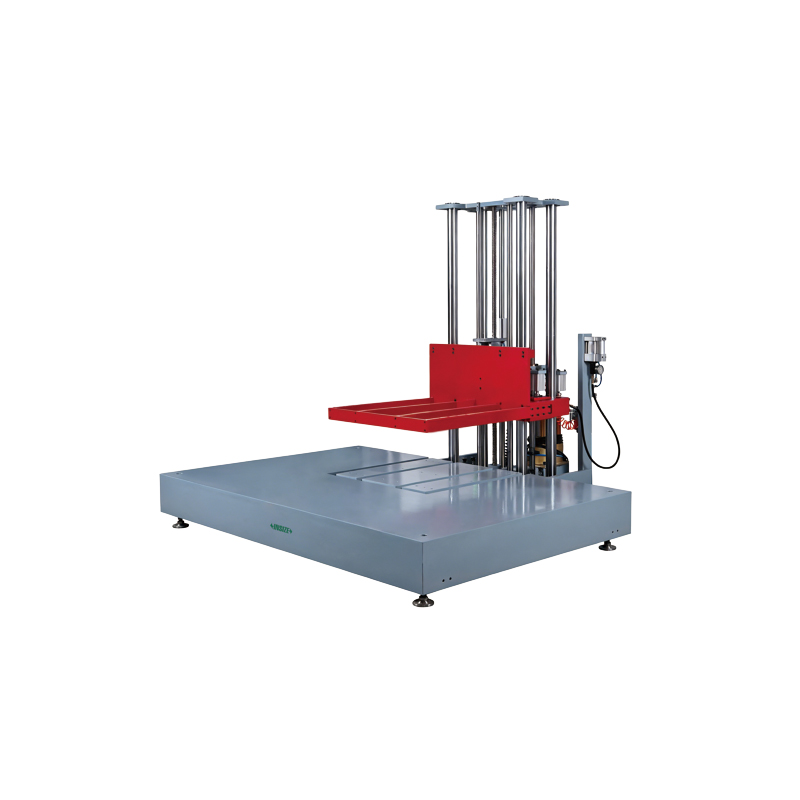

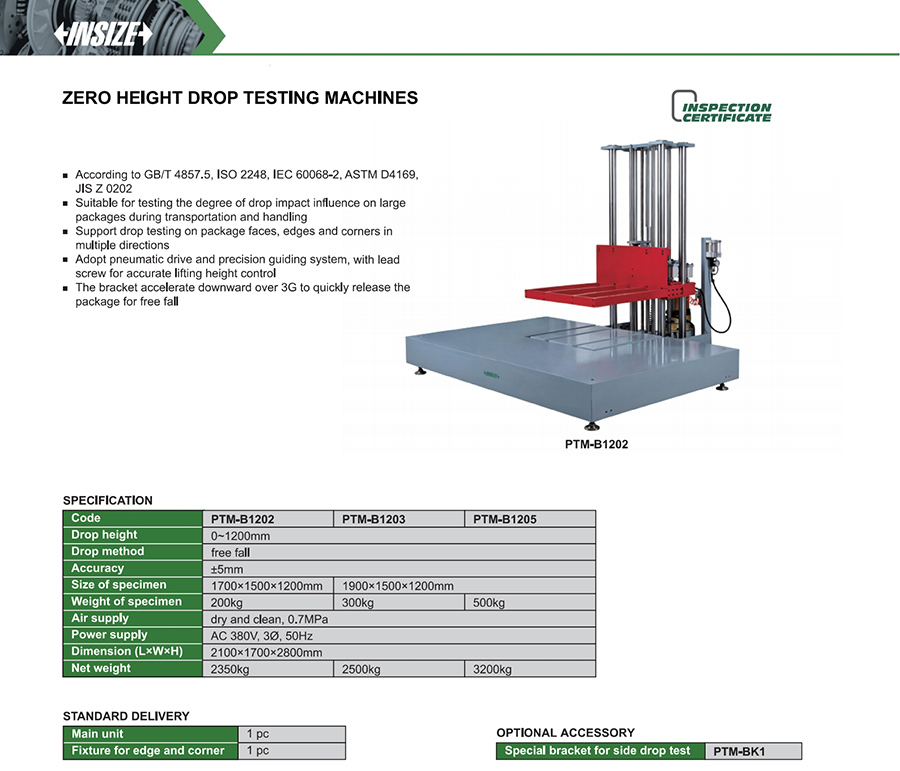

Zero Height Drop Testing Machines
Code: PTM-B Series
According to GB/T 4857.5, ISO 2248, IEC 60068-2, ASTM D4169, JIS Z 0202
Suitable for testing the degree of drop impact influence on large packages during transportation and handling
Support drop testing on package faces, edges and corners in multiple directions
Adopt pneumatic drive and precision guiding system, with lead screw for accurate lifting height control
The bracket accelerate downward over 3G to quickly release the package for free fall
| Code | Accuracy | Height of drop |
|---|---|---|
| PTM-B1202 | ±5mm | 0~1200mm |
| PTM-B1203 | ±5mm | 0~1200mm |
| PTM-B1205 | ±5mm | 0~1200mm |
