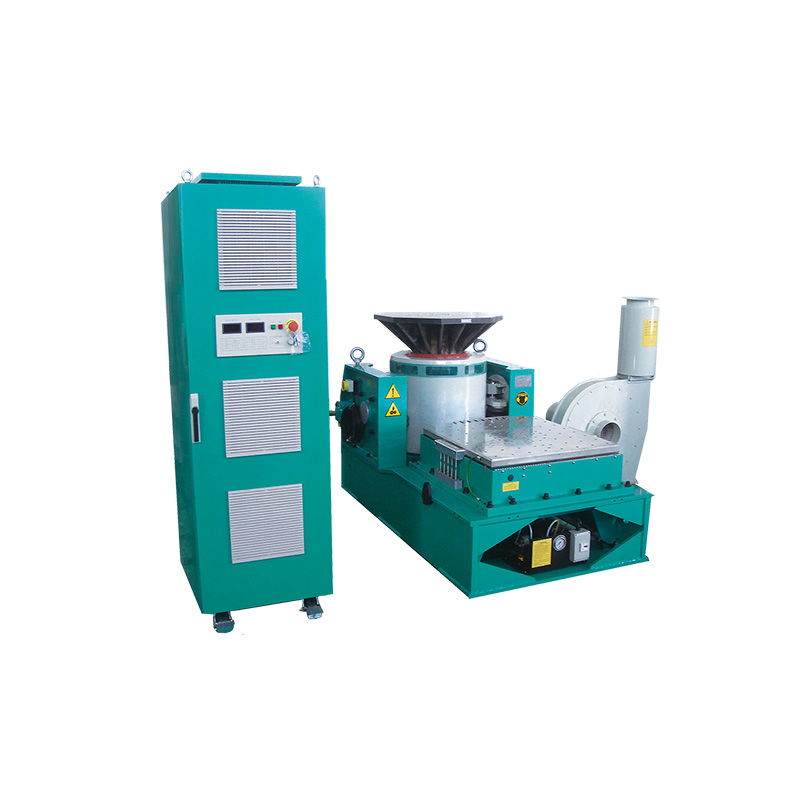

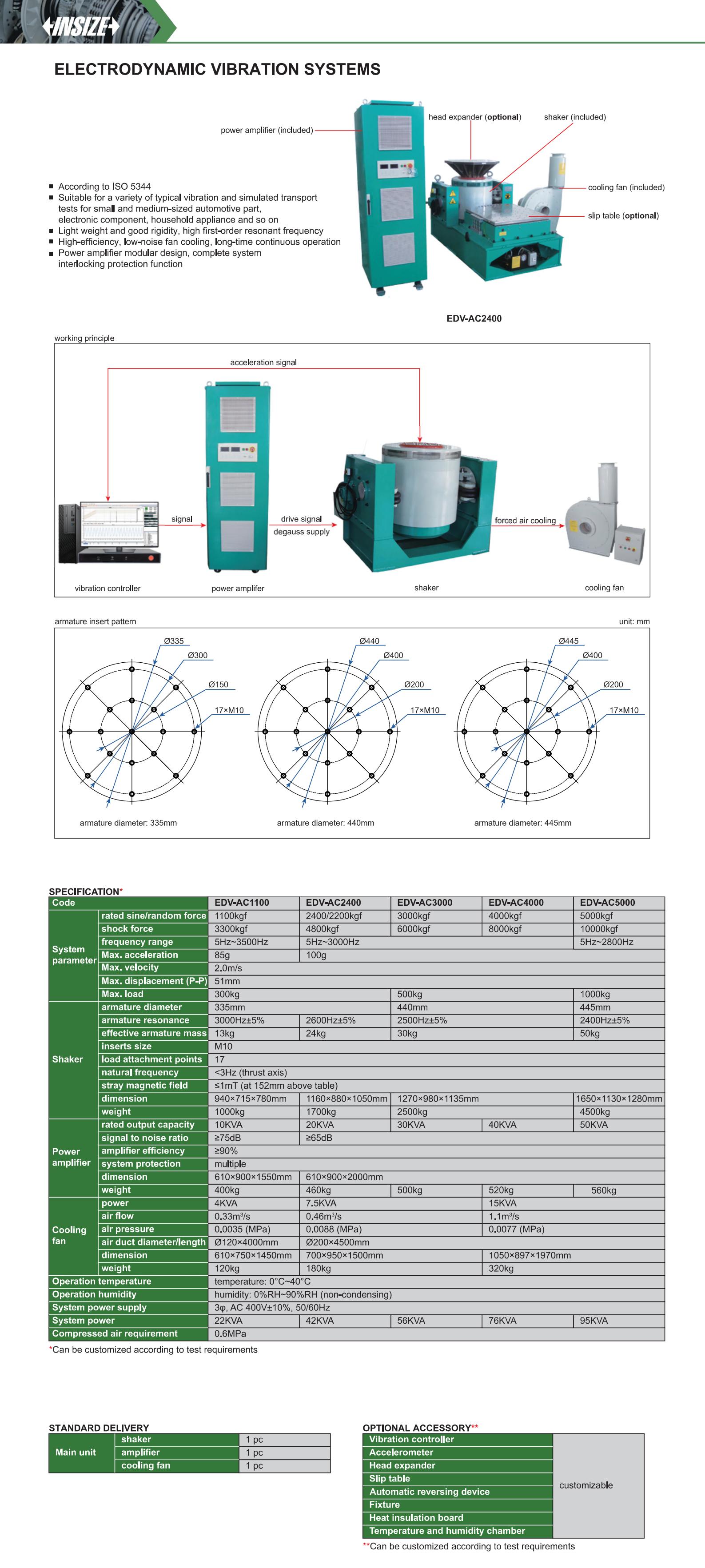

Electrodynamic Vibration Systems
Code: EDV-AC series
According to ISO 5344
Suitable for a variety of typical vibration and simulated transport tests for small and medium-sized automotive part, electronic component, household appliance and so on
Light weight and good rigidity, high first-order resonant frequency
High-efficiency, low-noise fan cooling, long-time continuous operation
Power amplifier modular design, complete system interlocking protection function
| Code | Rated sine/random force | Shock force | Max. load |
|---|---|---|---|
| EDV-AC1100 | 1100kgf | 3300kgf | 300kg |
| EDV-AC2400 | 2400/2200kgf | 4800kgf | 300kg |
| EDV-AC3000 | 3000kgf | 6000kgf | 500kg |
| EDV-AC4000 | 4000kgf | 8000kgf | 500kg |
| EDV-AC5000 | 5000kgf | 10000kgf | 1000kg |
