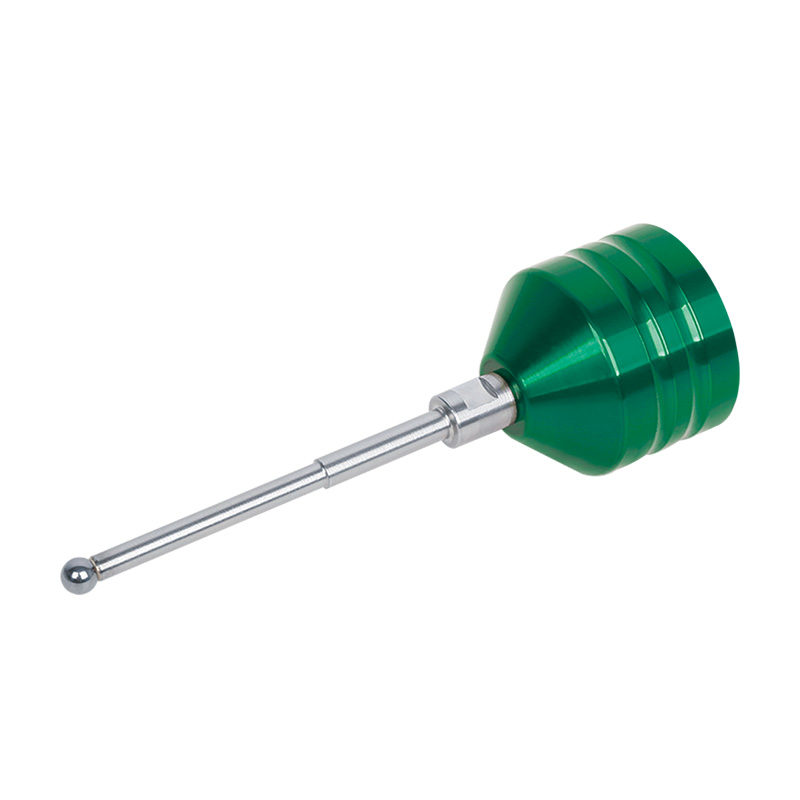

EDGE Finders For EDM
Code: 6558
To locate workpieces
Buzzer in EDM sounds when the ball touches the workpiece
Tungsten steel ball, diameter accuracy: ±0.003mm
Non magnetic stainless steel spindle
Magnetic base

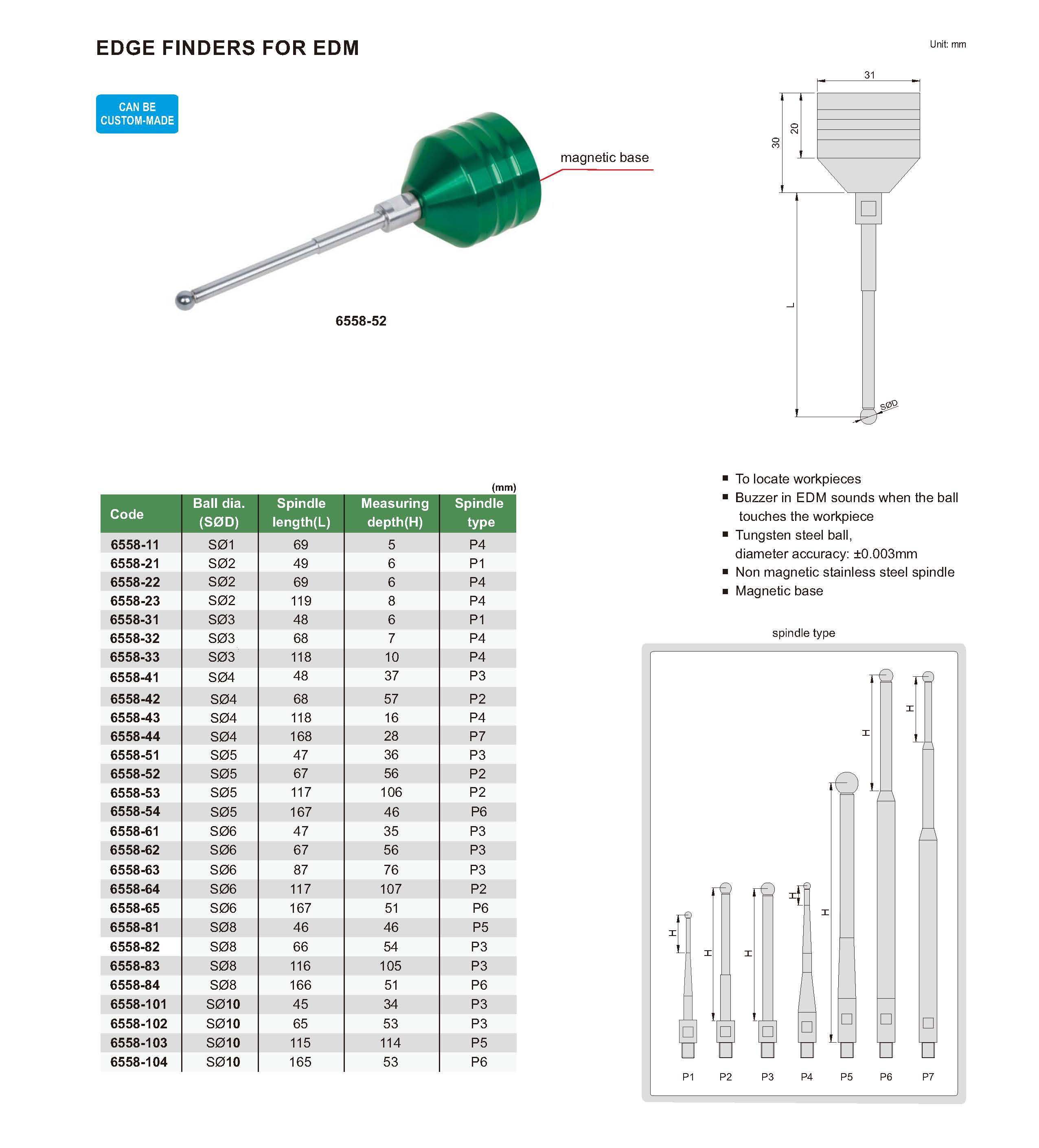

| Code | Type | Measuring depth (H) | Ball dia |
|---|---|---|---|
| 6558-11 | P4 | 5mm | SØ1 |
| 6558-21 | P1 | 6mm | SØ2 |
| 6558-22 | P4 | 6mm | SØ2 |
| 6558-23 | P4 | 8mm | SØ2 |
| 6558-31 | P1 | 6mm | SØ3 |
| 6558-32 | P4 | 7mm | SØ3 |
| 6558-33 | P4 | 10mm | SØ3 |
| 6558-41 | P3 | 37mm | SØ4 |
| 6558-42 | P2 | 57mm | SØ4 |
| 6558-43 | P4 | 16mm | SØ4 |
| 6558-44 | P7 | 28mm | SØ4 |
| 6558-51 | P3 | 36mm | SØ5 |
| 6558-52 | P2 | 56mm | SØ5 |
| 6558-53 | P2 | 106mm | SØ5 |
| 6558-54 | P6 | 46mm | SØ5 |
| 6558-61 | P3 | 35mm | SØ6 |
| 6558-62 | P3 | 56mm | SØ6 |
| 6558-63 | P3 | 76mm | SØ6 |
| 6558-64 | P2 | 107mm | SØ6 |
| 6558-65 | P6 | 51mm | SØ6 |
| 6558-81 | P5 | 46mm | SØ8 |
| 6558-82 | P3 | 54mm | SØ8 |
| 6558-83 | P3 | 105mm | SØ8 |
| 6558-84 | P6 | 51mm | SØ8 |
| 6558-101 | P3 | 34mm | SØ10 |
| 6558-102 | P3 | 53mm | SØ10 |
| 6558-103 | P5 | 114mm | SØ10 |
| 6558-104 | P6 | 53mm | SØ10 |
