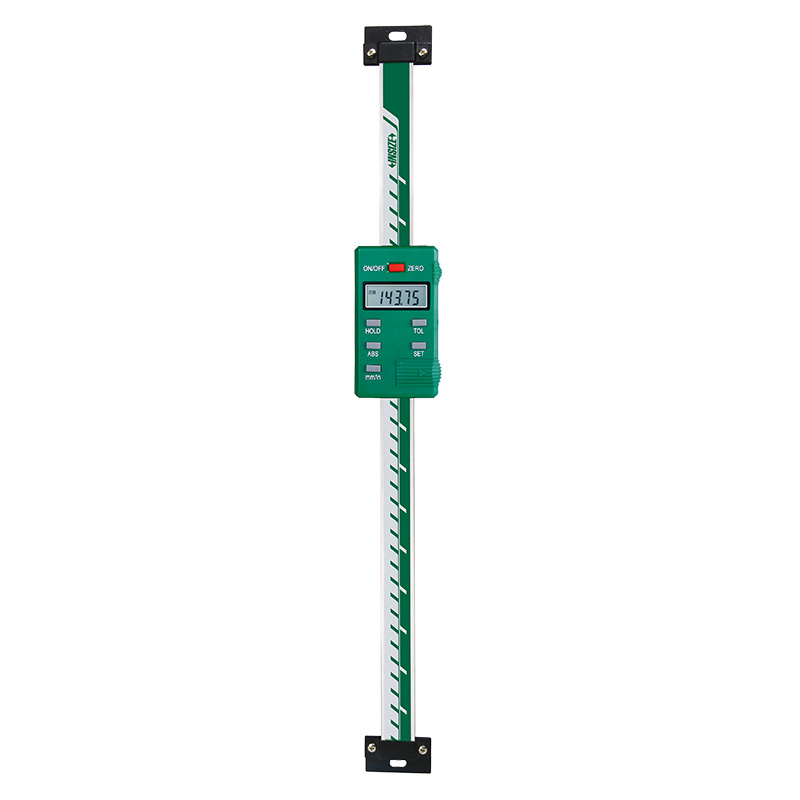

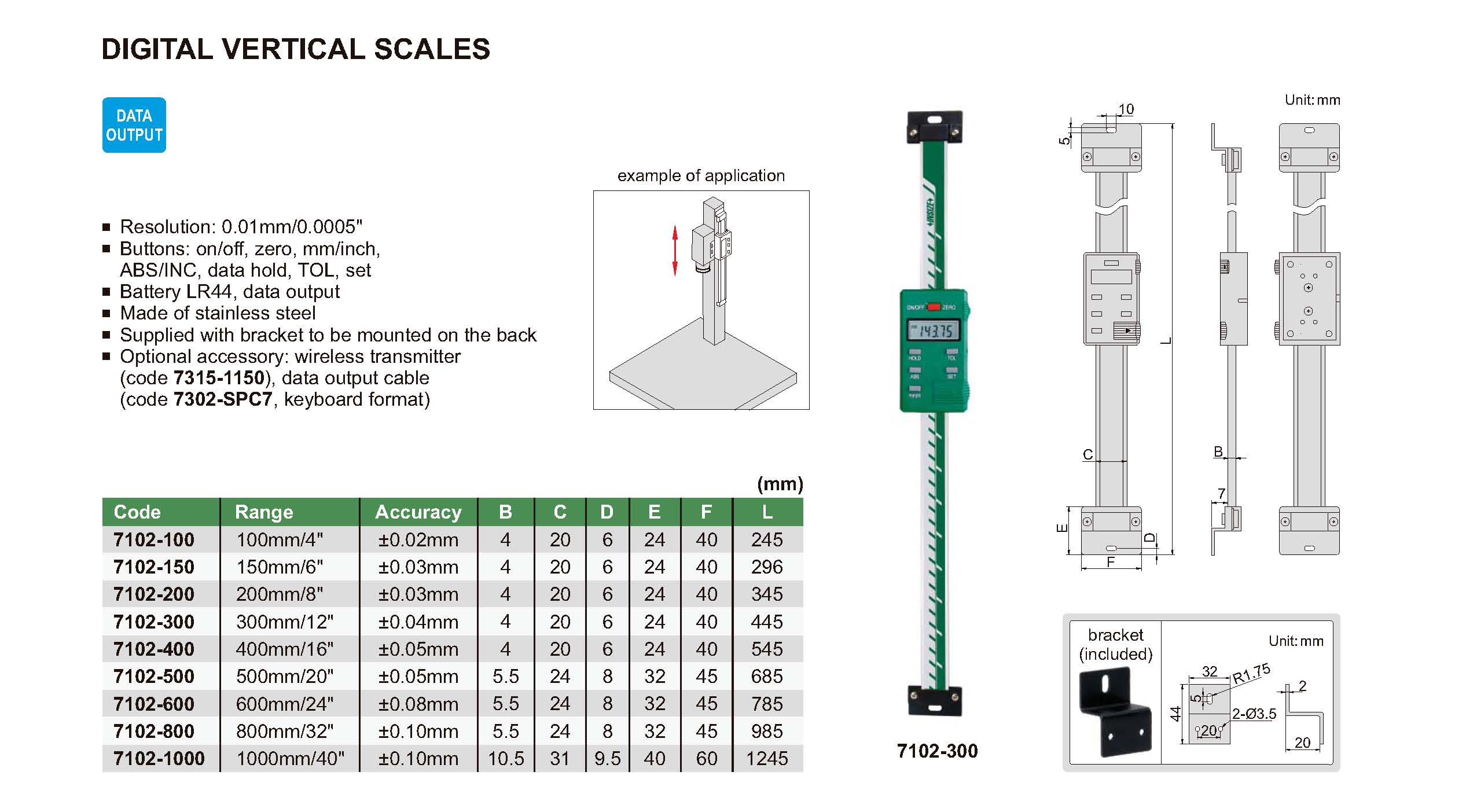

Digital Vertical Scales
Code: 7102
Non waterproof
Resolution: 0.01mm/0.0005"
Buttons: on/off, zero, mm/inch,
ABS/INC, data hold, TOL, set
Battery LR44, data output
Made of stainless steel
Supplied with bracket to be mounted on the back
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 7102-100 | 100mm/4" | ±0.02mm | 0.01mm/0.0005" |
| 7102-150 | 150mm/6" | ±0.03mm | 0.01mm/0.0005" |
| 7102-200 | 200mm/8" | ±0.03mm | 0.01mm/0.0005" |
| 7102-300 | 300mm/12" | ±0.04mm | 0.01mm/0.0005" |
| 7102-400 | 400mm/16" | ±0.05mm | 0.01mm/0.0005" |
| 7102-500 | 500mm/20" | ±0.05mm | 0.01mm/0.0005" |
| 7102-600 | 600mm/24" | ±0.08mm | 0.01mm/0.0005" |
| 7102-800 | 800mm/32" | ±0.10mm | 0.01mm/0.0005" |
| 7102-1000 | 1000mm/40" | ±0.10mm | 0.01mm/0.0005" |
