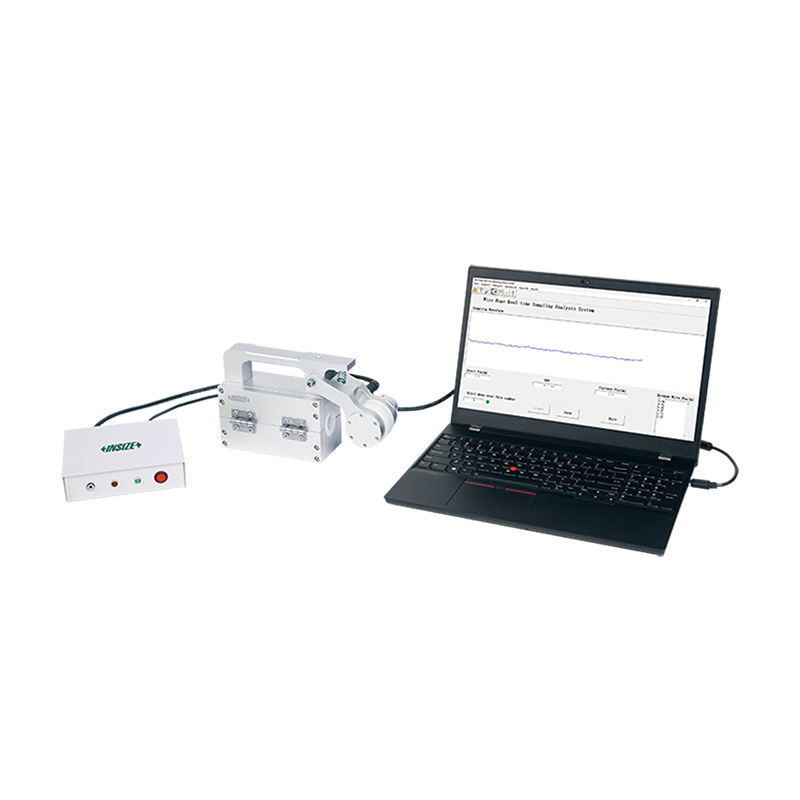

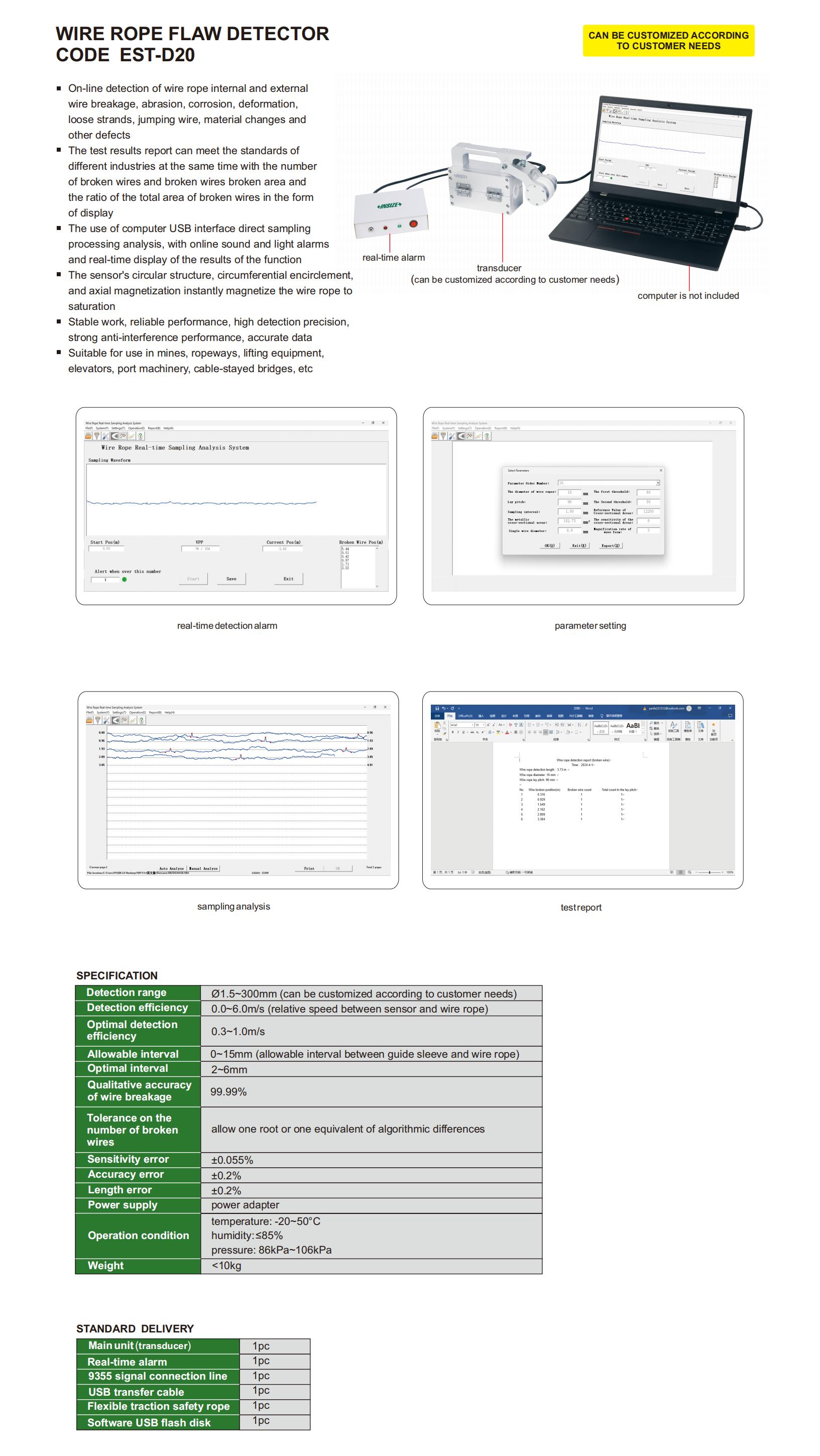

Wire Rope Flaw Detector
Code: EST
On-line detection of wire rope internal and external wire breakage, abrasion, corrosion, deformation, loose strands, jumping wire, material changes and other defects
The test results report can meet the standards of different industries at the same time with the number of broken wires and broken wires broken area and the ratio of the total area of broken wires in the form of display
The use of computer USB interface direct sampling processing analysis, with online sound and light alarms and real-time display of the results of the function
The sensor's circular structure, circumferential encirclement, and axial magnetization instantly magnetize the wire rope to saturation
Stable work, reliable performance, high detection precision, strong anti-interference performance, accurate data
Suitable for use in mines, ropeways, lifting equipment, elevators, port machinery, cable-stayed bridges, etc.
| Code | Range | Accuracy | Sensitivity |
|---|---|---|---|
| EST | Ø1.5~300mm (can be customized according to customer needs) | ±0.2% | ±0.055% |
