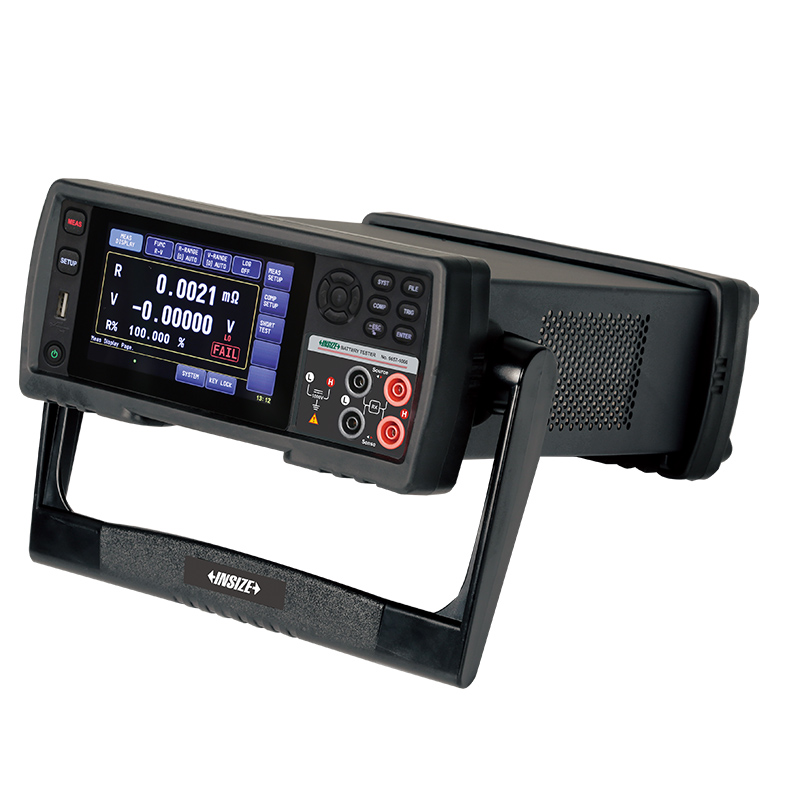

Battery Testers
Code: 9657
5-inch LCD touch screen display
AC four-terminal method sampling for more accurate test result
Simultaneously measure resistance and voltage
Supports storing data and saving screenshot with a USB flash drive
High sampling rate and standard multiple communication interfaces suitable for automated testing

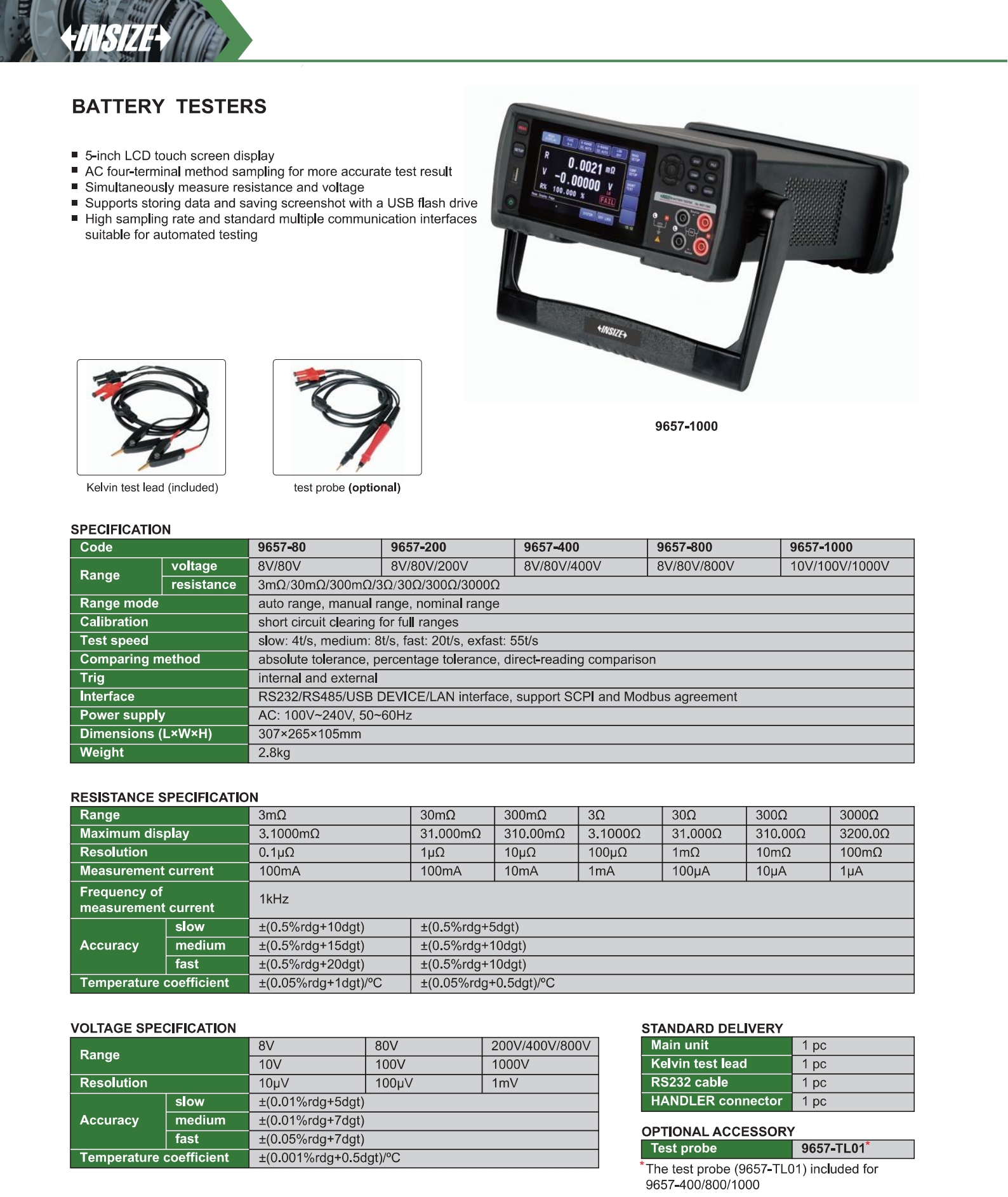

| Code | Resistance range | Voltage range |
|---|---|---|
| 9657-80 | 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3000Ω | 8V/80V |
| 9657-200 | 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3000Ω | 8V/80V/200V |
| 9657-400 | 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3000Ω | 8V/80V/400V |
| 9657-800 | 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3000Ω | 8V/80V/800V |
| 9657-1000 | 3mΩ/30mΩ/300mΩ/3Ω/30Ω/300Ω/3000Ω | 10V/100V/1000V |
