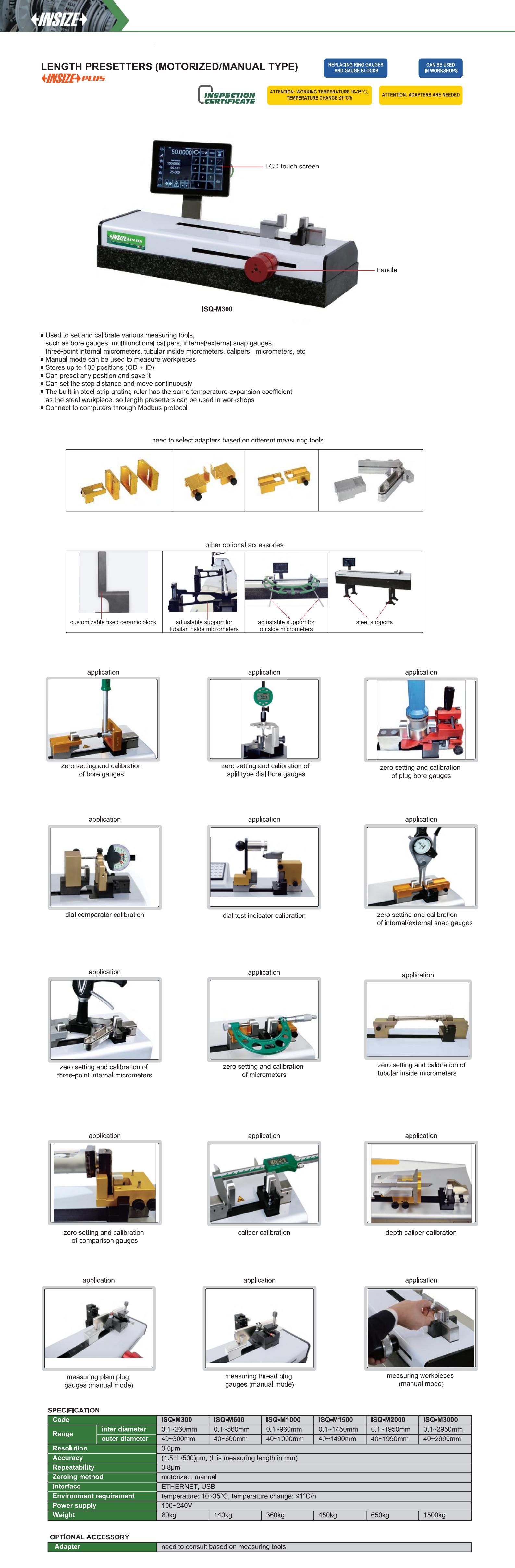

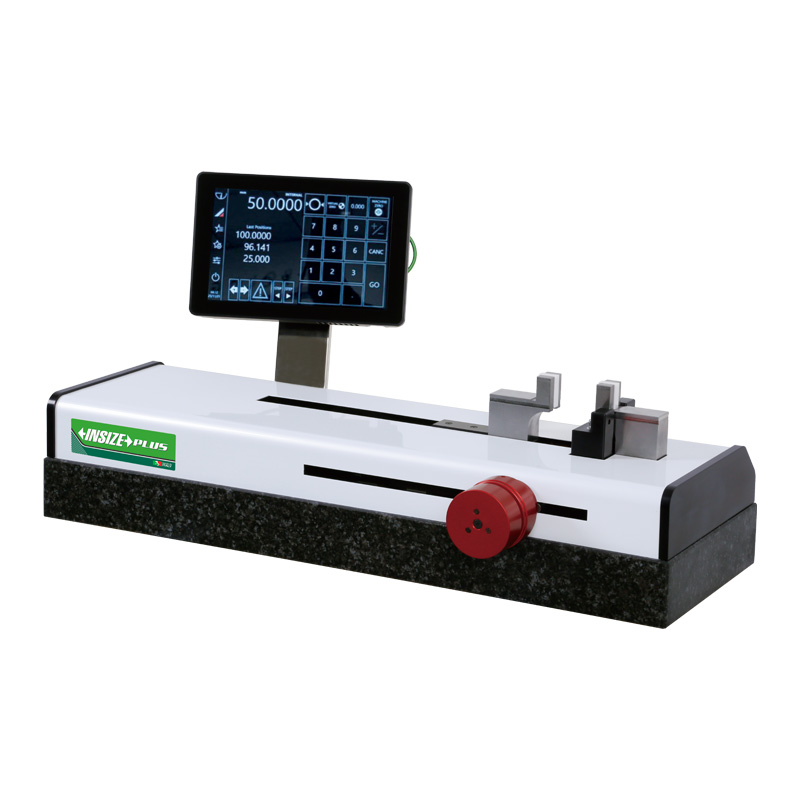

Length Presetters (Motorized/Manual Type)
Code: ISQ-M series
Used to set and calibrate various measuring tools, such as bore gauges, multifunctional calipers, internal/external snap gauges, three-point internal micrometers, tubular inside micrometers, calipers, micrometers, etc.
Manual mode can be used to measure workpieces
Stores up to 100 positions (OD+ID)
Can preset any position and save it
Can set the step distance and move continuously
| Code | Range | Accuracy | Resolution | Repeatability |
|---|---|---|---|---|
| ISQ-M300 | Inter diameter:0.1~260mm/Outer diameter:40~300mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-M600 | Inter diameter:0.1~560mm/Outer diameter:40~600mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-M1000 | Inter diameter:0.1~960mm/Outer diameter:40~1000mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-M1500 | Inter diameter:0.1~1450mm/Outer diameter:40~1490mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-M2000 | Inter diameter:0.1~1950mm/Outer diameter:40~1990mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
| ISQ-M3000 | Inter diameter:0.1~2950mm/Outer diameter:40~2990mm | (1.5+L/500)μm | 0.5μm | 0.8μm |
