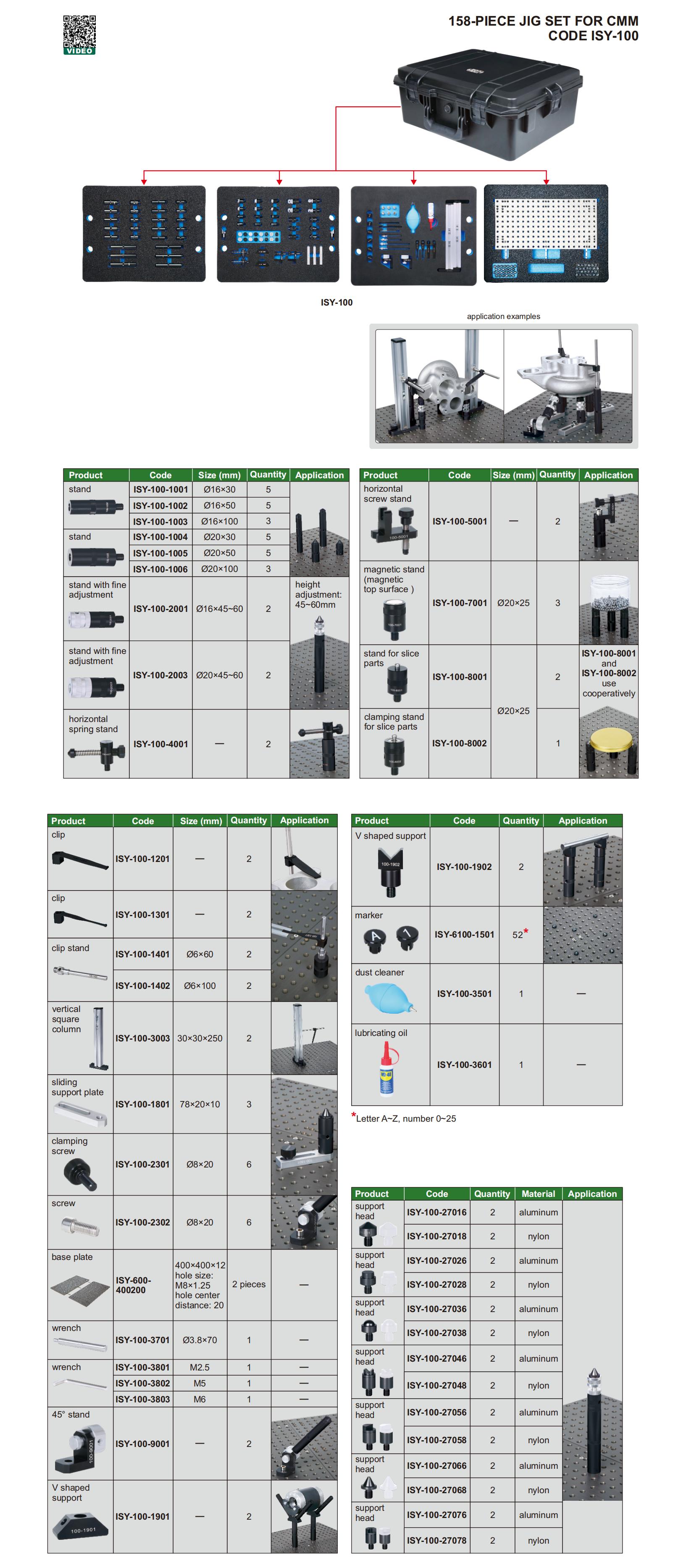

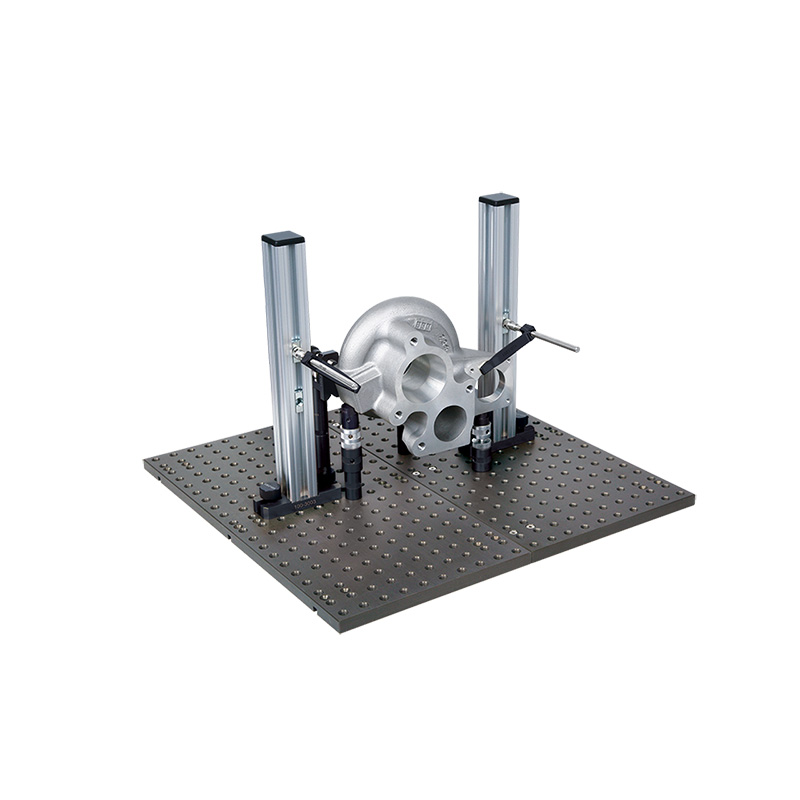

158-Piece Jig Set For Cmm
Code: ISY-100
| Code | Size | Quantity |
|---|---|---|
| ISY-100-1001 | Ø16×30 | 5 |
| ISY-100-1002 | Ø16×50 | 5 |
| ISY-100-1003 | Ø16×100 | 3 |
| ISY-100-1004 | Ø20×30 | 5 |
| ISY-100-1005 | Ø20×50 | 5 |
| ISY-100-1006 | Ø20×100 | 3 |
| ISY-100-2001 | Ø16×45~60 | 2 |
| ISY-100-2003 | Ø20×45~60 | 2 |
| ISY-100-4001 | — | 2 |
| ISY-100-5001 | — | 2 |
| ISY-100-7001 | Ø20×25 | 3 |
| ISY-100-8001 | Ø20×25 | 2 |
| ISY-100-8002 | Ø20×25 | 1 |
| ISY-100-1201 | — | 2 |
| ISY-100-1301 | — | 2 |
| ISY-100-1401 | Ø6×60 | 2 |
| ISY-100-1402 | Ø6×100 | 2 |
| ISY-100-3003 | 30×30×250 | 2 |
| ISY-100-1801 | 78×20×10 | 3 |
| ISY-100-2301 | Ø8×20 | 6 |
| ISY-100-2302 | Ø8×20 | 6 |
| ISY-600-400200 | 400×400×12 hole size:M8×1.25 hole center distance: 20 | 2 pieces |
| ISY-100-3701 | Ø3.8×70 | 1 |
| ISY-100-3801 | M2.5 | 1 |
| ISY-100-3802 | M5 | 1 |
| ISY-100-3803 | M6 | 1 |
| ISY-100-9001 | — | 2 |
| ISY-100-1901 | — | 2 |
