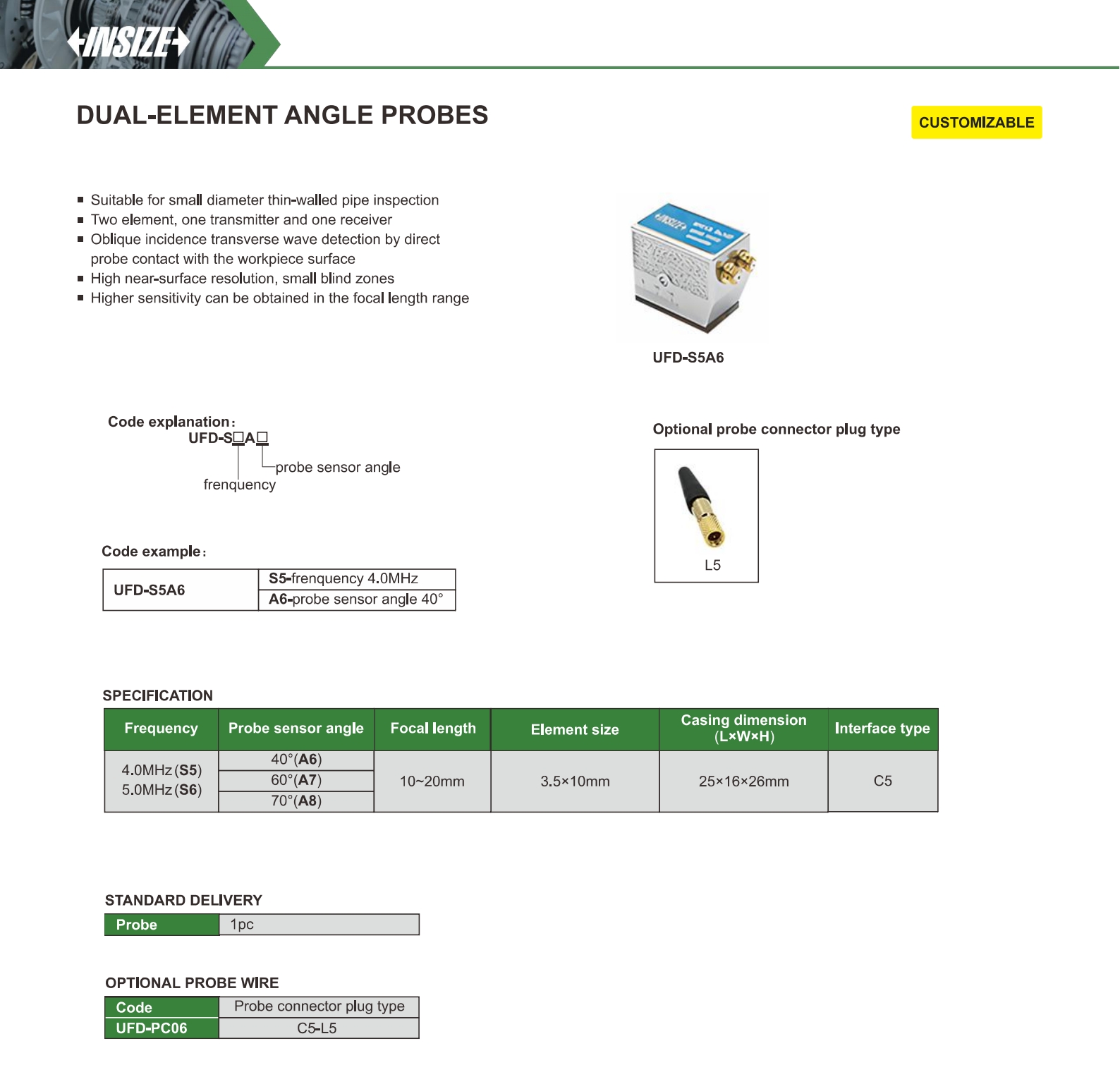

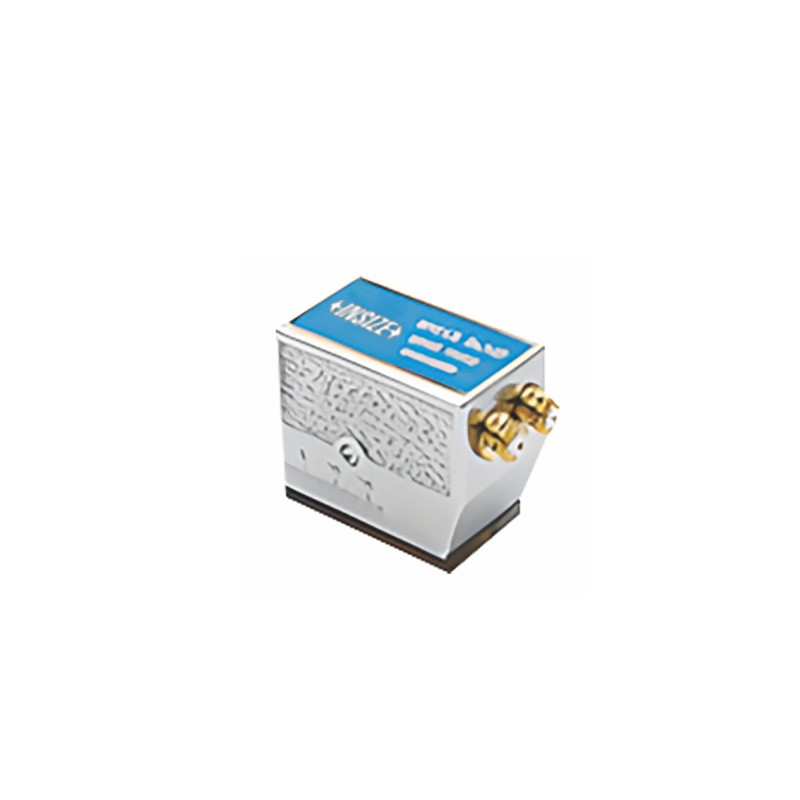

Dual-Element Angle Probes
Code: UFD-S□A□
Suitable for small diameter thin-walled pipe inspection
Two element, one transmitter and one receiver
Oblique incidence transverse wave detection by direct probe contact with the workpiece surface
High near-surface resolution, small blind zones
Higher sensitivity can be obtained in the focal length range
| Code | Frequency | Probe sensor angle | Focal length | Element size | Interface type |
|---|---|---|---|---|---|
| UFD-S□A□ | 4.0MHz(S5), 5.0MHz(S6) | 40°(A6), 60°(A7), 70°(A8) | 10~20mm | 3.5x10mm | C5 |
