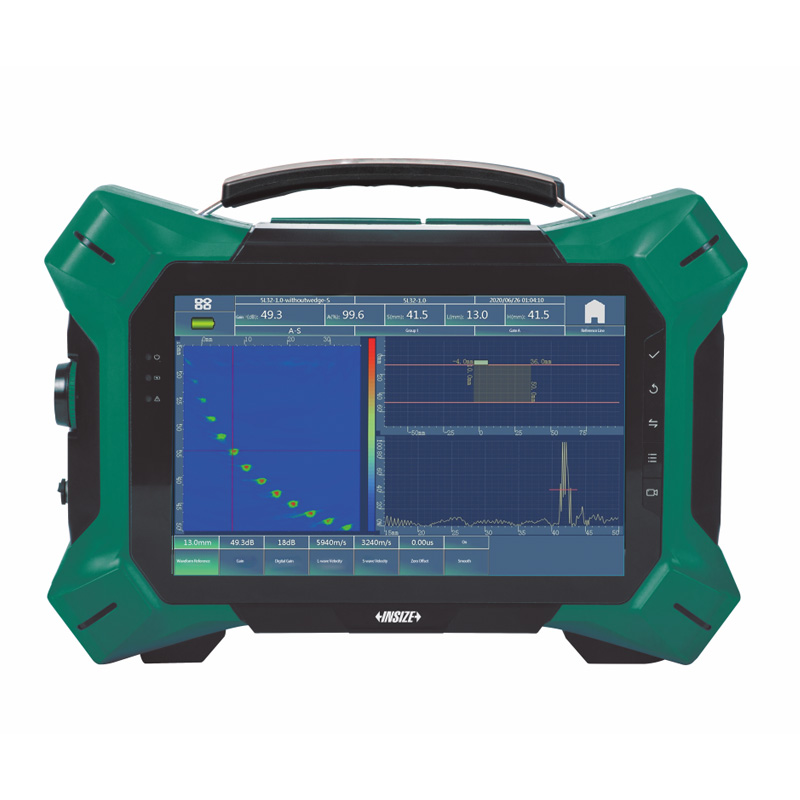

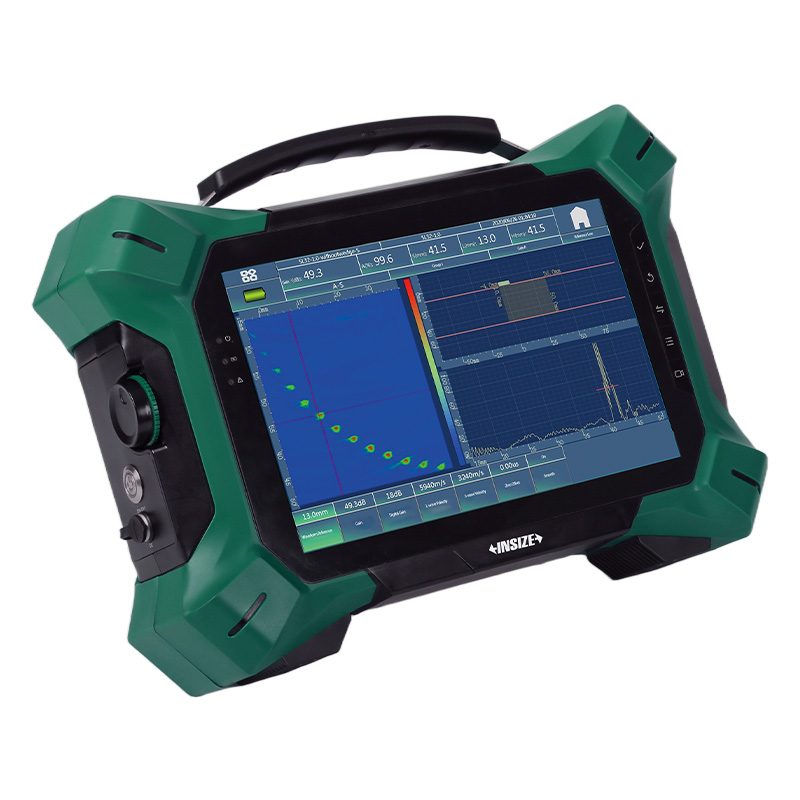

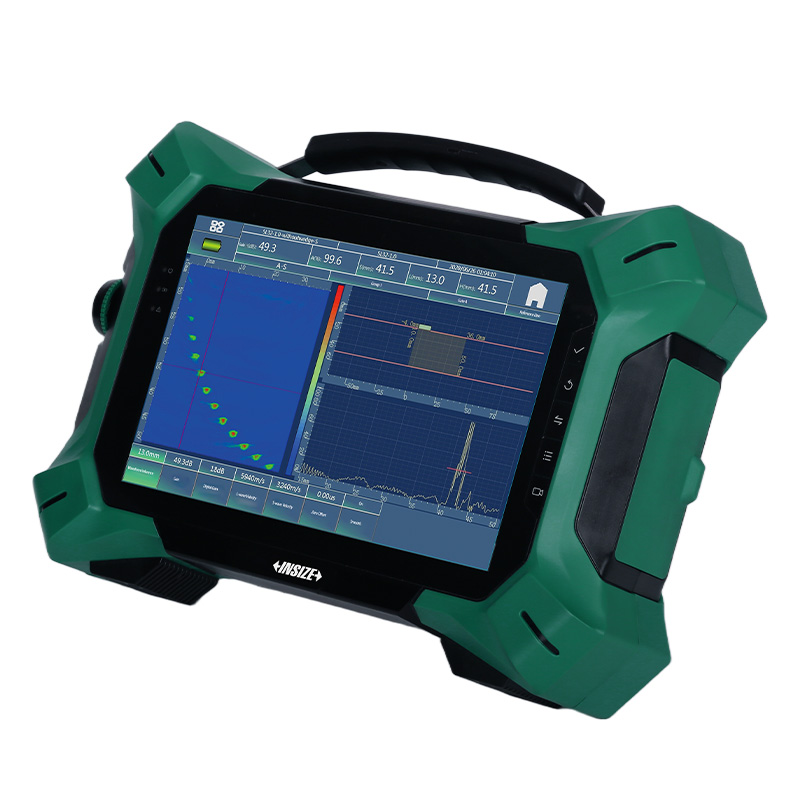

Ultrasonic Phased Array Detectors

Optimal for phased array inspections involving intricate structures or materials, including but not limited to PE pipe electrical conduits, composite materials, TKY butt welds, flanges, blades, etc.

Integrating full focus function, conventional phased array function, bolt cylinder guided wave detection function, and TOFD function, it can be directly switched through device software, making it lighter and more powerful

Supports 64-element real-time TFM full-focus scanning imaging capability

The focus law offers versatility by supporting multiple PA scanning methods, enabling simultaneous scanning and imaging

Incorporate a dual TOFD channel feature that facilitates integrated imaging through dual phased array TOFD

Equipped 2×32 with dual linear array and double-sided array capabilities for effective austenitic stainless steel detection

Equipped with advanced CAD import module, it can import equipment based on the size and contour of the workpiece to assist in identifying defects

Facilitate the output of multi-channel video signals to distinct screen displays

Support a dual-axis encoder interface for two-dimensional corrosion C scanning and wheel probe detection

Enable high-speed network transmission, allowing for real-time data uploading and downloading

Supports PCI/PWI and other imaging modes
