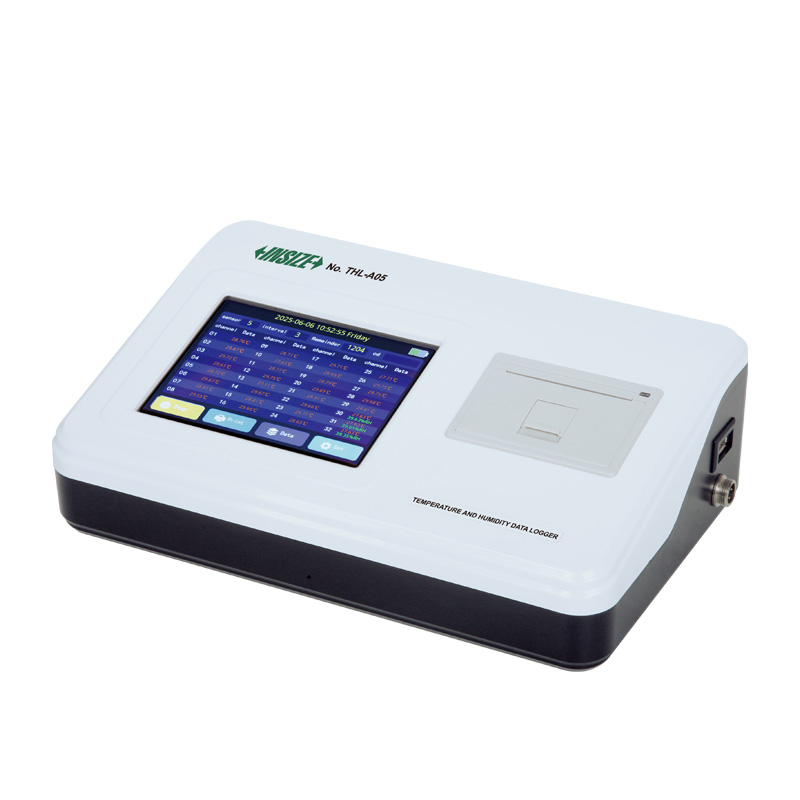

Temperature And Humidity Data Logger
Code: THL-A05
Suitable for testing the uniformity and fluctuation of temperature and humidity field such as environment test equipment, industrial furnace, verification furnace, etc.
32-channel can be independently configured for thermocouple, resistance temperature detector, humidity, and atmospheric pressure inputs
32-channel independent and synchronous acquisition with configurable parameters such as sampling duration, interval
Built-in high-capacity memory that can store up to 500 data sets (10,000 samples per set)
User-friendly human-machine interface with touchscreen operation, featuring functions such as measurement, display, printing, automatic calibration, manual correction, storage, and parameter setting
Computer software is included
| Code | Temperature accuracy | Humidity range | Humidity accuracy | Temperature range | Atmospheric pressure range | Atmospheric pressure accuracy |
|---|---|---|---|---|---|---|
| THL-A05 | ±0.2°C (at -100°C~-50°C), ±0.1°C (at -50°C~200°C), ±0.2°C (at 200°C~300°C), ±0.004∙t | 0%RH~100%RH | ±1.5%RH | -100°C~300°C, 300°C~1200°C | 300hPa~1100hPa | ±1hPa |

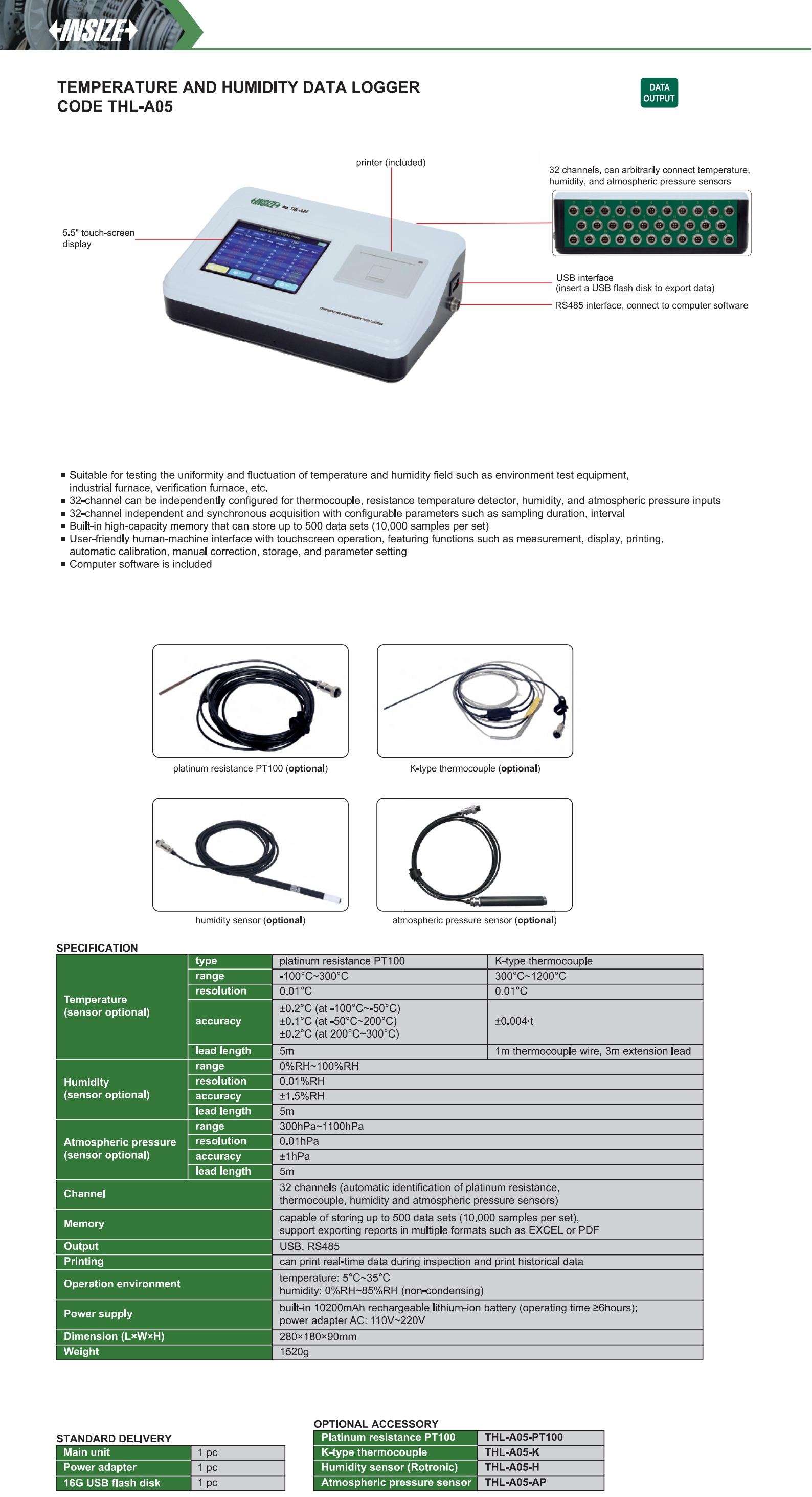

View the complete
product specifications
