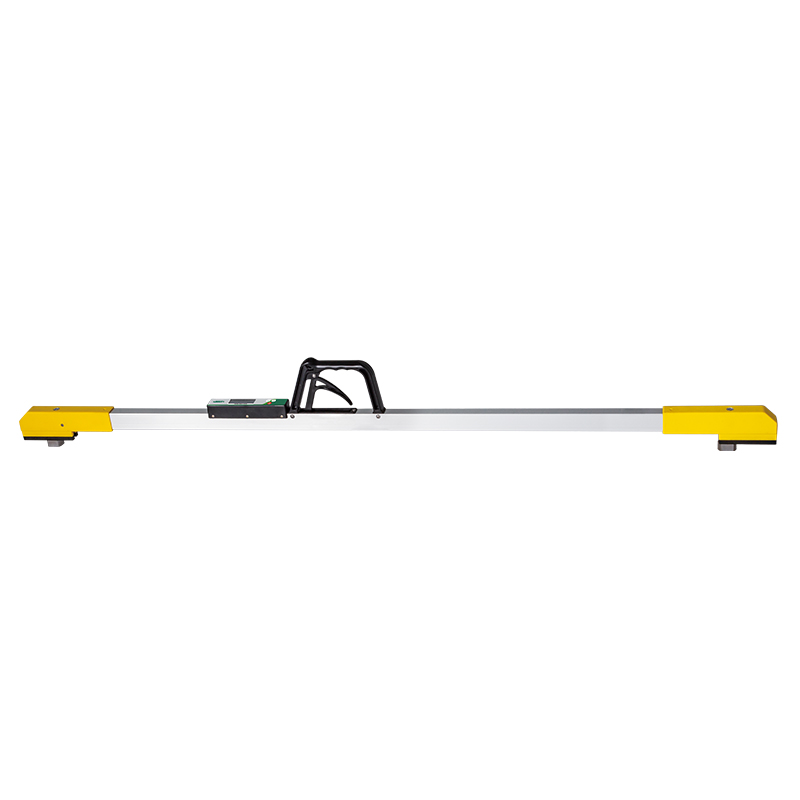

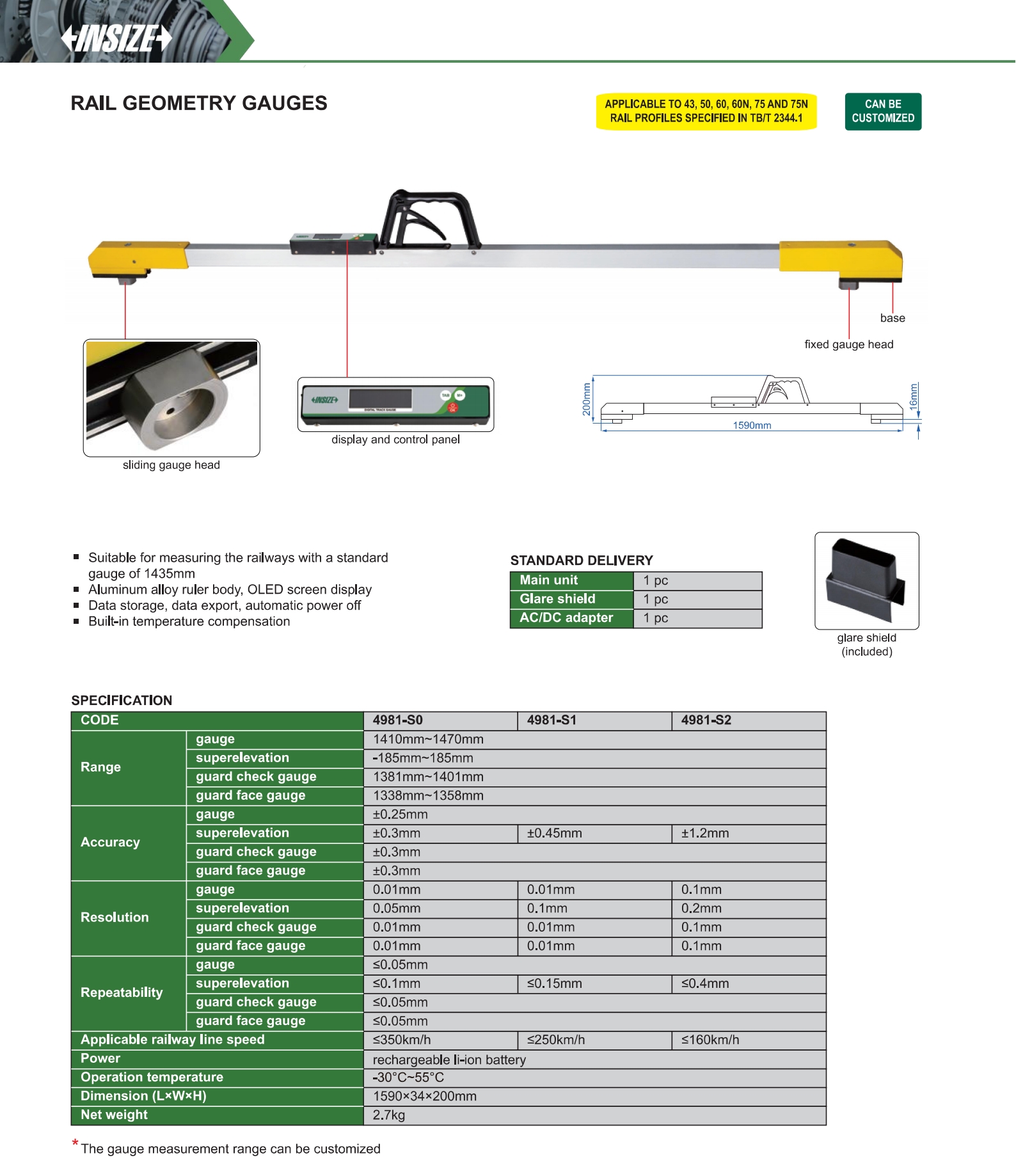

Rail Geometry Gauges
Code: 4981
Suitable for measuring the railways with a standard gauge of 1435mm
Aluminum alloy ruler body, OLED screen display
Data storage, data export, automatic power off
Built-in temperature compensation
| Code | Range | Accuracy |
|---|---|---|
| 4981-S0 | Gauge range:1410mm~1470mm，Superelevation range:-185mm~185mm | Gauge accuracy:±0.25mm，Superelevation accuracy:±0.3mm |
| 4981-S1 | Gauge range:1410mm~1470mm，Superelevation range:-185mm~185mm | Gauge accuracy:±0.25mm，Superelevation accuracy:±0.45mm |
| 4981-S2 | Gauge range:1410mm~1470mm，Superelevation range:-185mm~185mm | Gauge accuracy:±0.25mm，Superelevation accuracy:±1.2mm |
