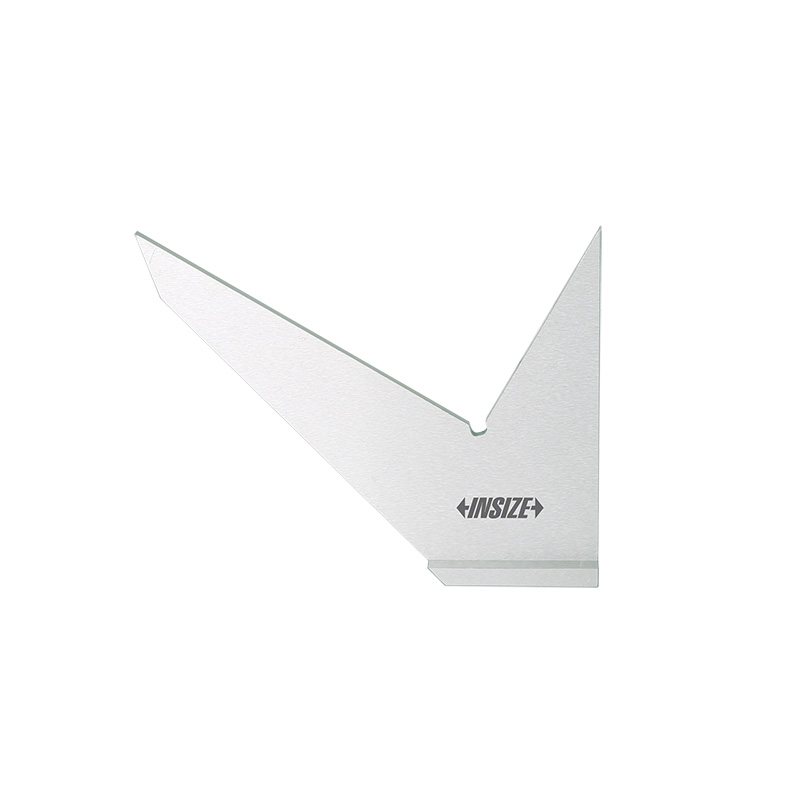

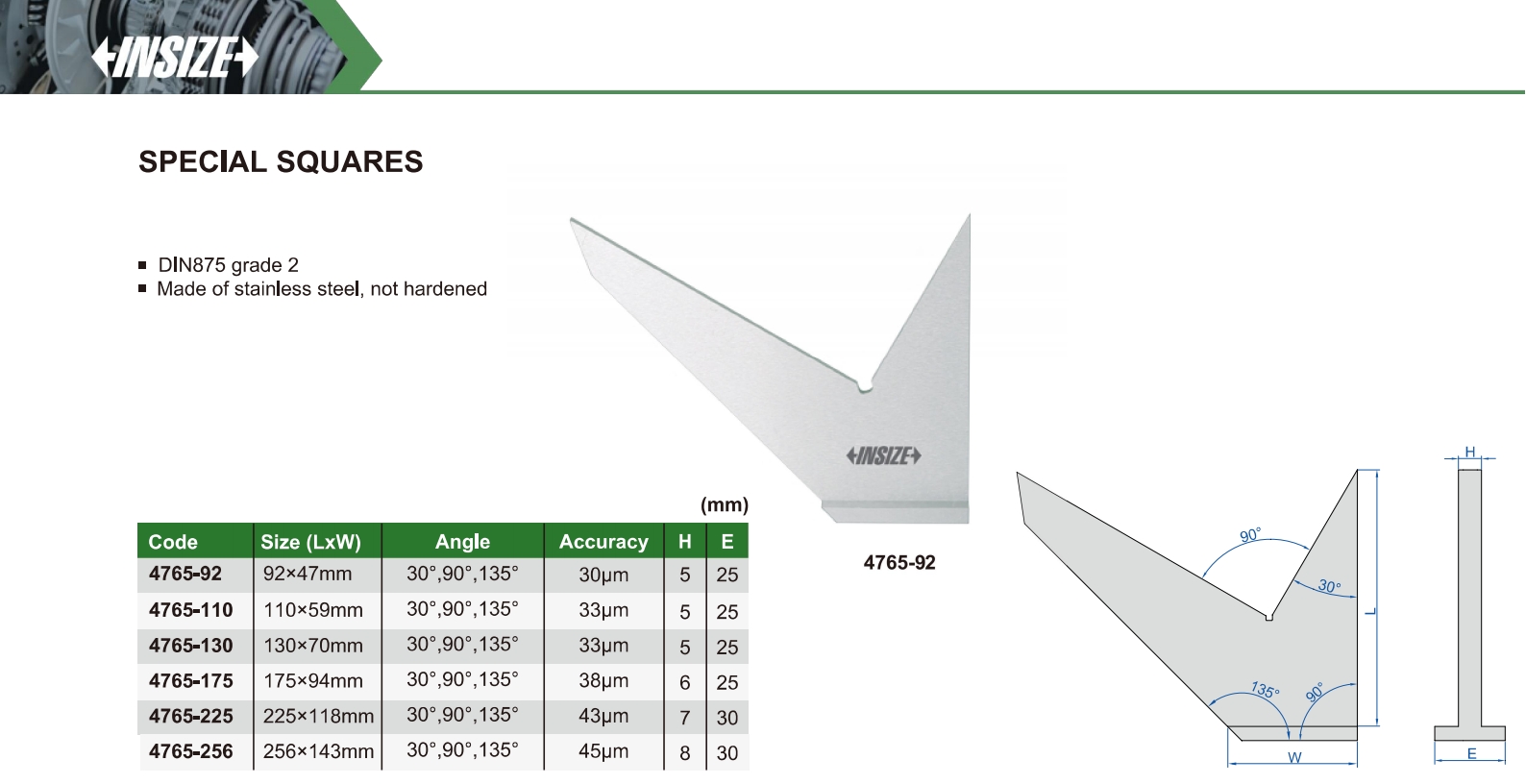

Special Squares
Code: 4765
DIN875 grade 2
Made of stainless steel, not hardened
| Code | Accuracy | Size | Angle |
|---|---|---|---|
| 4765-92 | 30µm | 92×47mm | 30°, 90°, 135° |
| 4765-110 | 33µm | 110×59mm | 30°, 90°, 135° |
| 4765-130 | 33µm | 130×70mm | 30°, 90°, 135° |
| 4765-175 | 38µm | 175×94mm | 30°, 90°, 135° |
| 4765-225 | 43µm | 225×118mm | 30°, 90°, 135° |
| 4765-256 | 45µm | 256×143mm | 30°, 90°, 135° |
