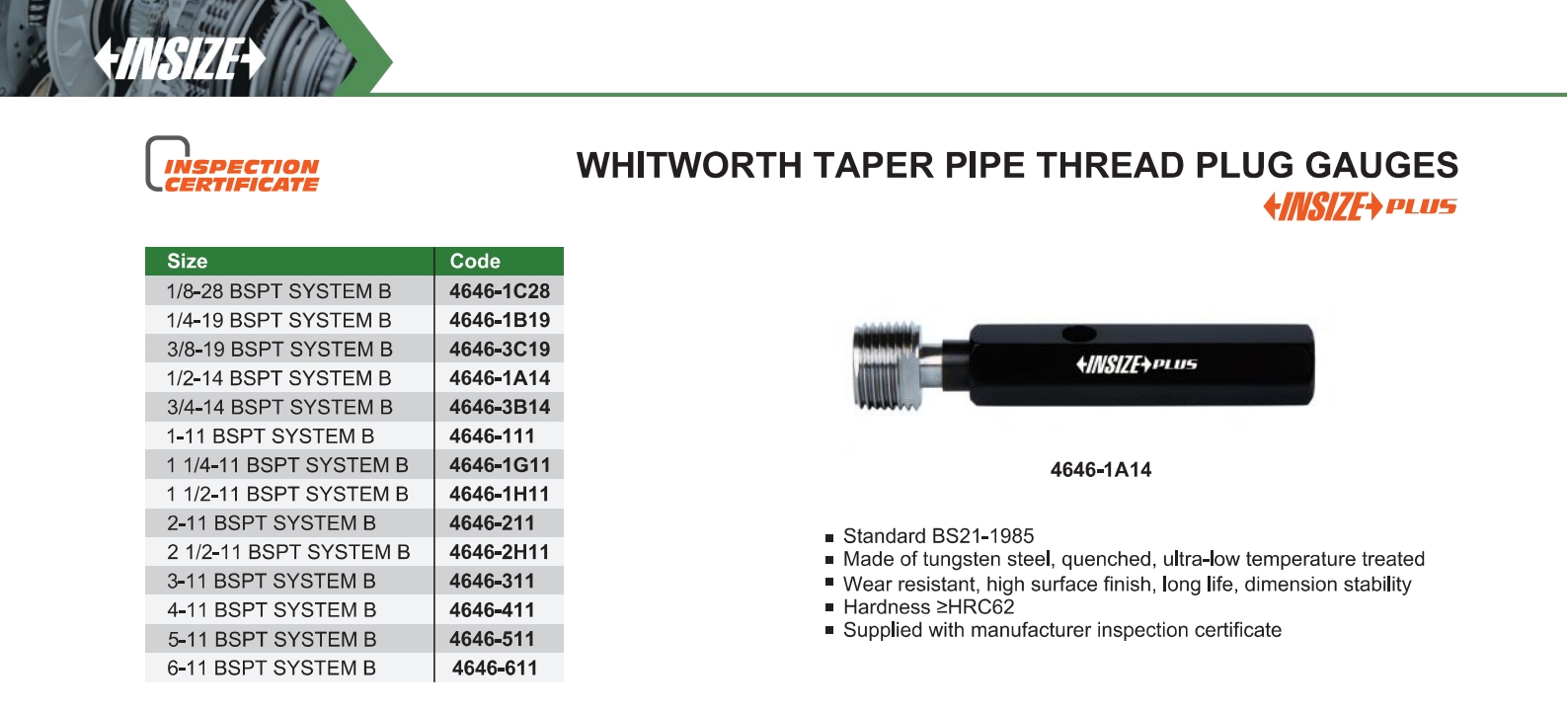

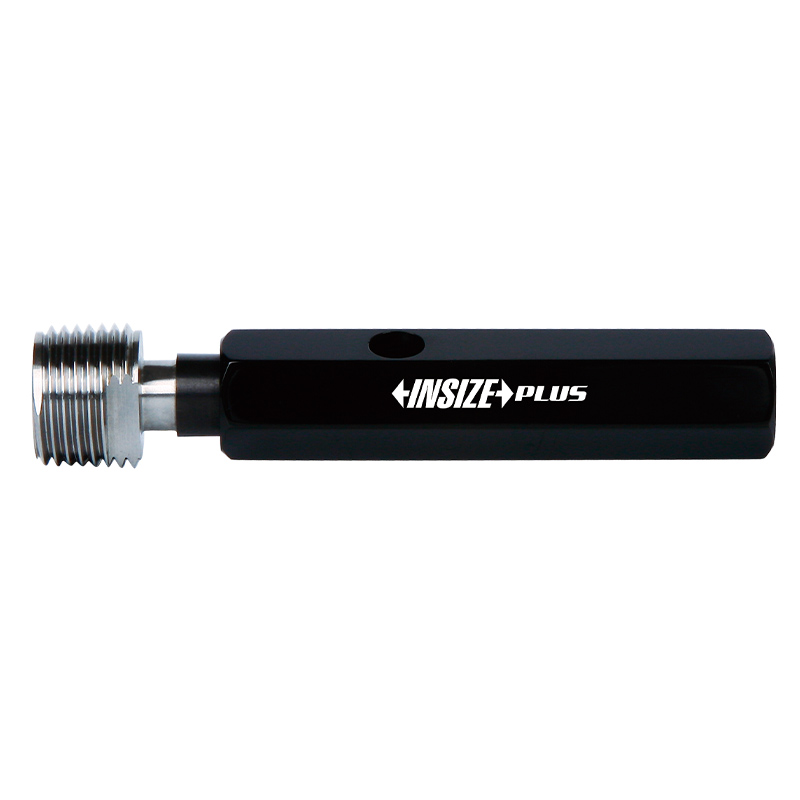

Whitworth Taper Pipe Thread Plug Gauges
Code: 4646
Standard BS21-1985
Made of tungsten steel, quenched, ultra-low temperature treated
Wear resistant, high surface finish, long life, dimension stability
Hardness ≥HRC62
Supplied with manufacturer inspection certificate
| Code | Size |
|---|---|
| 4646-1C28 | 1/8-28 BSPT SYSTEM B |
| 4646-1B19 | 1/4-19 BSPT SYSTEM B |
| 4646-3C19 | 3/8-19 BSPT SYSTEM B |
| 4646-1A14 | 1/2-14 BSPT SYSTEM B |
| 4646-3B14 | 3/4-14 BSPT SYSTEM B |
| 4646-111 | 1-11 BSPT SYSTEM B |
| 4646-1G11 | 1 1/4-11 BSPT SYSTEM B |
| 4646-1H11 | 1 1/2-11 BSPT SYSTEM B |
| 4646-211 | 2-11 BSPT SYSTEM B |
| 4646-2H11 | 2 1/2-11 BSPT SYSTEM B |
| 4646-311 | 3-11 BSPT SYSTEM B |
| 4646-411 | 4-11 BSPT SYSTEM B |
| 4646-511 | 5-11 BSPT SYSTEM B |
| 4646-611 | 6-11 BSPT SYSTEM B |
